路由器的 NAT 地址转换

NAT配置及路由选择的实例说明

路由器的 NAT 地址转换

局域网内多层路由器串联,每经过一次家用路由器(非桥接),NAT 地址就会转换一次：每一层路由器都会做一次私网→上一级网段的地址(网关地址)转换：IP、端口都会变

一、先搞懂：家用路由器默认都开 NAT
家用路由的 WAN 口接上级网络,LAN 口接下一级设备 / 下级路由：
LAN 侧：私网 IP（192.168.x.x / 10.x.x.x / 172.16–31）
WAN 侧：拿到上级分配的 IP
只要是路由模式、不是桥接,就一定做 NAT 地址转换

二、举个实例：3 层路由器串联
设备 → 路由 A → 路由 B → 路由 C → 光猫 → 外网
1. 设备内网 IP
192.168.1.10
2. 经过路由 A(第一次 NAT)
路由 A 把 192.168.1.10 转换成 路由 A 的 WAN 口 IP：比如变成 192.168.2.5:随机端口
3. 经过路由 B(第二次 NAT)
路由 B 再把 192.168.2.5 转换成 路由 B 的 WAN 口 IP：比如变成 192.168.3.6:新随机端口
4. 经过路由 C(第三次 NAT)
再转一次,换成路由 C 的 WAN 口 IP + 新端口
5. 最后出外网
再经过光猫 NAT，变成公网 IP
小结：每过一台局域网普通路由器,就多一次 NAT：换一次 IP、换一次端口

三、两种特殊情况不重复转换
下级路由器改成「桥接模式 / AP 模式」只做转发(当成交换机使用),不做 NAT、不分配 DHCP,地址不转换,相当于一根网线延长
路由器之间用静态路由、纯三层路由(关闭 NAT)全程路由转发,无 NAT,IP 从头到尾不变,企业网络常用

四、多层 NAT 带来的问题
端口映射只能在最外层路由生效,内层做了也没用
P2P、游戏联机、远程访问很难打通
网络延迟略增加,多层 NAT 损耗
排查抓包更复杂,每一层看到的源 IP 都不一样

五、简单记忆
家用路由默认串联 = 每层都 NAT,地址层层转换
改成 AP / 桥接 = 不做 NAT,地址不变

六、总结
1. 正常不做 NAT 的路由器只转发、不改 IP：源 IP 从头到尾永远不变,目的 IP 从头到尾永远不变,只有 MAC 地址每过一跳路由器就变一次,IP 负责端到端、MAC 负责下一跳

2. 全过程例子
内网电脑 → 路由 A(NAT) → 路由 B(NAT) → 路由 C(NAT) → 光猫(NAT) → 运营商网络 → 外网服务器
[电脑发包源地址：192.168.1.10:xxx] 转换为 [路由 A：192.168.2.5:xxx] 转换为 [路由 B：192.168.3.6:xxx] 转换为 [路由 C：172.16.2.5:xxx] 转换为 [光猫：110.x.x.x:xxx(公网地址)]
从光猫这个互联网接入路由器上源地址变成公网地址后,后面经过的运营商骨干路由器、城域网路由器,一路到外网服务器只做普通路由转发,不做 NAT,所以不会再改你的源 IP,即源 IP 永远固定是这个公网 IP

NAT配置及路由选择的实例说明

一、未配置NAT表
1、网络配置
#虚拟机A(192.168.2.111)
~# ifconfig ens33
ens33: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.220.108  netmask 255.255.255.0  broadcast 192.168.220.255
        inet6 fe80::20c:29ff:fed1:462e  prefixlen 64  scopeid 0x20<link>
        ether 00:0c:29:d1:46:2e  txqueuelen 1000  (Ethernet)
        RX packets 3388  bytes 391690 (382.5 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 865  bytes 129270 (126.2 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

~# route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         192.168.220.2   0.0.0.0         UG    0      0        0 ens33
192.168.220.0   0.0.0.0         255.255.255.0   U     0      0        0 ens33
~# curl www.baidu.com &>/dev/null && echo $?
0

VMware点击虚拟机-设置-硬件-添加网络适配器[NAT模式]-确定(虚拟机AB分别添加网卡ens37)
~# ps -ef|grep dhclient|grep -v grep &>/dev/null && bash -c "systemctl stop NetworkManager;systemctl disable NetworkManager"  #停止dhclient自启动,脱离NetworkManager服务
~# iptables -F
~# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
    link/ether 00:0c:29:d1:46:2e brd ff:ff:ff:ff:ff:ff
    inet 192.168.220.108/24 brd 192.168.220.255 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::20c:29ff:fed1:462e/64 scope link
       valid_lft forever preferred_lft forever
3: ens37: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
    link/ether 00:0c:29:d1:46:38 brd ff:ff:ff:ff:ff:ff
~# ifconfig ens37 192.168.2.111 netmask 255.255.255.0   #分配ip地址.添加路由(route add -net 192.168.2.0 netmask 255.255.255.0 dev ens37)
~# route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         192.168.220.2   0.0.0.0         UG    0      0        0 ens33
192.168.2.0     0.0.0.0         255.255.255.0   U     0      0        0 ens37
192.168.220.0   0.0.0.0         255.255.255.0   U     0      0        0 ens33

#虚拟机B(192.168.2.110)
VMware点击虚拟机-设置-硬件-添加网络适配器[NAT模式]-确定(虚拟机AB分别添加网卡ens37)
~# ps -ef|grep dhclient|grep -v grep &>/dev/null && bash -c "systemctl stop NetworkManager;systemctl disable NetworkManager"  #停止dhclient自启动,脱离NetworkManager服务
~# iptables -F
~# ifconfig ens33 down
~# ifconfig ens37 192.168.2.110 netmask 255.255.255.0   #分配ip地址.添加路由(route add -net 192.168.2.0 netmask 255.255.255.0 dev ens37)
~# route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
192.168.2.0     0.0.0.0         255.255.255.0   U     0      0        0 ens37
~# route add default gw 192.168.2.111 dev ens37   #添加192.168.2.111为默认网关
~# route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         192.168.2.111   0.0.0.0         UG    0      0        0 ens37
192.168.2.0     0.0.0.0         255.255.255.0   U     0      0        0 ens37

2、虚拟机A(192.168.2.111)开启转发功能并监测数据包
~# echo 1 >/proc/sys/net/ipv4/ip_forward

3、虚拟机B(192.168.2.110)和虚拟机A(192.168.2.111)执行
~# conntrack -F
~# tcpdump tcp and port 80 -i any -nv &>>/tmp/result.txt &

4.1、虚拟机B(192.168.2.110)执行
~# curl www.baidu.com &>/dev/null && echo $?
0
~# conntrack -p tcp -L
tcp      6 118 TIME_WAIT src=192.168.2.110 dst=183.2.172.177 sport=58260 dport=80 src=183.2.172.177 dst=192.168.2.110 sport=80 dport=58260 [ASSURED] mark=0 use=1
conntrack v1.4.4 (conntrack-tools): 1 flow entries have been shown.
~# cat /tmp/result.txt
tcpdump: listening on any, link-type LINUX_SLL (Linux cooked), capture size 262144 bytes
15:44:50.911154 IP (tos 0x0, ttl 64, id 16249, offset 0, flags [DF], proto TCP (6), length 60)
    192.168.2.110.60860 > 183.2.172.177.http: Flags [S], cksum 0x26f9 (incorrect -> 0x1a8c), seq 1691881617, win 29200, options [mss 1460,sackOK,TS val 20656104 ecr 0,nop,wscale 7], length 0
15:44:50.945208 IP (tos 0x0, ttl 127, id 630, offset 0, flags [none], proto TCP (6), length 44)
    183.2.172.177.http > 192.168.2.110.60860: Flags [S.], cksum 0x7b94 (correct), seq 1278102305, ack 1691881618, win 64240, options [mss 1460], length 0
15:44:50.945258 IP (tos 0x0, ttl 64, id 16250, offset 0, flags [DF], proto TCP (6), length 40)
    192.168.2.110.60860 > 183.2.172.177.http: Flags [.], cksum 0x26e5 (incorrect -> 0x1c32), ack 1, win 29200, length 0
15:44:50.945405 IP (tos 0x0, ttl 64, id 16251, offset 0, flags [DF], proto TCP (6), length 117)
    192.168.2.110.60860 > 183.2.172.177.http: Flags [P.], cksum 0x2732 (incorrect -> 0xd8f7), seq 1:78, ack 1, win 29200, length 77: HTTP, length: 77
	GET / HTTP/1.1
	User-Agent: curl/7.29.0
	Host: www.baidu.com
	Accept: */*

15:44:50.946345 IP (tos 0x0, ttl 127, id 631, offset 0, flags [none], proto TCP (6), length 40)
    183.2.172.177.http > 192.168.2.110.60860: Flags [.], cksum 0x9304 (correct), ack 78, win 64240, length 0
15:44:50.975036 IP (tos 0x0, ttl 127, id 632, offset 0, flags [none], proto TCP (6), length 829)
    183.2.172.177.http > 192.168.2.110.60860: Flags [P.], cksum 0xcfed (correct), seq 1:790, ack 78, win 64240, length 789: HTTP, length: 789
	HTTP/1.1 200 OK
	Cache-Control: private, no-cache, no-store, proxy-revalidate, no-transform
	Content-Length: 2381
	Content-Type: text/html
	Pragma: no-cache
	Server: bfe
	Set-Cookie: BDORZ=27315; max-age=86400; domain=.baidu.com; path=/
	Date: Wed, 29 Apr 2026 07:44:50 GMT

4.2、虚拟机A(192.168.2.111)执行
~# conntrack -p tcp -L   #通过虚拟机A(192.168.2.111)转发的(src=192.168.2.110)数据包本机不会接收,所以状态是UNREPLIED
tcp      6 114 SYN_SENT src=192.168.2.110 dst=183.2.172.177 sport=58260 dport=80 [UNREPLIED] src=183.2.172.177 dst=192.168.2.110 sport=80 dport=58260 mark=0 use=1
conntrack v1.4.4 (conntrack-tools): 1 flow entries have been shown.
~# cat /tmp/result.txt   #未捕获到相关数据包,虽然启用了NAT转发功能但是未配置NAT表(路由器的转发自动做地址映射,linux的转发功能需要配置NAT表手动做地址映射!!!!!!)
tcpdump: listening on any, link-type LINUX_SLL (Linux cooked), capture size 262144 bytes

5、分析总结
虚拟机B(192.168.2.110)执行curl www.baidu.com数据包：192.168.2.110:58260→183.2.172.177:80,虚拟机B(192.168.2.110)去往183.2.172.177地址的数据包交给网关192.168.2.111进行转发.这条数据包经过主机192.168.2.111到虚拟网络VMnet8(192.168.220.2)映射为无线网卡地址:端口后继续传输!
此环境下在没有配置NAT表(iptables -t nat -A POSTROUTING -s 192.168.2.110/32 -j SNAT --to 192.168.220.108)的情况下,从结果来看虚拟机B(192.168.2.110)访问成功,但是未明白192.168.2.110这个地址在虚拟网络VMnet8(192.168.220.2)这个路由器上是如何返回到主机虚拟机B(192.168.2.110)的[因为虚拟网络VMnet8(192.168.220.2)没有192.168.2.0/24网段的路由].因此在网关的虚拟机A(192.168.2.111)上配置NAT表(iptables -t nat -A POSTROUTING -s 192.168.2.110/32 -j SNAT --to 192.168.220.108)完成源地址192.168.2.110:xxx转换为192.168.220.108:xxx

6、说明

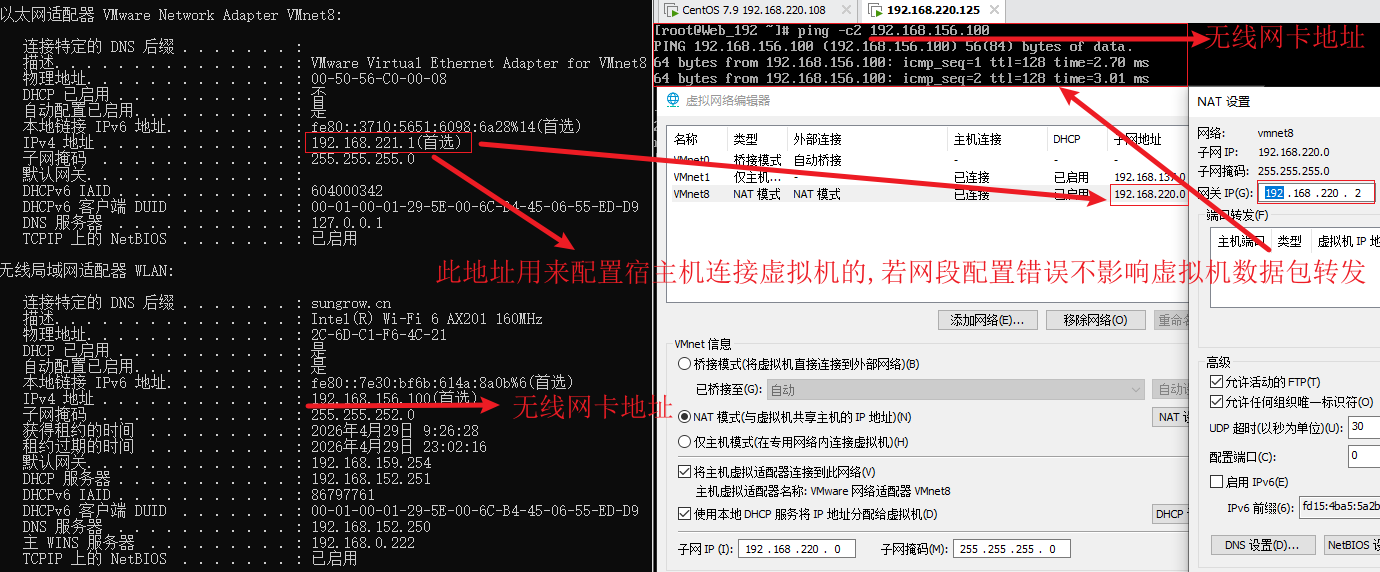

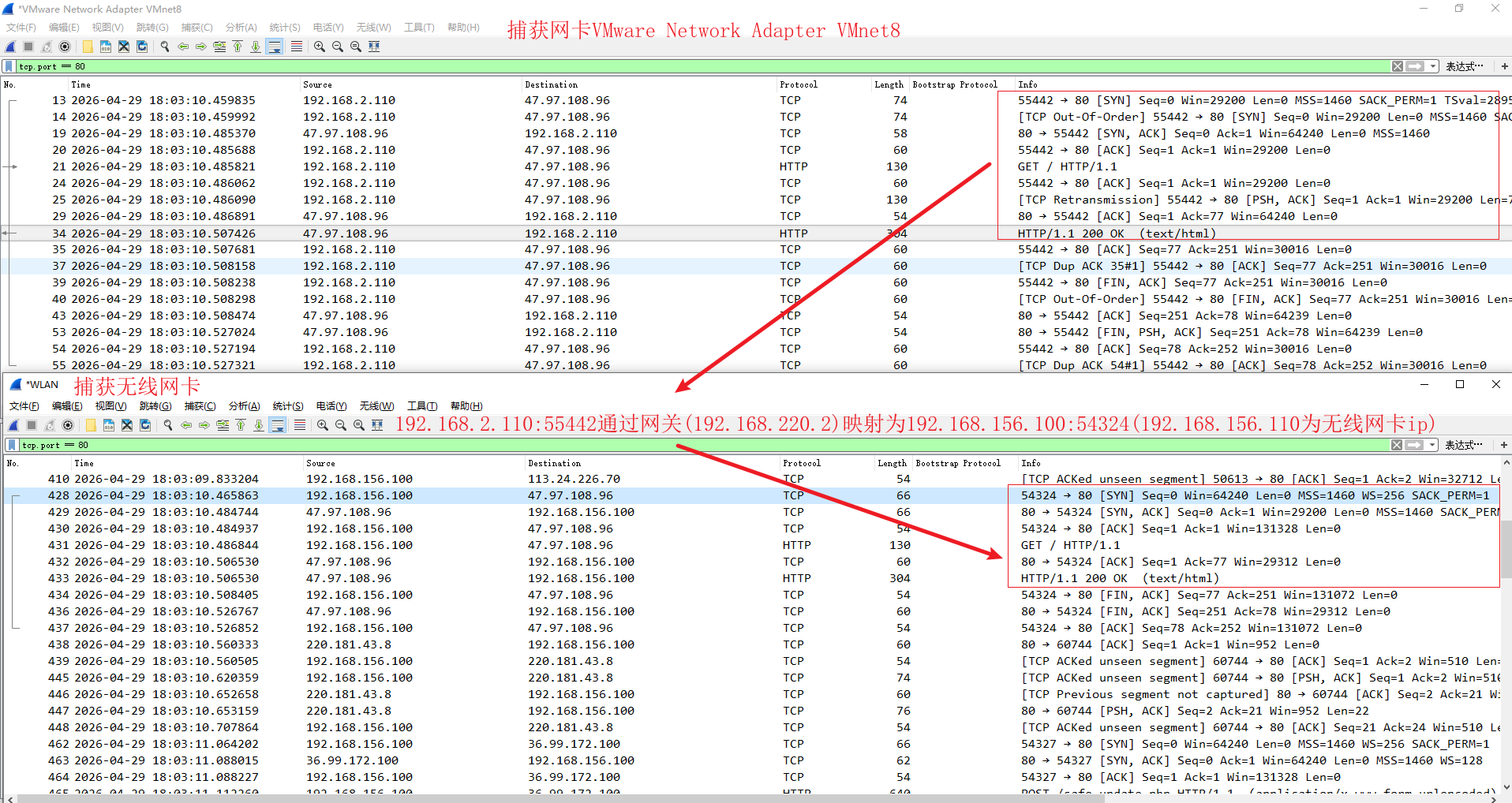

虚拟网络VMnet8和宿主机无线网卡配置及报文见下方图1图2

二、配置NAT表
1、虚拟机A(192.168.2.111)执行
~# iptables -t nat -A POSTROUTING -s 192.168.2.110/32 -j SNAT --to 192.168.220.108

2、虚拟机B(192.168.2.110)和虚拟机A(192.168.2.111)执行
~# ps -ef|grep tcpdump|grep -v grep|awk '{print $2}'|xargs -n 1 kill -9
~# rm  -rf /tmp/result.txt
~# tcpdump tcp and port 80 -i any -nv &>/tmp/result.txt &

3、虚拟机B(192.168.2.110)执行
~# curl www.baidu.com &>/dev/null && echo $?
0
~# conntrack -p tcp -L
tcp      6 51 TIME_WAIT src=192.168.2.110 dst=183.2.172.177 sport=60886 dport=80 src=183.2.172.177 dst=192.168.2.110 sport=80 dport=60886 [ASSURED] mark=0 use=1
conntrack v1.4.4 (conntrack-tools): 1 flow entries have been shown.
~# cat /tmp/result.txt
tcpdump: listening on any, link-type LINUX_SLL (Linux cooked), capture size 262144 bytes
17:29:35.286545 IP (tos 0x0, ttl 64, id 45035, offset 0, flags [DF], proto TCP (6), length 60)
    192.168.2.110.60886 > 183.2.172.177.http: Flags [S], cksum 0x26f9 (incorrect -> 0x73b1), seq 2586247354, win 29200, options [mss 1460,sackOK,TS val 52080465 ecr 0,nop,wscale 7], length 0
17:29:35.318411 IP (tos 0x0, ttl 127, id 1374, offset 0, flags [none], proto TCP (6), length 44)
    183.2.172.177.http > 192.168.2.110.60886: Flags [S.], cksum 0x29ee (correct), seq 1293973059, ack 2586247355, win 64240, options [mss 1460], length 0
17:29:35.318480 IP (tos 0x0, ttl 64, id 45036, offset 0, flags [DF], proto TCP (6), length 40)
    192.168.2.110.60886 > 183.2.172.177.http: Flags [.], cksum 0x26e5 (incorrect -> 0xca8b), ack 1, win 29200, length 0
17:29:35.318683 IP (tos 0x0, ttl 64, id 45037, offset 0, flags [DF], proto TCP (6), length 117)
    192.168.2.110.60886 > 183.2.172.177.http: Flags [P.], cksum 0x2732 (incorrect -> 0x8751), seq 1:78, ack 1, win 29200, length 77: HTTP, length: 77
	GET / HTTP/1.1
	User-Agent: curl/7.29.0
	Host: www.baidu.com
	Accept: */*

17:29:35.319890 IP (tos 0x0, ttl 127, id 1375, offset 0, flags [none], proto TCP (6), length 40)
    183.2.172.177.http > 192.168.2.110.60886: Flags [.], cksum 0x415e (correct), ack 78, win 64240, length 0
17:29:35.350975 IP (tos 0x0, ttl 127, id 1376, offset 0, flags [none], proto TCP (6), length 829)
    183.2.172.177.http > 192.168.2.110.60886: Flags [P.], cksum 0x7440 (correct), seq 1:790, ack 78, win 64240, length 789: HTTP, length: 789
	HTTP/1.1 200 OK
	Cache-Control: private, no-cache, no-store, proxy-revalidate, no-transform
	Content-Length: 2381
	Content-Type: text/html
	Pragma: no-cache
	Server: bfe
	Set-Cookie: BDORZ=27315; max-age=86400; domain=.baidu.com; path=/
	Date: Thu, 30 Apr 2026 09:29:35 GMT

	<!DOCTYPE html>

4、虚拟机A(192.168.2.111)执行
~# conntrack -p tcp -L
tcp      6 51 TIME_WAIT src=192.168.2.110 dst=183.2.172.177 sport=60886 dport=80 src=183.2.172.177 dst=192.168.220.108 sport=80 dport=60886 [ASSURED] mark=0 use=1
conntrack v1.4.4 (conntrack-tools): 1 flow entries have been shown.
~# cat /tmp/result.txt
tcpdump: listening on any, link-type LINUX_SLL (Linux cooked), capture size 262144 bytes
17:29:35.288249 IP (tos 0x0, ttl 64, id 45035, offset 0, flags [DF], proto TCP (6), length 60)
    192.168.2.110.60886 > 183.2.172.177.http: Flags [S], cksum 0x73b1 (correct), seq 2586247354, win 29200, options [mss 1460,sackOK,TS val 52080465 ecr 0,nop,wscale 7], length 0
17:29:35.288286 IP (tos 0x0, ttl 63, id 45035, offset 0, flags [DF], proto TCP (6), length 60)
    192.168.220.108.60886 > 183.2.172.177.http: Flags [S], cksum 0x99b2 (correct), seq 2586247354, win 29200, options [mss 1460,sackOK,TS val 52080465 ecr 0,nop,wscale 7], length 0
17:29:35.319703 IP (tos 0x0, ttl 128, id 1374, offset 0, flags [none], proto TCP (6), length 44)
    183.2.172.177.http > 192.168.220.108.60886: Flags [S.], cksum 0x4fef (correct), seq 1293973059, ack 2586247355, win 64240, options [mss 1460], length 0
17:29:35.319734 IP (tos 0x0, ttl 127, id 1374, offset 0, flags [none], proto TCP (6), length 44)
    183.2.172.177.http > 192.168.2.110.60886: Flags [S.], cksum 0x29ee (correct), seq 1293973059, ack 2586247355, win 64240, options [mss 1460], length 0
17:29:35.320061 IP (tos 0x0, ttl 64, id 45036, offset 0, flags [DF], proto TCP (6), length 40)
    192.168.2.110.60886 > 183.2.172.177.http: Flags [.], cksum 0xca8b (correct), ack 1, win 29200, length 0
17:29:35.320082 IP (tos 0x0, ttl 63, id 45036, offset 0, flags [DF], proto TCP (6), length 40)
    192.168.220.108.60886 > 183.2.172.177.http: Flags [.], cksum 0xf08c (correct), ack 1, win 29200, length 0
17:29:35.320244 IP (tos 0x0, ttl 64, id 45037, offset 0, flags [DF], proto TCP (6), length 117)
    192.168.2.110.60886 > 183.2.172.177.http: Flags [P.], cksum 0x8751 (correct), seq 1:78, ack 1, win 29200, length 77: HTTP, length: 77
	GET / HTTP/1.1
	User-Agent: curl/7.29.0
	Host: www.baidu.com
	Accept: */*

17:29:35.320250 IP (tos 0x0, ttl 63, id 45037, offset 0, flags [DF], proto TCP (6), length 117)
    192.168.220.108.60886 > 183.2.172.177.http: Flags [P.], cksum 0xad52 (correct), seq 1:78, ack 1, win 29200, length 77: HTTP, length: 77
	GET / HTTP/1.1
	User-Agent: curl/7.29.0
	Host: www.baidu.com
	Accept: */*

17:29:35.321268 IP (tos 0x0, ttl 128, id 1375, offset 0, flags [none], proto TCP (6), length 40)
    183.2.172.177.http > 192.168.220.108.60886: Flags [.], cksum 0x675f (correct), ack 78, win 64240, length 0
17:29:35.321274 IP (tos 0x0, ttl 127, id 1375, offset 0, flags [none], proto TCP (6), length 40)
    183.2.172.177.http > 192.168.2.110.60886: Flags [.], cksum 0x415e (correct), ack 78, win 64240, length 0
17:29:35.352328 IP (tos 0x0, ttl 128, id 1376, offset 0, flags [none], proto TCP (6), length 829)
    183.2.172.177.http > 192.168.220.108.60886: Flags [P.], cksum 0x9a41 (correct), seq 1:790, ack 78, win 64240, length 789: HTTP, length: 789
	HTTP/1.1 200 OK
	Cache-Control: private, no-cache, no-store, proxy-revalidate, no-transform
	Content-Length: 2381
	Content-Type: text/html
	Pragma: no-cache
	Server: bfe
	Set-Cookie: BDORZ=27315; max-age=86400; domain=.baidu.com; path=/
	Date: Thu, 30 Apr 2026 09:29:35 GMT

	<!DOCTYPE html>
17:29:35.352358 IP (tos 0x0, ttl 127, id 1376, offset 0, flags [none], proto TCP (6), length 829)
    183.2.172.177.http > 192.168.2.110.60886: Flags [P.], cksum 0x7440 (correct), seq 1:790, ack 78, win 64240, length 789: HTTP, length: 789
	HTTP/1.1 200 OK
	Cache-Control: private, no-cache, no-store, proxy-revalidate, no-transform
	Content-Length: 2381
	Content-Type: text/html
	Pragma: no-cache
	Server: bfe
	Set-Cookie: BDORZ=27315; max-age=86400; domain=.baidu.com; path=/
	Date: Thu, 30 Apr 2026 09:29:35 GMT

	<!DOCTYPE html>

5、说明

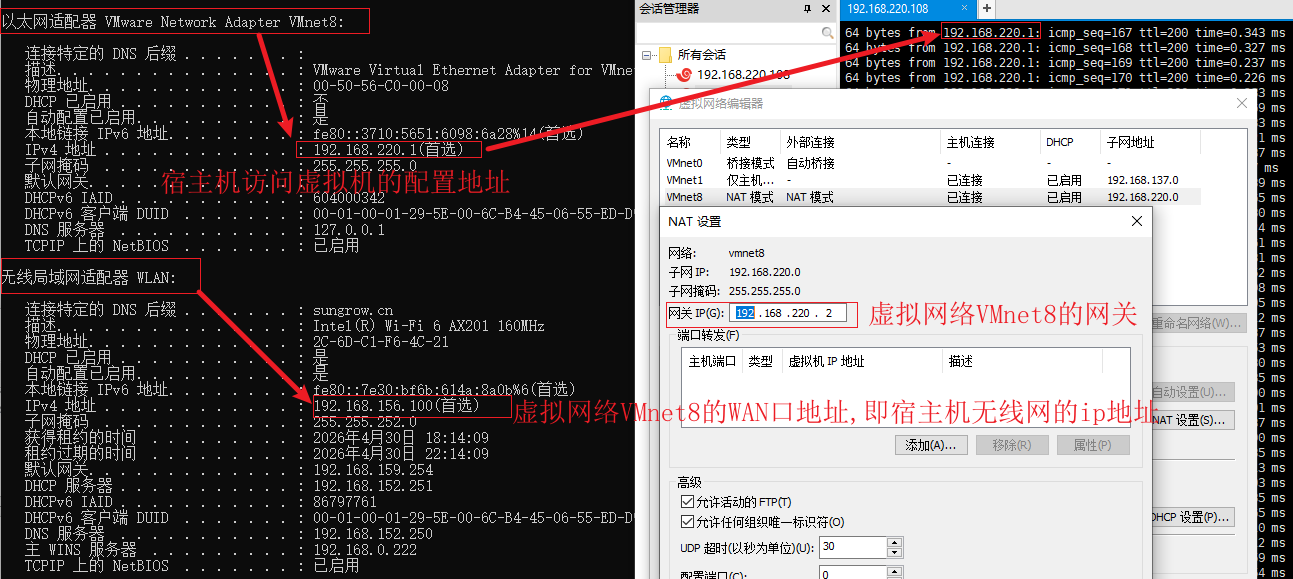

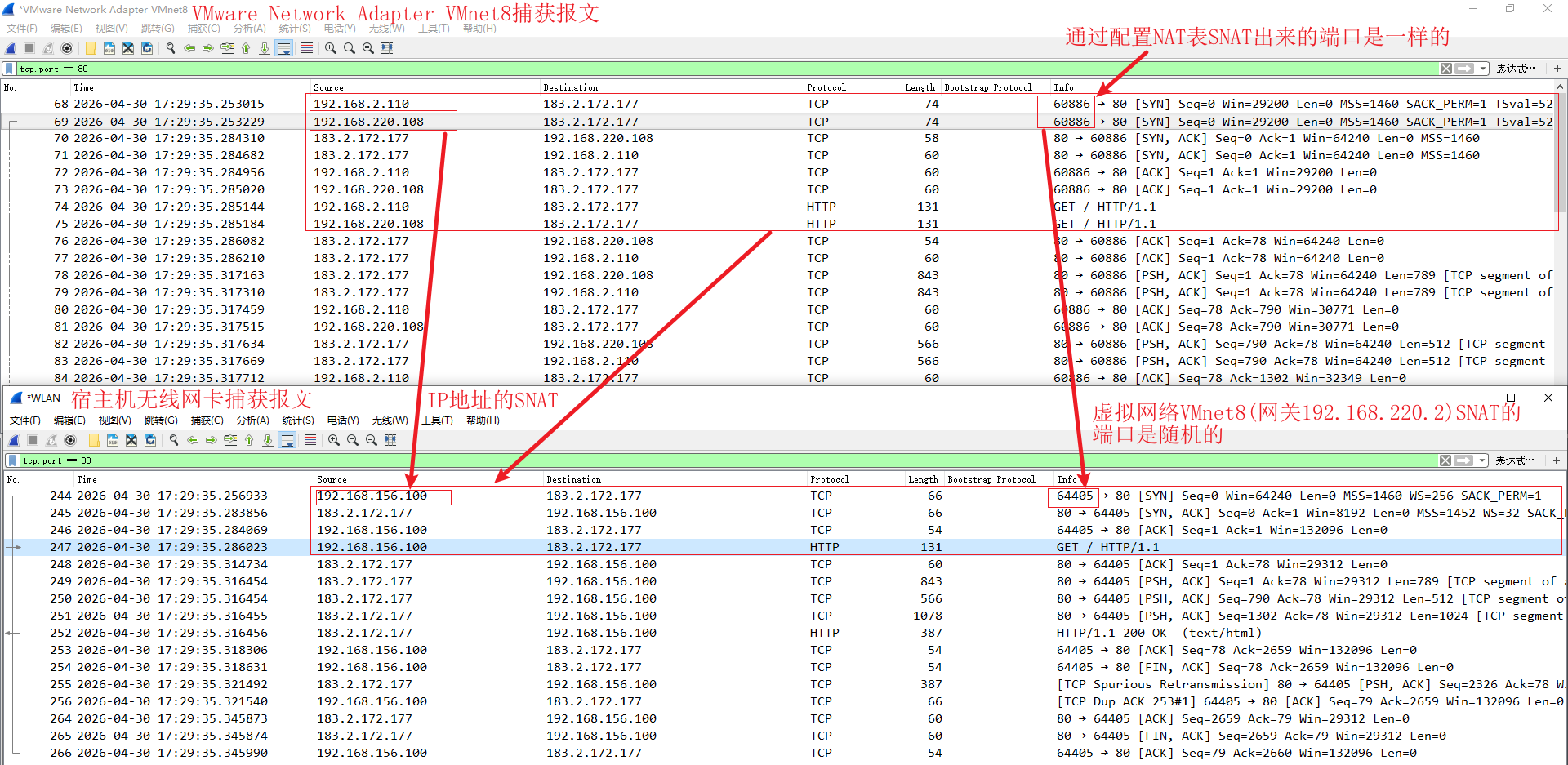

虚拟网络VMnet8和宿主机无线网卡配置及报文见下方图3图4


 图1


图2


图3


图4

# 网络
Logo
openEuler 社区

openEuler 是由开放原子开源基金会孵化的全场景开源操作系统项目，面向数字基础设施四大核心场景（服务器、云计算、边缘计算、嵌入式），全面支持 ARM、x86、RISC-V、loongArch、PowerPC、SW-64 等多样性计算架构

更多推荐

IP&&端口&&本机回环ip&&局域网ip&&网段掩码&&TCP&&UDP&&Socket

简单理解为：IP 地址负责找到“哪台设备/哪块网卡”，端口负责找到这台设备上的“哪个程序/服务”。一台电脑上可能同时运行很多网络服务：浏览器代理服务数据库服务网页服务器机器人控制程序摄像头图像服务ROS 通信节点这些程序都在同一台电脑上，光靠 IP 地址还不够区分，所以需要端口号。因此127.0.0.1:7890就代表：访问本机上监听 7890 端口的那个程序。其中，127.0.0.1 永远代表“

avatar openEuler 社区
cover

罗福莉 3.5 小时深度访谈：AI 已经不是“大模型战争”，而是 Agent 操作系统战争

avatar openEuler 社区
cover

第三章：数据窃听与中间人攻击 —— 深入网络通信

avatar openEuler 社区
