一、问题：3套监控各发各的告警，值班快疯了

有一个客户的运维体系优化项目，情况是这样：

• Zabbix：管着200台物理服务器+50台网络设备，告警发到企业微信群A
• Prometheus+Alertmanager：管着K8s集群+中间件，告警发到企业微信群B
• 阿里云云监控CMS：管着30台ECS+RDS+SLB，告警发到钉钉群

值班人的日常：每天早上打开3个群，逐条看告警；同一台机器在Zabbix和云监控里各报了一遍（一个报CPU高、一个报ECS异常），但没人知道是同一件事；核心交换机Down了之后Zabbix报了交换机告警，Prometheus报了依赖这台交换机的服务超时，云监控报了SLB健康检查失败——3条告警分散在3个群里，值班人花了20分钟才意识到"这是一件事"。

核心观点：多监控工具并存不是问题——没有统一的事件入口才是问题。不管用几套监控工具，告警必须汇入同一个事件中心做归一化处理。

---

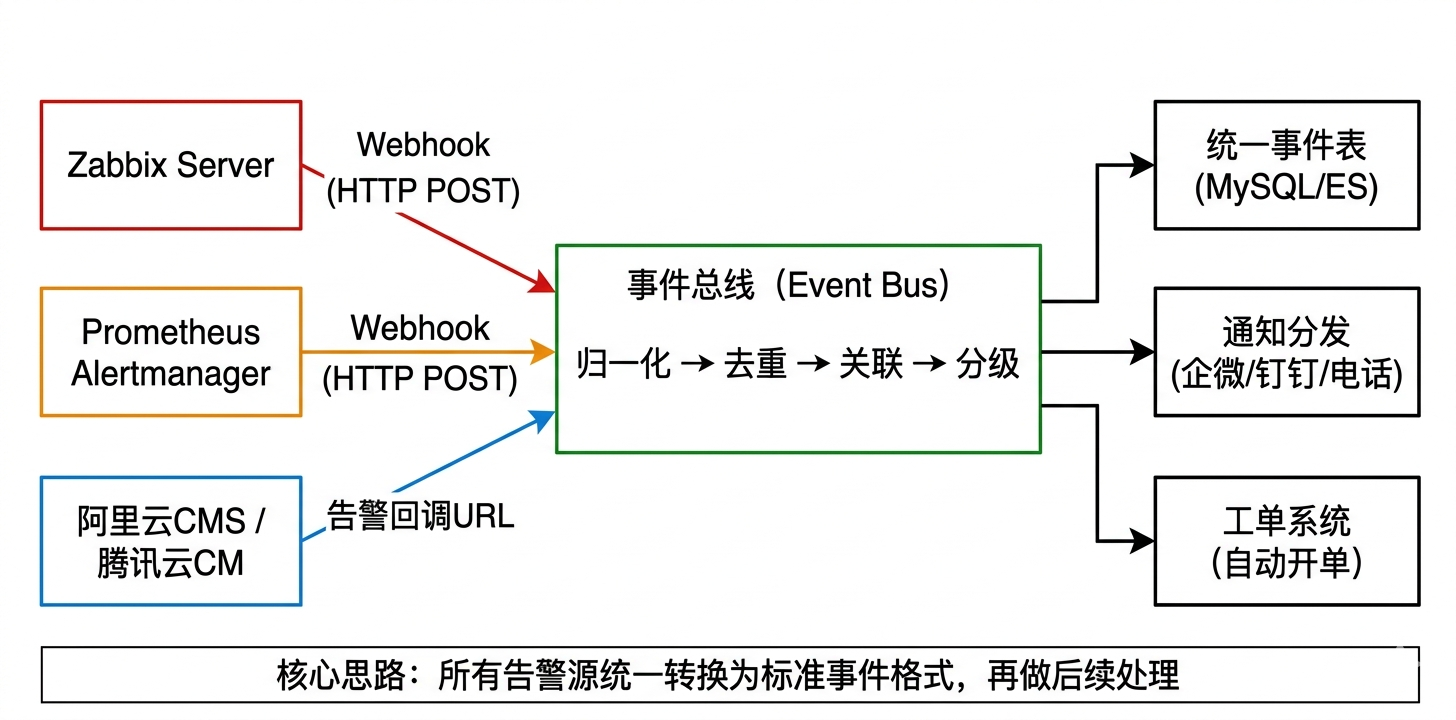

二、整体架构

关键设计原则：

• 每个告警源只负责"发Webhook到事件总线"
• 事件总线负责"归一化→去重→关联→分级→分发"
• 下游只对接事件总线，不直接对接告警源

---

三、各告警源Webhook对接配置

3.1 Zabbix Webhook配置

Zabbix 5.0+支持Webhook类型的告警媒介：

步骤1：管理 → 报警媒介类型 → 创建

// Zabbix Webhook脚本（JavaScript）
// 管理 → 报警媒介类型 → 新建 → 类型选Webhook

var params = JSON.parse(value);

var req = new HttpRequest();
req.addHeader('Content-Type: application/json');

var payload = {
    source: "zabbix",
    alert_id: params.event_id,
    status: params.event_status,  // "PROBLEM" or "RESOLVED"
    severity: params.trigger_severity,  // "Disaster"/"High"/"Average"...
    host: params.host_name,
    host_ip: params.host_ip,
    alert_name: params.trigger_name,
    description: params.trigger_description,
    timestamp: params.event_time,
    tags: params.event_tags,  // "app:mysql,env:prod" 格式
    event_url: params.zabbix_url + "/tr_events.php?triggerid=" + params.trigger_id
};

var resp = req.post(
    "http://event-bus:8080/api/v1/alerts/ingest",
    JSON.stringify(payload)
);

if (req.getStatus() !== 200) {
    throw "Event bus responded with: " + resp;
}

return "OK";

步骤2：配置参数映射（在Webhook参数里配置）

参数名	值（Zabbix宏）
event_id	{EVENT.ID}
event_status	{EVENT.VALUE}
trigger_severity	{TRIGGER.SEVERITY}
host_name	{HOST.NAME}
host_ip	{HOST.IP}
trigger_name	{TRIGGER.NAME}
trigger_description	{TRIGGER.DESCRIPTION}
event_time	{EVENT.DATE} {EVENT.TIME}
event_tags	{EVENT.TAGS}
trigger_id	{TRIGGER.ID}
zabbix_url	http://zabbix.internal

步骤3：创建动作绑定

管理 → 动作 → 触发器动作 → 新建：

• 条件：触发器严重性 >= “警告”
• 操作：发送消息 → 媒介类型选上面的Webhook → 发给"Event Bus"用户组

3.2 Prometheus Alertmanager Webhook配置

Alertmanager原生支持webhook_configs：

# alertmanager.yml
route:
  receiver: 'event-bus'
  group_by: ['alertname', 'instance']
  group_wait: 30s
  group_interval: 5m
  repeat_interval: 4h

  routes:
    # 所有告警都转发到事件总线
    - match_re:
        alertname: '.+'
      receiver: 'event-bus'
      continue: true  # continue=true: 转发后还可以走其他receiver（如直接发企微作为备份）

receivers:
  - name: 'event-bus'
    webhook_configs:
      - url: 'http://event-bus:8080/api/v1/alerts/ingest'
        send_resolved: true
        http_config:
          bearer_token: 'your-api-token'

Alertmanager发出的Webhook数据结构（固定格式，不可自定义）：

{
  "version": "4",
  "groupKey": "{}:{alertname=\"NodeHighCPU\"}",
  "status": "firing",
  "receiver": "event-bus",
  "alerts": [
    {
      "status": "firing",
      "labels": {
        "alertname": "NodeHighCPU",
        "instance": "192.168.1.10:9100",
        "severity": "warning",
        "job": "node"
      },
      "annotations": {
        "summary": "CPU使用率超85%: 192.168.1.10",
        "description": "CPU使用率 87.3%，持续超过10分钟"
      },
      "startsAt": "2026-05-19T08:30:00.000Z",
      "endsAt": "0001-01-01T00:00:00Z",
      "generatorURL": "http://prometheus:9090/graph?g0.expr=..."
    }
  ]
}

3.3 阿里云云监控告警回调

在阿里云云监控控制台配置告警联系人组时，可以设置"告警回调URL"：

路径：云监控 → 报警服务 → 报警联系人 → 创建报警联系人组 → 填写Webhook地址

回调URL: http://event-bus.yourcompany.com:8080/api/v1/alerts/ingest

阿里云CMS回调的数据格式：

{
  "alertName": "ECS_CPU_utilization",
  "alertState": "ALERT",
  "curValue": "92.5",
  "dimensions": "{\"instanceId\":\"i-bp1234567890\",\"userId\":\"1234567890\"}",
  "expression": "Average(CPUUtilization)>85",
  "instanceName": "prod-web-01",
  "metricName": "CPUUtilization",
  "metricProject": "acs_ecs_dashboard",
  "namespace": "acs_ecs_dashboard",
  "preName": "ECS实例CPU使用率过高",
  "regionId": "cn-hangzhou",
  "ruleId": "rule_12345",
  "timestamp": 1716091800000,
  "triggerLevel": "WARN",
  "userId": "1234567890"
}

3.4 腾讯云云监控告警回调

腾讯云CM的配置路径：云监控 → 告警配置 → 通知模板 → 接口回调

回调URL填写事件总线地址，腾讯云的回调格式：

{
  "sessionId": "xxxxxxxx",
  "alarmStatus": "1",
  "alarmType": "metric",
  "alarmObjInfo": {
    "region": "gz",
    "namespace": "qce/cvm",
    "dimensions": "{\"unInstanceId\":\"ins-xxxxx\"}"
  },
  "alarmPolicyInfo": {
    "policyName": "CPU使用率告警",
    "conditions": {
      "metricName": "cpu_usage",
      "metricShowName": "CPU使用率",
      "calcType": ">",
      "calcValue": "85",
      "currentValue": "91.2",
      "calcUnit": "%"
    }
  },
  "firstOccurTime": "2026-05-19 08:30:00",
  "durationTime": 300
}

---

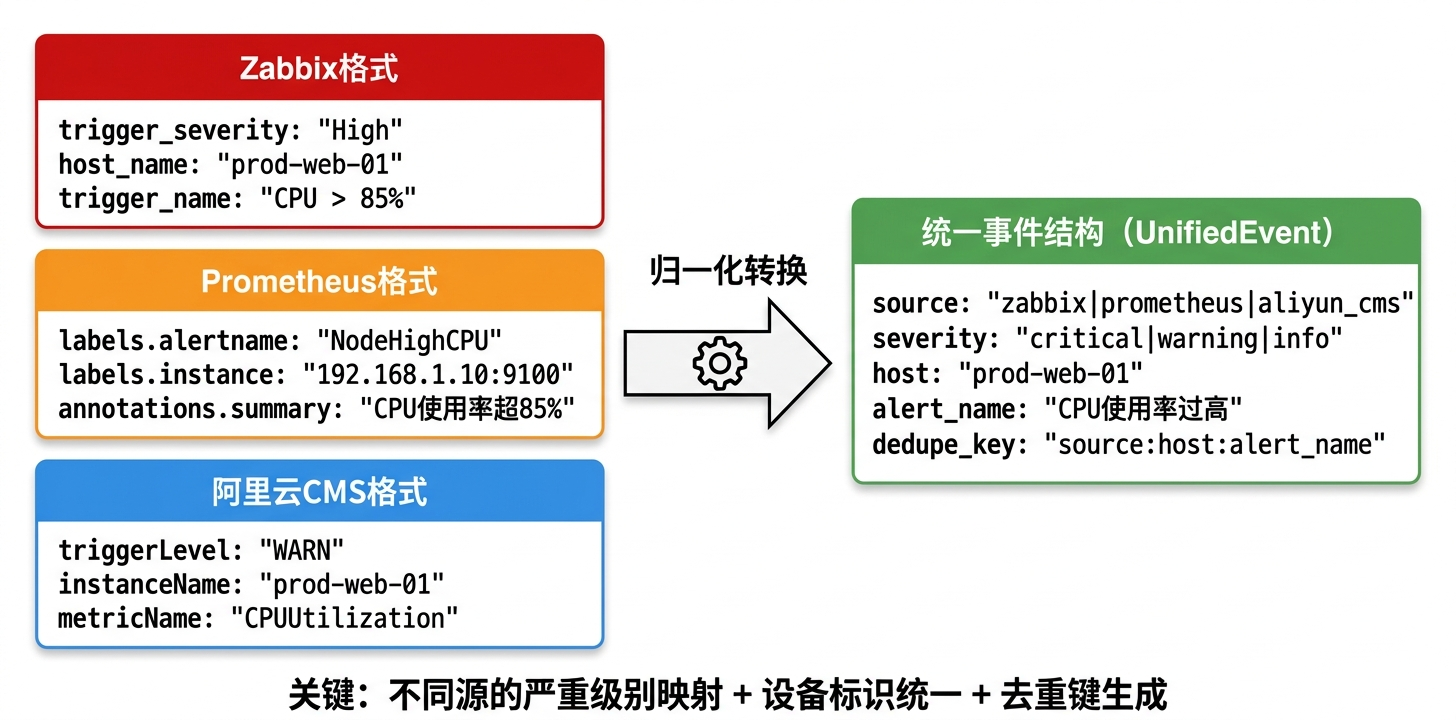

四、事件归一化：把4种格式转成1种

这是整个方案最关键的一步。4个告警源的数据格式完全不同，必须转成统一的事件结构才能做后续处理。

统一事件数据结构（Event Schema）

# event_schema.py
from dataclasses import dataclass, field
from typing import Optional, Dict, List
from datetime import datetime
from enum import Enum


class Severity(Enum):
    CRITICAL = "critical"  # P1
    WARNING = "warning"    # P2
    INFO = "info"          # P3


class EventStatus(Enum):
    FIRING = "firing"
    RESOLVED = "resolved"


@dataclass
class UnifiedEvent:
    """统一事件结构 - 所有告警源归一化后的标准格式"""

    # === 必填字段 ===
    event_id: str                    # 全局唯一ID（UUID）
    source: str                      # 来源：zabbix / prometheus / aliyun_cms / tencent_cm
    source_alert_id: str             # 原始告警ID（用于去重和关联恢复）
    status: EventStatus              # firing / resolved
    severity: Severity               # critical / warning / info

    # === 对象标识 ===
    host: str                        # 主机名或实例名
    host_ip: Optional[str] = None    # IP地址（如果有）
    resource_id: Optional[str] = None  # 云实例ID等

    # === 事件内容 ===
    alert_name: str = ""             # 告警规则名
    summary: str = ""                # 一句话摘要
    description: str = ""            # 详细描述
    metric_name: Optional[str] = None  # 触发指标
    current_value: Optional[str] = None  # 当前值

    # === 时间 ===
    fired_at: datetime = field(default_factory=datetime.now)
    resolved_at: Optional[datetime] = None
    received_at: datetime = field(default_factory=datetime.now)

    # === 扩展 ===
    tags: Dict[str, str] = field(default_factory=dict)
    labels: Dict[str, str] = field(default_factory=dict)
    raw_payload: Dict = field(default_factory=dict)  # 保留原始数据

    # === 处理状态 ===
    dedupe_key: str = ""             # 去重键（source + host + alert_name）
    is_duplicate: bool = False
    correlated_events: List[str] = field(default_factory=list)

各源归一化转换器

# normalizers.py
import uuid
import json
from datetime import datetime
from event_schema import UnifiedEvent, Severity, EventStatus


class ZabbixNormalizer:
    """Zabbix告警 → 统一事件格式"""

    SEVERITY_MAP = {
        "Disaster": Severity.CRITICAL,
        "High": Severity.CRITICAL,
        "Average": Severity.WARNING,
        "Warning": Severity.WARNING,
        "Information": Severity.INFO,
        "Not classified": Severity.INFO,
    }

    def normalize(self, payload: dict) -> UnifiedEvent:
        severity = self.SEVERITY_MAP.get(
            payload.get("severity", ""), Severity.WARNING
        )
        status = (
            EventStatus.RESOLVED
            if payload.get("status") == "RESOLVED"
            else EventStatus.FIRING
        )

        # 解析tags字符串 "app:mysql,env:prod" → dict
        tags = {}
        for tag_str in payload.get("tags", "").split(","):
            if ":" in tag_str:
                k, v = tag_str.split(":", 1)
                tags[k.strip()] = v.strip()

        return UnifiedEvent(
            event_id=str(uuid.uuid4()),
            source="zabbix",
            source_alert_id=payload.get("alert_id", ""),
            status=status,
            severity=severity,
            host=payload.get("host", ""),
            host_ip=payload.get("host_ip"),
            alert_name=payload.get("alert_name", ""),
            summary=payload.get("alert_name", ""),
            description=payload.get("description", ""),
            fired_at=self._parse_time(payload.get("timestamp", "")),
            tags=tags,
            raw_payload=payload,
            dedupe_key=f"zabbix:{payload.get('host', '')}:{payload.get('alert_name', '')}",
        )

    def _parse_time(self, time_str: str) -> datetime:
        try:
            return datetime.strptime(time_str, "%Y.%m.%d %H:%M:%S")
        except (ValueError, TypeError):
            return datetime.now()


class PrometheusNormalizer:
    """Prometheus Alertmanager告警 → 统一事件格式"""

    SEVERITY_MAP = {
        "critical": Severity.CRITICAL,
        "warning": Severity.WARNING,
        "info": Severity.INFO,
    }

    def normalize(self, payload: dict) -> list[UnifiedEvent]:
        """Alertmanager一次可能推送多条告警，返回列表"""
        events = []
        group_status = payload.get("status", "firing")

        for alert in payload.get("alerts", []):
            labels = alert.get("labels", {})
            annotations = alert.get("annotations", {})

            severity = self.SEVERITY_MAP.get(
                labels.get("severity", "warning"), Severity.WARNING
            )
            status = (
                EventStatus.RESOLVED
                if alert.get("status") == "resolved"
                else EventStatus.FIRING
            )

            # 从instance label提取host和IP
            instance = labels.get("instance", "")
            host_ip = instance.split(":")[0] if ":" in instance else instance

            event = UnifiedEvent(
                event_id=str(uuid.uuid4()),
                source="prometheus",
                source_alert_id=f"{labels.get('alertname', '')}_{instance}",
                status=status,
                severity=severity,
                host=labels.get("instance", ""),
                host_ip=host_ip,
                alert_name=labels.get("alertname", ""),
                summary=annotations.get("summary", ""),
                description=annotations.get("description", ""),
                fired_at=self._parse_time(alert.get("startsAt", "")),
                resolved_at=self._parse_time(alert.get("endsAt", "")) if status == EventStatus.RESOLVED else None,
                labels=labels,
                tags={k: v for k, v in labels.items() if k not in ("alertname", "severity")},
                raw_payload=alert,
                dedupe_key=f"prometheus:{instance}:{labels.get('alertname', '')}",
            )
            events.append(event)

        return events

    def _parse_time(self, time_str: str) -> datetime:
        try:
            return datetime.fromisoformat(time_str.replace("Z", "+00:00"))
        except (ValueError, TypeError):
            return datetime.now()


class AliyunCMSNormalizer:
    """阿里云CMS告警 → 统一事件格式"""

    LEVEL_MAP = {
        "CRITICAL": Severity.CRITICAL,
        "WARN": Severity.WARNING,
        "INFO": Severity.INFO,
    }

    def normalize(self, payload: dict) -> UnifiedEvent:
        severity = self.LEVEL_MAP.get(
            payload.get("triggerLevel", "WARN"), Severity.WARNING
        )
        status = (
            EventStatus.RESOLVED
            if payload.get("alertState") == "OK"
            else EventStatus.FIRING
        )

        # 解析dimensions JSON字符串
        dimensions = {}
        try:
            dimensions = json.loads(payload.get("dimensions", "{}"))
        except json.JSONDecodeError:
            pass

        instance_id = dimensions.get("instanceId", "")

        return UnifiedEvent(
            event_id=str(uuid.uuid4()),
            source="aliyun_cms",
            source_alert_id=payload.get("ruleId", ""),
            status=status,
            severity=severity,
            host=payload.get("instanceName", ""),
            resource_id=instance_id,
            alert_name=payload.get("preName", ""),
            summary=payload.get("preName", ""),
            description=f"{payload.get('expression', '')}，当前值: {payload.get('curValue', '')}",
            metric_name=payload.get("metricName"),
            current_value=payload.get("curValue"),
            fired_at=datetime.fromtimestamp(payload.get("timestamp", 0) / 1000),
            tags={"region": payload.get("regionId", ""), "namespace": payload.get("namespace", "")},
            raw_payload=payload,
            dedupe_key=f"aliyun_cms:{instance_id}:{payload.get('metricName', '')}",
        )

---

五、事件去重：同一告警5分钟内不重复生成事件

# deduplication.py
from datetime import datetime, timedelta
from typing import Optional
import redis

# 用Redis做去重窗口（简单高效）
redis_client = redis.Redis(host='localhost', port=6379, db=0)
DEDUPE_WINDOW = 300  # 5分钟窗口


def check_and_mark_duplicate(event) -> bool:
    """
    检查事件是否是重复的。
    去重键 = source + host + alert_name
    5分钟窗口内同一去重键只保留第一条。
    """
    dedupe_key = event.dedupe_key

    # 尝试设置key，如果已存在则说明是重复
    is_new = redis_client.set(
        f"dedupe:{dedupe_key}",
        event.event_id,
        nx=True,  # 只在key不存在时设置
        ex=DEDUPE_WINDOW
    )

    if not is_new:
        # 已存在，是重复事件
        event.is_duplicate = True
        # 获取原始事件ID用于关联
        original_event_id = redis_client.get(f"dedupe:{dedupe_key}")
        if original_event_id:
            event.correlated_events.append(original_event_id.decode())
        return True

    return False

---

六、事件关联：同一设备/服务的告警串起来

# correlation.py
from datetime import datetime, timedelta
from typing import List


# 关联窗口：10分钟内同一host的告警视为相关
CORRELATION_WINDOW = timedelta(minutes=10)


def correlate_events(new_event, recent_events: List) -> List[str]:
    """
    关联逻辑：
    1. 同一host，10分钟内的其他事件 → 互相关联
    2. 同一IP，10分钟内的其他事件 → 互相关联（跨监控源）
    """
    correlated = []

    for existing in recent_events:
        if existing.event_id == new_event.event_id:
            continue

        # 时间窗口检查
        time_diff = abs((new_event.fired_at - existing.fired_at).total_seconds())
        if time_diff > CORRELATION_WINDOW.total_seconds():
            continue

        # 关联条件1：同host
        if new_event.host and new_event.host == existing.host:
            correlated.append(existing.event_id)
            continue

        # 关联条件2：同IP（跨监控源关联的关键）
        if new_event.host_ip and new_event.host_ip == existing.host_ip:
            correlated.append(existing.event_id)
            continue

        # 关联条件3：同resource_id
        if new_event.resource_id and new_event.resource_id == existing.resource_id:
            correlated.append(existing.event_id)
            continue

    return correlated

跨源关联的关键：Zabbix用hostname、Prometheus用instance(IP:port)、云监控用instanceId。要实现跨源关联，必须有一个资产映射表，把这三者对应起来：

-- 资产映射表：打通不同监控源的设备标识
CREATE TABLE asset_mapping (
    id BIGINT AUTO_INCREMENT PRIMARY KEY,
    hostname VARCHAR(128),          -- Zabbix里的Host Name
    ip_address VARCHAR(45),         -- Prometheus instance的IP
    cloud_instance_id VARCHAR(128), -- 阿里云/腾讯云实例ID
    cmdb_device_id VARCHAR(64),     -- CMDB设备ID（如果有）
    service_name VARCHAR(128),      -- 所属业务服务

    UNIQUE INDEX idx_hostname (hostname),
    INDEX idx_ip (ip_address),
    INDEX idx_cloud_id (cloud_instance_id)
);

-- 示例数据
INSERT INTO asset_mapping VALUES
(1, 'prod-web-01', '192.168.1.10', 'i-bp1234567890', 'DEV-001', 'order-service'),
(2, 'prod-db-01',  '192.168.1.20', 'i-bp0987654321', 'DEV-002', 'mysql-master');

有了这张表，不管告警从哪个源来，都能通过hostname/IP/cloud_id找到同一台设备，实现跨源关联。

---

七、事件总线完整API实现

# event_bus.py - Flask实现的事件总线入口
from flask import Flask, request, jsonify
from normalizers import ZabbixNormalizer, PrometheusNormalizer, AliyunCMSNormalizer
from deduplication import check_and_mark_duplicate
from correlation import correlate_events
from notification import dispatch_notification
import logging

app = Flask(__name__)
logger = logging.getLogger(__name__)

# 初始化归一化器
normalizers = {
    "zabbix": ZabbixNormalizer(),
    "prometheus": PrometheusNormalizer(),
    "aliyun_cms": AliyunCMSNormalizer(),
}


@app.route("/api/v1/alerts/ingest", methods=["POST"])
def ingest_alert():
    """统一告警接入入口"""
    payload = request.get_json(force=True)

    # 1. 判断来源并归一化
    source = detect_source(payload)
    normalizer = normalizers.get(source)
    if not normalizer:
        return jsonify({"error": f"unknown source: {source}"}), 400

    # Prometheus可能一次推送多条
    if source == "prometheus":
        events = normalizer.normalize(payload)
    else:
        events = [normalizer.normalize(payload)]

    results = []
    for event in events:
        # 2. 去重
        is_dup = check_and_mark_duplicate(event)
        if is_dup:
            logger.info(f"Duplicate event suppressed: {event.dedupe_key}")
            results.append({"event_id": event.event_id, "status": "deduplicated"})
            continue

        # 3. 关联
        recent = get_recent_events(minutes=10)
        correlated_ids = correlate_events(event, recent)
        event.correlated_events = correlated_ids

        # 4. 持久化
        save_event(event)

        # 5. 分发通知
        if event.status.value == "firing":
            dispatch_notification(event)

        results.append({"event_id": event.event_id, "status": "processed"})
        logger.info(
            f"Event processed: {event.source}/{event.alert_name} "
            f"severity={event.severity.value} correlated={len(correlated_ids)}"
        )

    return jsonify({"results": results}), 200


def detect_source(payload: dict) -> str:
    """根据payload特征自动判断来源"""
    if "alerts" in payload and "groupKey" in payload:
        return "prometheus"
    if payload.get("source") == "zabbix":
        return "zabbix"
    if "metricProject" in payload or "namespace" in payload:
        if "acs_" in payload.get("namespace", ""):
            return "aliyun_cms"
    if "alarmObjInfo" in payload:
        return "tencent_cm"
    # 默认根据显式声明
    return payload.get("source", "unknown")


if __name__ == "__main__":
    app.run(host="0.0.0.0", port=8080)

---

八、效果数据

上线3周后的统计：

指标	接入前	接入后	变化
值班需要盯的群/渠道数	3个	1个	-67%
日均告警条数（原始）	340条	340条（不变）	-
日均事件数（去重后）	-	78条	去重率77%
跨源关联成功率	0%（无法关联）	65%	-
重复问题平均定位时间	20分钟	3分钟	-85%
告警遗漏（无人响应）	周均4次	周均0次	100%消除

最明显的改善：核心交换机Down之后，Zabbix/Prometheus/云监控同时报警，事件总线5秒内把3条告警关联成1个事件，值班人看到的是"交换机故障（3条关联告警）"而不是3条分散的消息。

---

九、3个踩坑记录

坑1：Zabbix Webhook调用超时

Zabbix的Webhook有10秒超时限制（不可配置）。如果事件总线处理慢导致响应超10秒，Zabbix会判定为失败并重试——导致重复告警。

解决：事件总线接收到Webhook后立即返回200（异步处理），不要同步做去重/关联/通知。

# 改为异步处理
from concurrent.futures import ThreadPoolExecutor

executor = ThreadPoolExecutor(max_workers=10)

@app.route("/api/v1/alerts/ingest", methods=["POST"])
def ingest_alert():
    payload = request.get_json(force=True)
    # 立即返回，异步处理
    executor.submit(process_event, payload)
    return jsonify({"status": "accepted"}), 200

坑2：Prometheus恢复通知和Zabbix恢复通知时间差

同一故障恢复时，Prometheus和Zabbix的恢复检测时间可能差1-2分钟（评估周期不同）。导致事件总线先收到Prometheus的resolved，但Zabbix的还在firing——事件状态反复横跳。

解决：恢复判定规则改为"所有关联告警源都发送了resolved才标记事件恢复"，或者设置2分钟恢复延迟窗口。

坑3：资产映射表数据不全导致关联失败

上线第一周跨源关联率只有30%——因为asset_mapping表只录了核心服务器，大量开发/测试环境没录入。

解决：写了一个定时脚本，从Zabbix API拉主机列表、从Prometheus targets拉实例列表、从云控制台API拉实例信息，自动填充asset_mapping表。

---

十、小结

多监控工具并存是现实，"全部换成一套"不现实。关键是在告警出口统一收口：

1. 每个告警源只负责发Webhook——保持各工具原有能力不动
2. 事件总线负责归一化——4种格式转1种，后续逻辑只面对一种数据结构
3. 去重+关联是核心价值——340条→78条，3条分散告警→1个关联事件
4. 资产映射表是跨源关联的前提——hostname/IP/cloud_id必须能对应起来

我们在冠服云EMS平台里做的事件中心就是这个架构——Zabbix/Prometheus/N9e/云监控都可以通过Webhook接入，平台内部做归一化、去重、关联、分级，然后统一派单和通知。如果你不想自己搭这套事件总线（上面的代码看着简单但生产化还有很多细节：高可用、消息队列缓冲、告警风暴限流等），直接用一个成熟的事件中心平台会省很多事。

不管用什么方案，核心逻辑就一条：告警从多个源头出来，必须进同一个入口做处理，不能让值班人肉当"人形事件总线"。
