1. 反向代理基础概念

反向代理（Reverse Proxy）是指 代理服务器 接收来自客户端的请求，然后将请求转发给内部网络上的后端服务器，并将从后端服务器得到的结果返回给客户端。

2. 测试环境准备

2.1. 测试环境

  • 操作系统：OpenEuler 22.03 LTS（华为云开发桌面）
  • Nginx 版本：1.21.5
  • 后端环境：JDK 21、SpringBoot 4.0.6
  • 工具：vim 编辑器（编辑Nginx配置）、systemd 服务管理（管理Nginx）、浏览器（测试接口）

2.2. Nginx安装和运行

请参考相关文章：
1. 《OpenEuler 系统下 Nginx 安装配置与管理指南（基于 OpenEuler 22.03 LTS SP4）》
2. 《华为云开发桌面OpenEuler搭建Nginx服务器实操记录》

2.3. 启动后端测试服务

为了测试 Nginx 的反向代理功能，先启动一个简单的后端服务（SpringBoot项目），该服务会在 8080 端口提供 HTTP 服务。

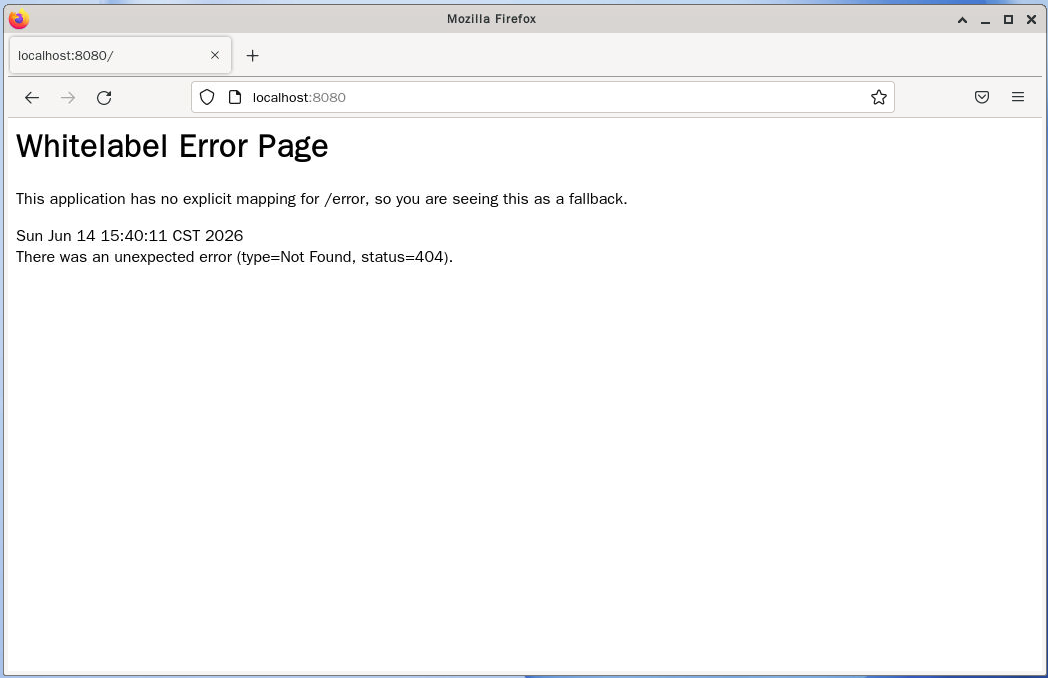

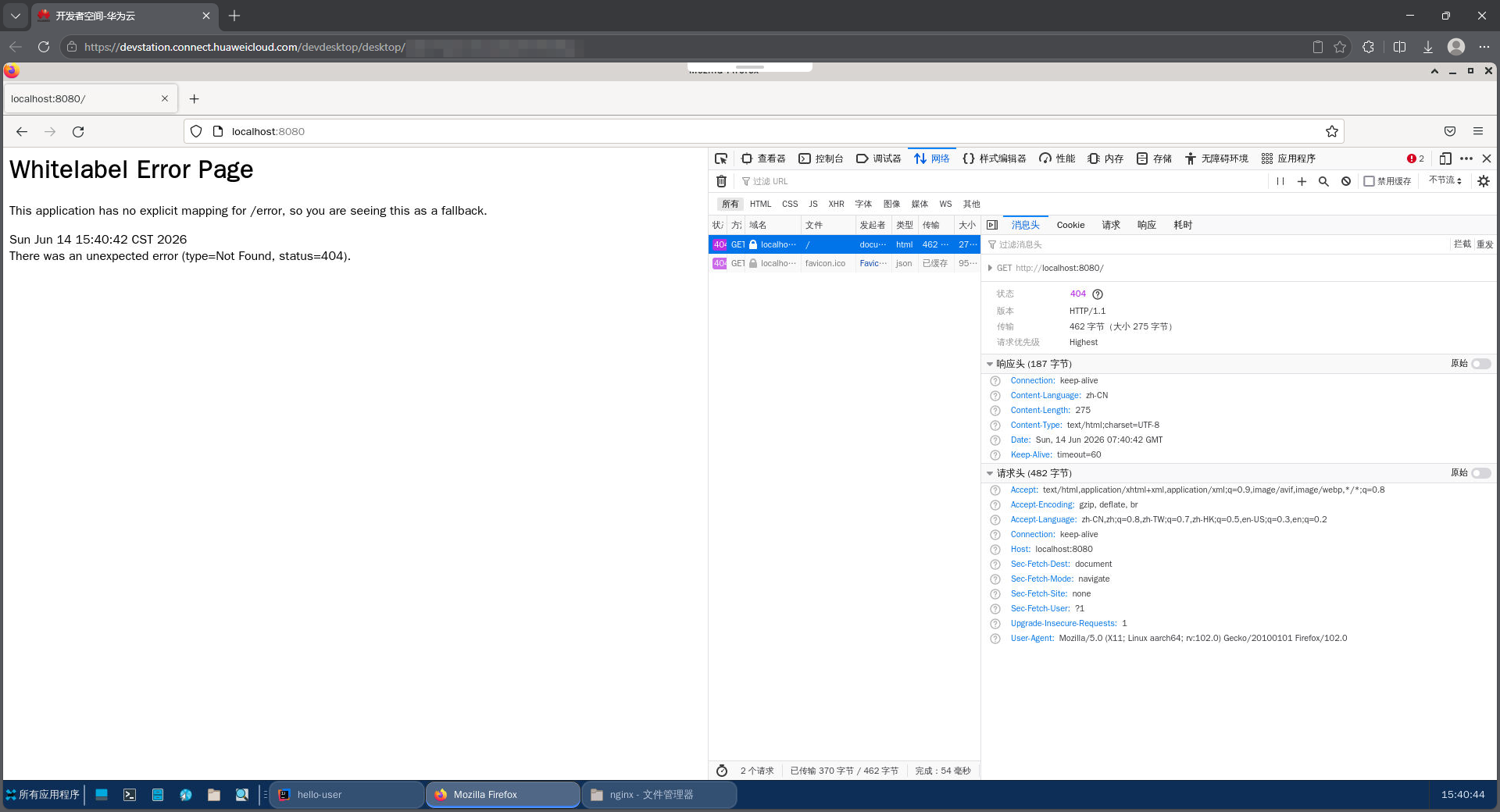

2.3.1. 验证接口访问正常：http://localhost:8080

请求头：

GET / HTTP/1.1
Host: localhost:8080
User-Agent: Mozilla/5.0 (X11; Linux aarch64; rv:102.0) Gecko/20100101 Firefox/102.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Language: zh-CN,zh;q=0.8,zh-TW;q=0.7,zh-HK;q=0.5,en-US;q=0.3,en;q=0.2
Accept-Encoding: gzip, deflate, br
Connection: keep-alive
Upgrade-Insecure-Requests: 1
Sec-Fetch-Dest: document
Sec-Fetch-Mode: navigate
Sec-Fetch-Site: none
Sec-Fetch-User: ?1

响应头：

HTTP/1.1 404
Content-Type: text/html;charset=UTF-8
Content-Language: zh-CN
Content-Length: 275
Date: Sun, 14 Jun 2026 07:40:42 GMT
Keep-Alive: timeout=60
Connection: keep-alive

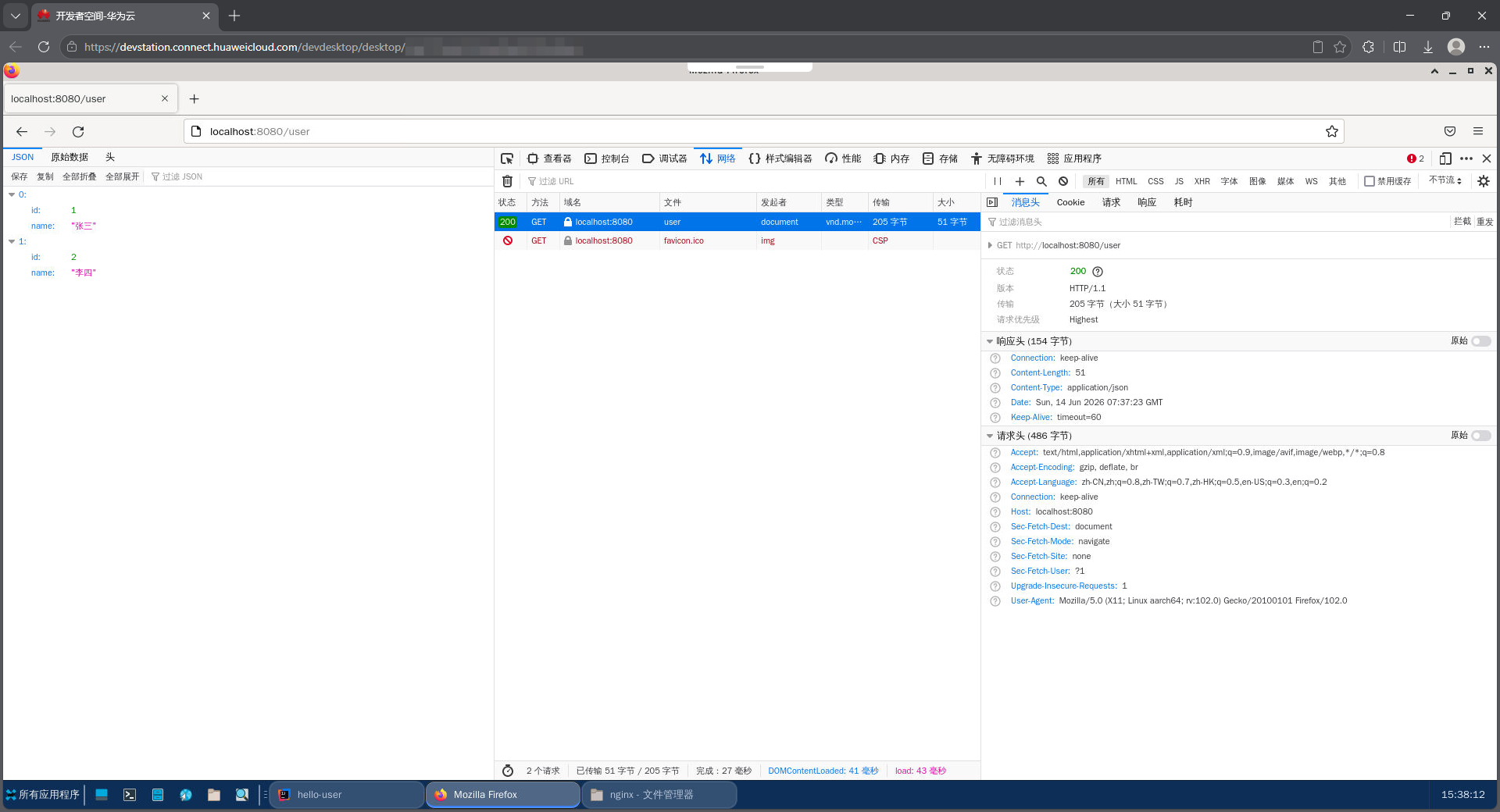

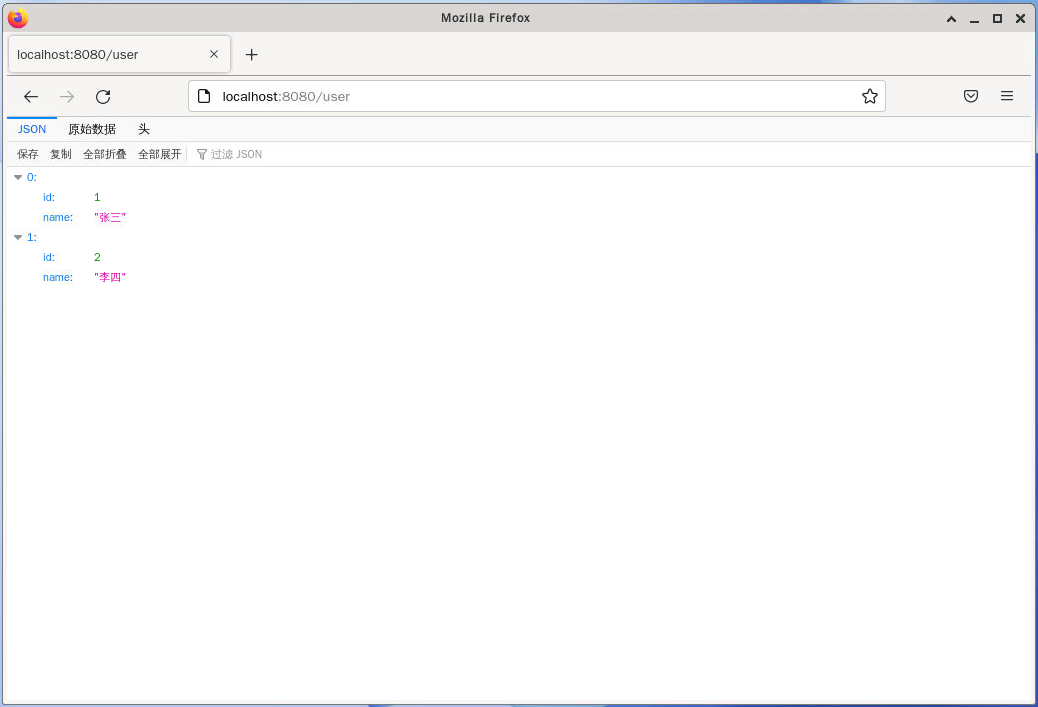

2.3.2. 验证接口访问正常：http://localhost:8080/user

查阅详细的网络活动信息：

请求头：

GET /user HTTP/1.1
Host: localhost:8080
User-Agent: Mozilla/5.0 (X11; Linux aarch64; rv:102.0) Gecko/20100101 Firefox/102.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Language: zh-CN,zh;q=0.8,zh-TW;q=0.7,zh-HK;q=0.5,en-US;q=0.3,en;q=0.2
Accept-Encoding: gzip, deflate, br
Connection: keep-alive
Upgrade-Insecure-Requests: 1
Sec-Fetch-Dest: document
Sec-Fetch-Mode: navigate
Sec-Fetch-Site: none
Sec-Fetch-User: ?1

响应头：

HTTP/1.1 200
Content-Type: application/json
Content-Length: 51
Date: Sun, 14 Jun 2026 07:37:23 GMT
Keep-Alive: timeout=60
Connection: keep-alive

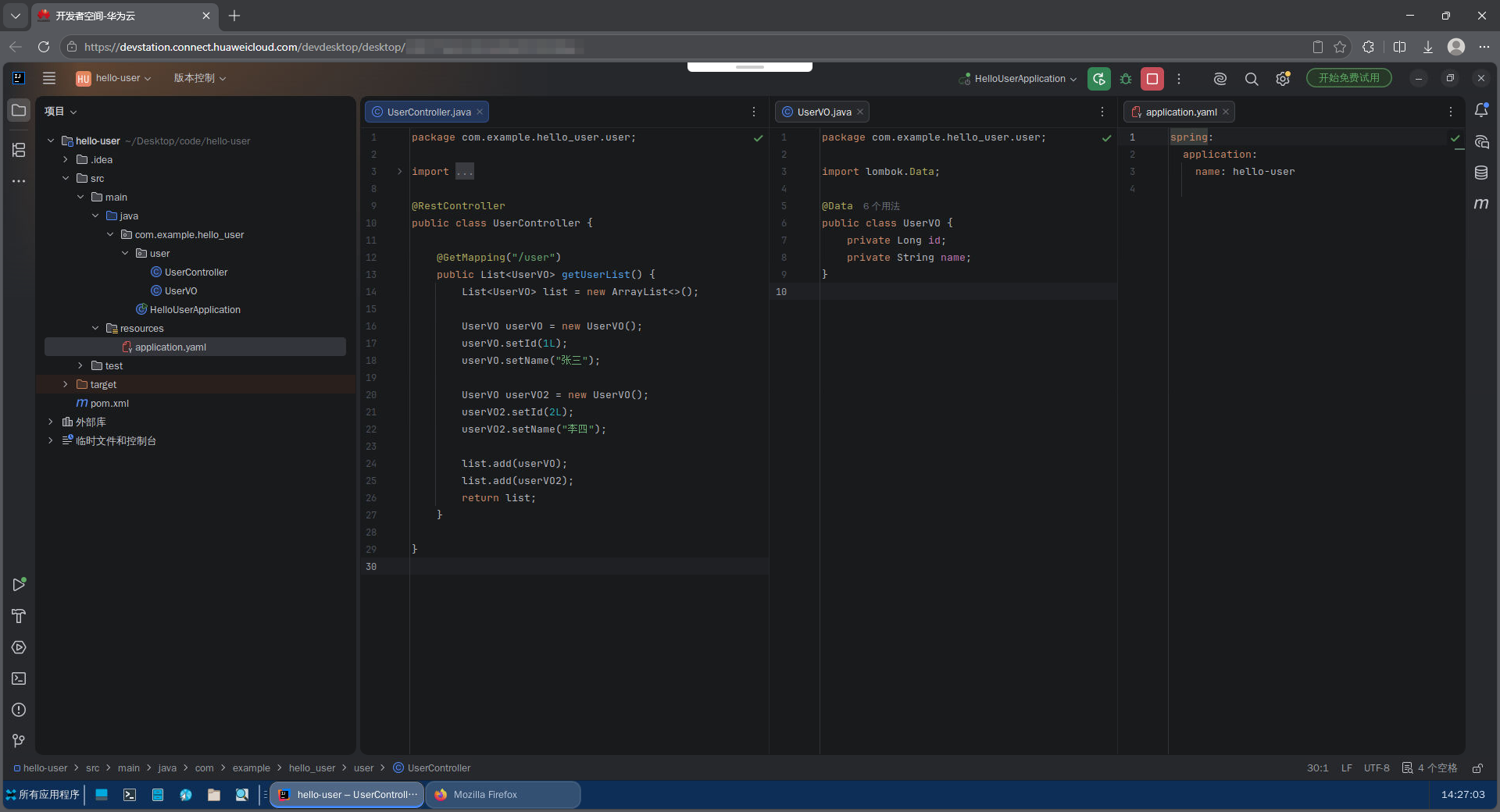

2.3.3. 接口代码及启动日志

SpringBoot 项目，接口代码及启动日志：


2.3.3.1. UserController
package com.example.hello_user.user;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.ArrayList;
import java.util.List;

@RestController
public class UserController {

    @GetMapping("/user")
    public List<UserVO> getUserList() {
        List<UserVO> list = new ArrayList<>();

        UserVO userVO = new UserVO();
        userVO.setId(1L);
        userVO.setName("张三");

        UserVO userVO2 = new UserVO();
        userVO2.setId(2L);
        userVO2.setName("李四");

        list.add(userVO);
        list.add(userVO2);
        return list;
    }

}
2.3.3.2. UserVO
package com.example.hello_user.user;

import lombok.Data;

@Data
public class UserVO {
    private Long id;
    private String name;
}

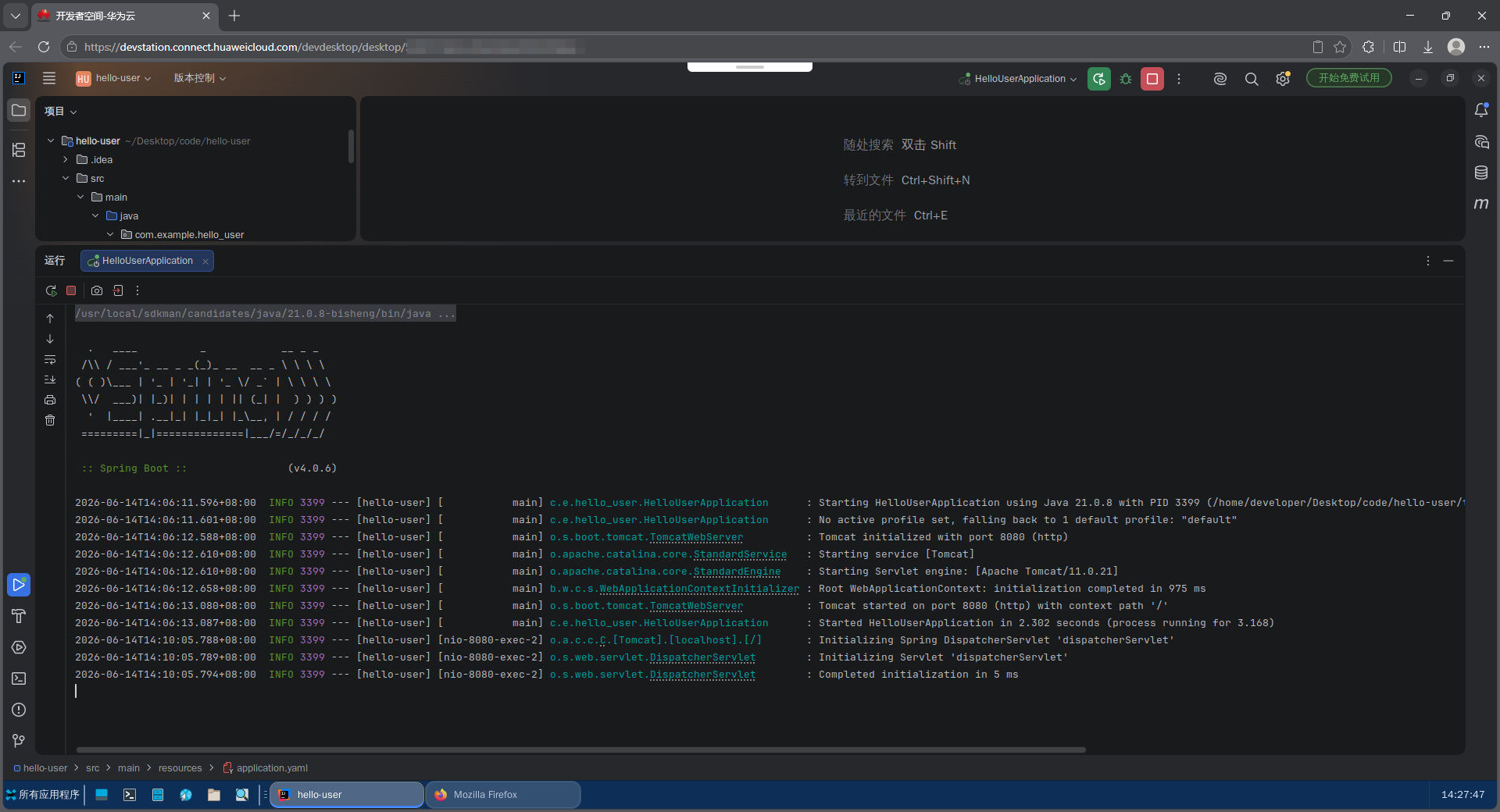

2.3.3.3. 日志
  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/

 :: Spring Boot ::                (v4.0.6)

2026-06-14T14:06:11.596+08:00  INFO 3399 --- [hello-user] [           main] c.e.hello_user.HelloUserApplication      : Starting HelloUserApplication using Java 21.0.8 with PID 3399 (/home/developer/Desktop/code/hello-user/target/classes started by developer in /home/developer/Desktop/code/hello-user)
2026-06-14T14:06:11.601+08:00  INFO 3399 --- [hello-user] [           main] c.e.hello_user.HelloUserApplication      : No active profile set, falling back to 1 default profile: "default"
2026-06-14T14:06:12.588+08:00  INFO 3399 --- [hello-user] [           main] o.s.boot.tomcat.TomcatWebServer          : Tomcat initialized with port 8080 (http)
2026-06-14T14:06:12.610+08:00  INFO 3399 --- [hello-user] [           main] o.apache.catalina.core.StandardService   : Starting service [Tomcat]
2026-06-14T14:06:12.610+08:00  INFO 3399 --- [hello-user] [           main] o.apache.catalina.core.StandardEngine    : Starting Servlet engine: [Apache Tomcat/11.0.21]
2026-06-14T14:06:12.658+08:00  INFO 3399 --- [hello-user] [           main] b.w.c.s.WebApplicationContextInitializer : Root WebApplicationContext: initialization completed in 975 ms
2026-06-14T14:06:13.080+08:00  INFO 3399 --- [hello-user] [           main] o.s.boot.tomcat.TomcatWebServer          : Tomcat started on port 8080 (http) with context path '/'
2026-06-14T14:06:13.087+08:00  INFO 3399 --- [hello-user] [           main] c.e.hello_user.HelloUserApplication      : Started HelloUserApplication in 2.302 seconds (process running for 3.168)
2026-06-14T14:10:05.788+08:00  INFO 3399 --- [hello-user] [nio-8080-exec-2] o.a.c.c.C.[Tomcat].[localhost].[/]       : Initializing Spring DispatcherServlet 'dispatcherServlet'
2026-06-14T14:10:05.789+08:00  INFO 3399 --- [hello-user] [nio-8080-exec-2] o.s.web.servlet.DispatcherServlet        : Initializing Servlet 'dispatcherServlet'
2026-06-14T14:10:05.794+08:00  INFO 3399 --- [hello-user] [nio-8080-exec-2] o.s.web.servlet.DispatcherServlet        : Completed initialization in 5 ms

3. 反向代理测试

3.1. 反向代理配置方式

  1. 配置文件位置：/etc/nginx/nginx.conf
  2. 找到默认的server块，添加一个 location 配置；通过 location 配置接口路由规则，使用 proxy_pass 将前端 API 请求转发至后端 SpringBoot 应用。

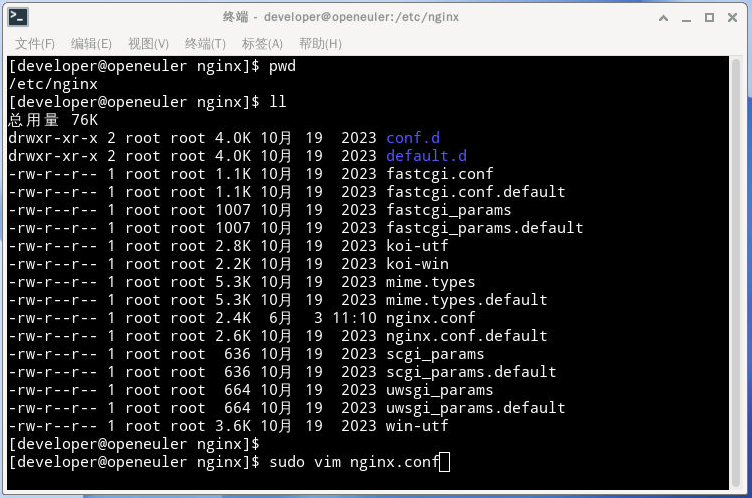

通过 vim 编辑器修改配置文件。

sudo vim nginx.conf

修改完成后，保存配置文件并退出vim编辑器。

注意：
普通用户对Nginx配置文件是只读权限，无法修改Nginx配置，需要使用 sudo 临时提升权限。

3.2. 默认访问效果（未配置反向代理）

Nginx默认配置启动，查看访问效果。

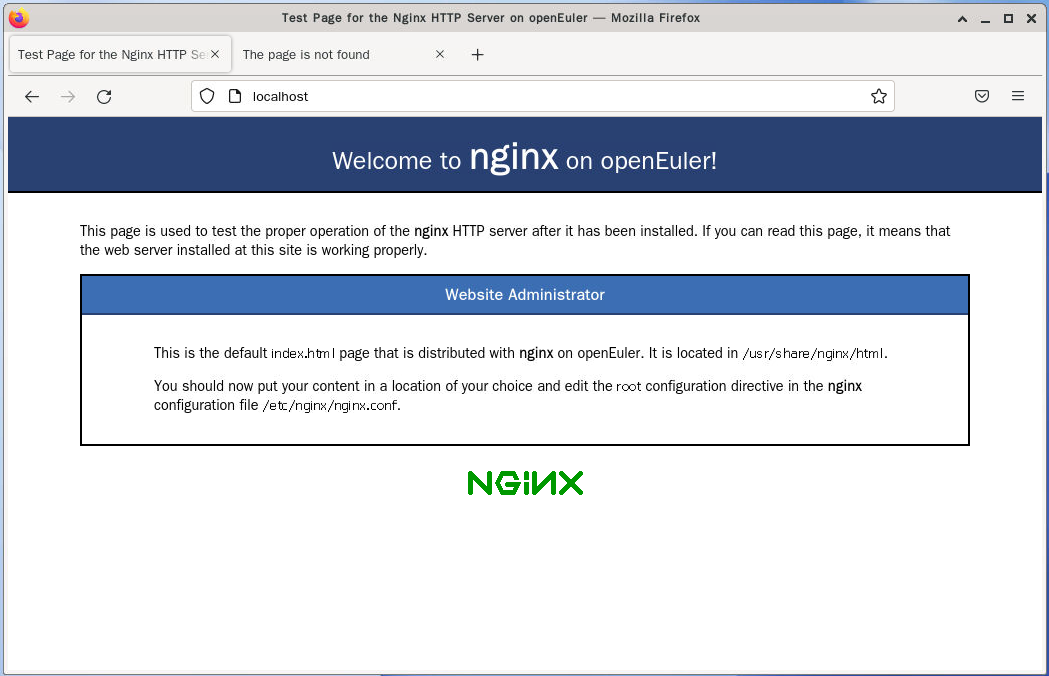

打开浏览器，在地址栏输入 localhost 或者 服务器IP地址，应该能看到 Nginx 的欢迎页面。

3.2.1. 浏览器访问

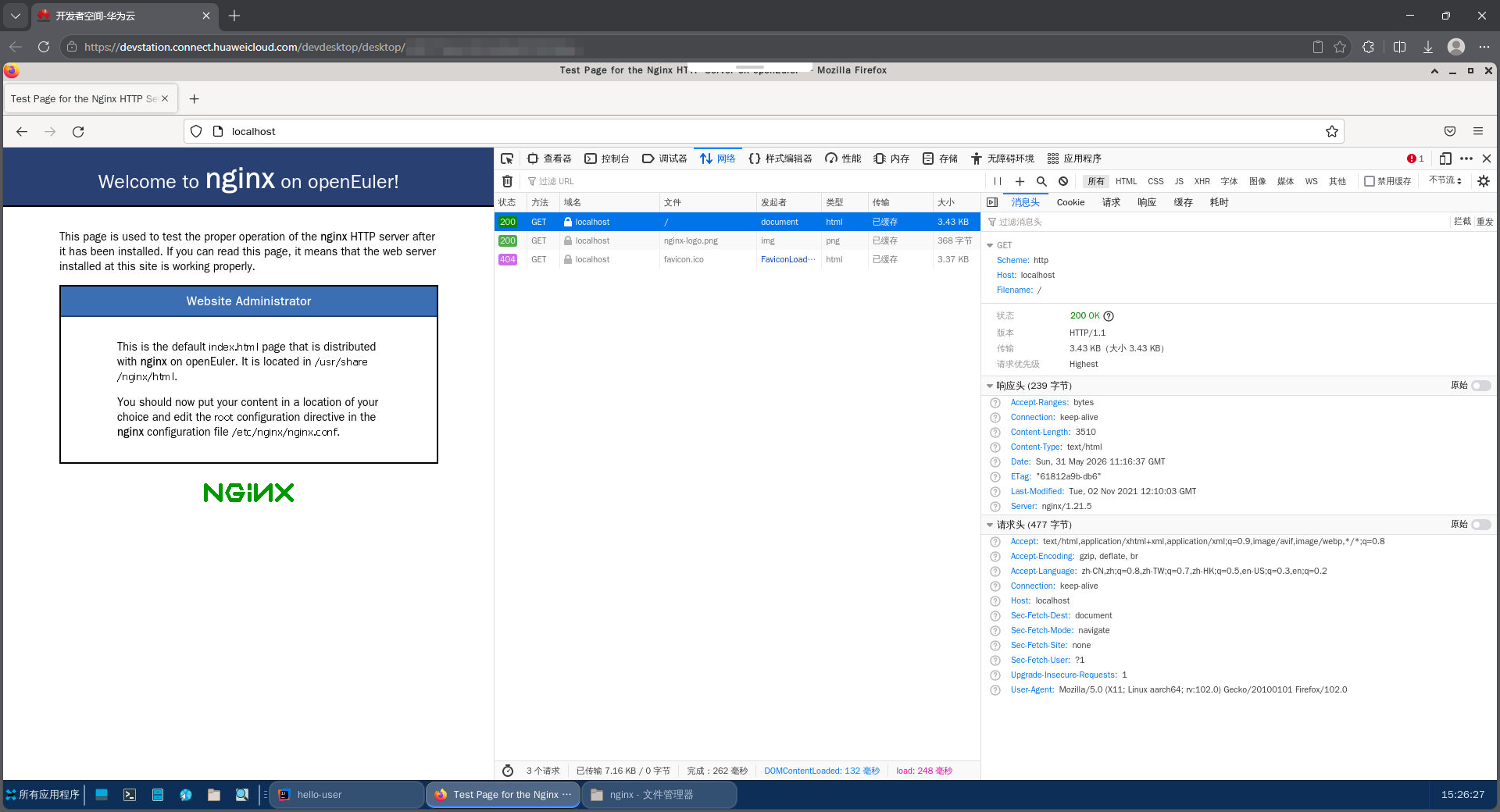

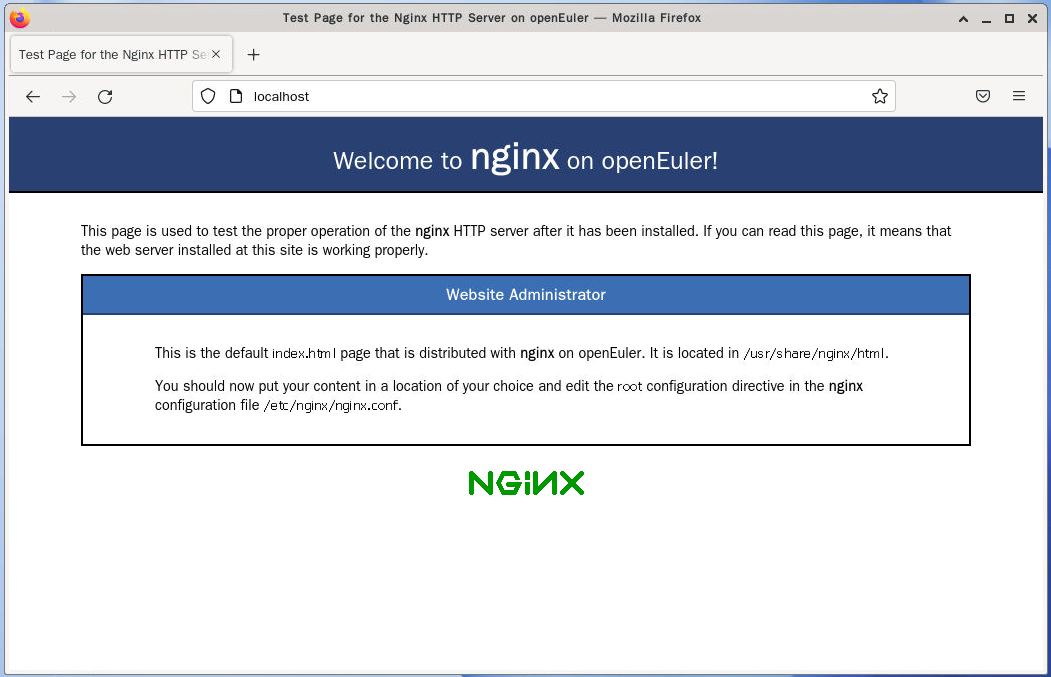

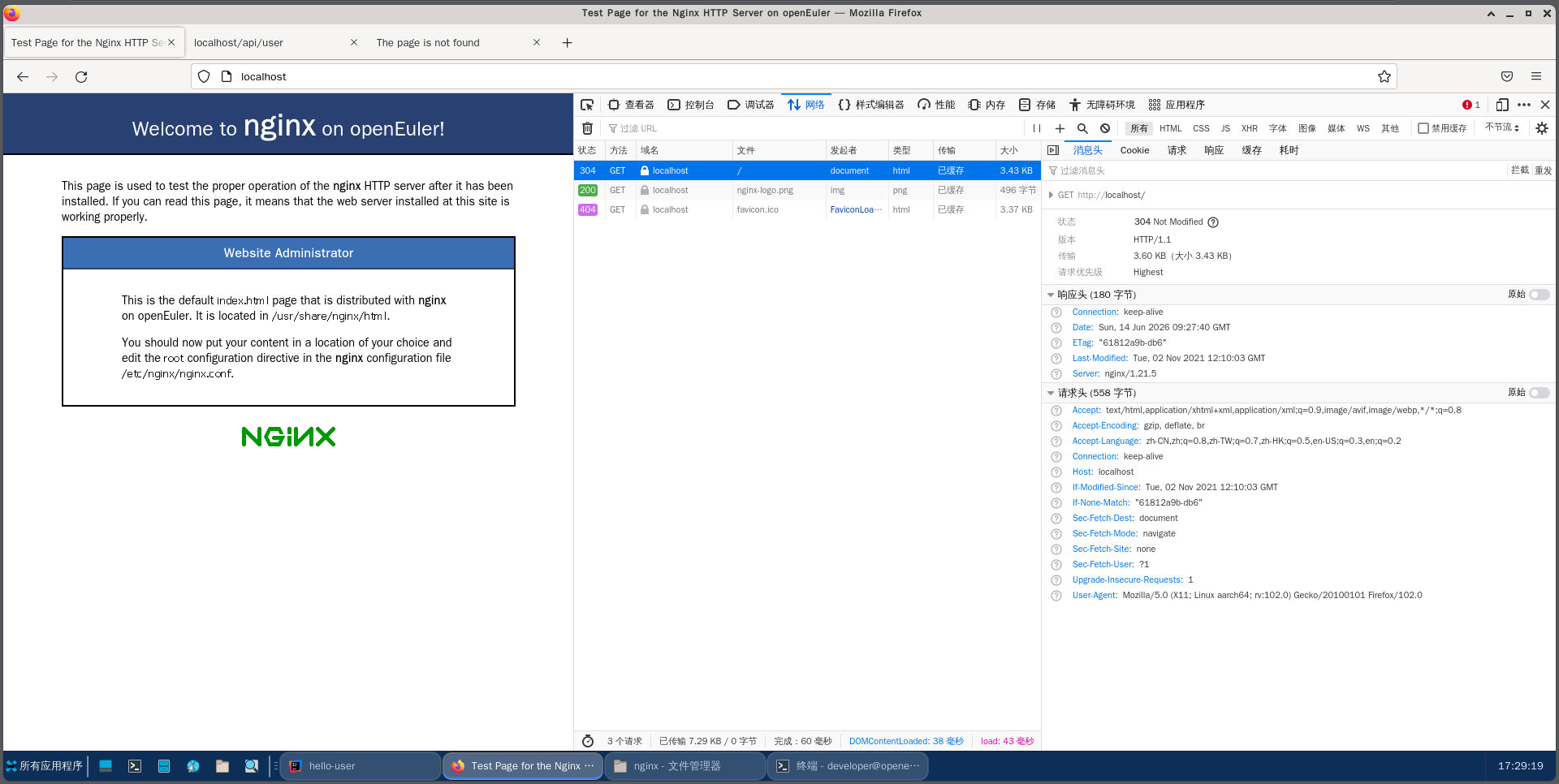

3.2.1.1. 浏览器访问：http://localhost/

请求头：

GET / HTTP/1.1
Host: localhost
User-Agent: Mozilla/5.0 (X11; Linux aarch64; rv:102.0) Gecko/20100101 Firefox/102.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Language: zh-CN,zh;q=0.8,zh-TW;q=0.7,zh-HK;q=0.5,en-US;q=0.3,en;q=0.2
Accept-Encoding: gzip, deflate, br
Connection: keep-alive
Upgrade-Insecure-Requests: 1
Sec-Fetch-Dest: document
Sec-Fetch-Mode: navigate
Sec-Fetch-Site: none
Sec-Fetch-User: ?1

响应头：

HTTP/1.1 200 OK
Server: nginx/1.21.5
Date: Sun, 31 May 2026 11:16:37 GMT
Content-Type: text/html
Content-Length: 3510
Last-Modified: Tue, 02 Nov 2021 12:10:03 GMT
Connection: keep-alive
ETag: "61812a9b-db6"
Accept-Ranges: bytes

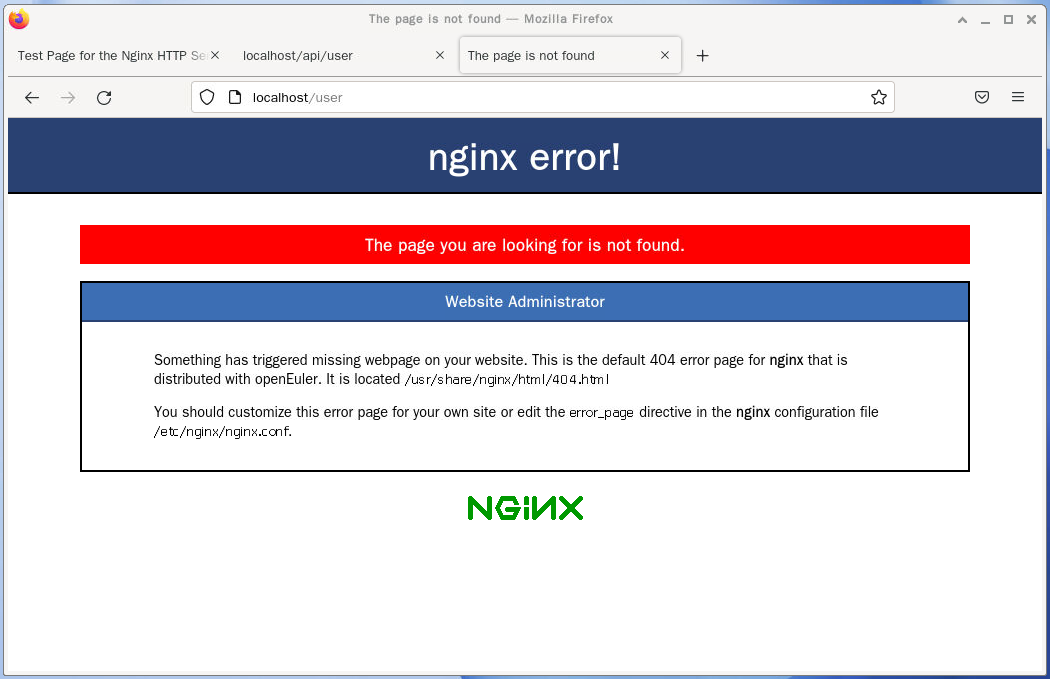

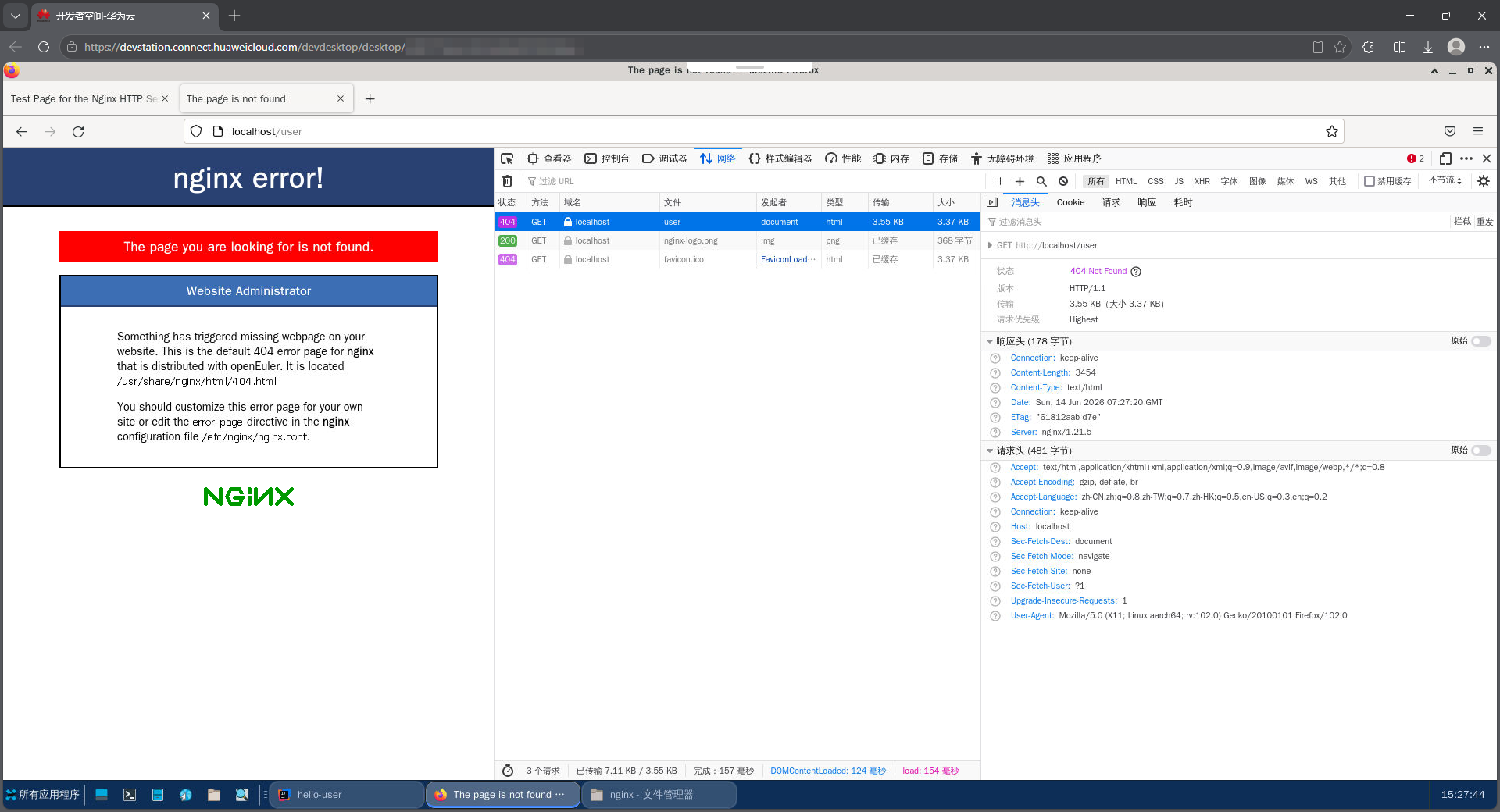

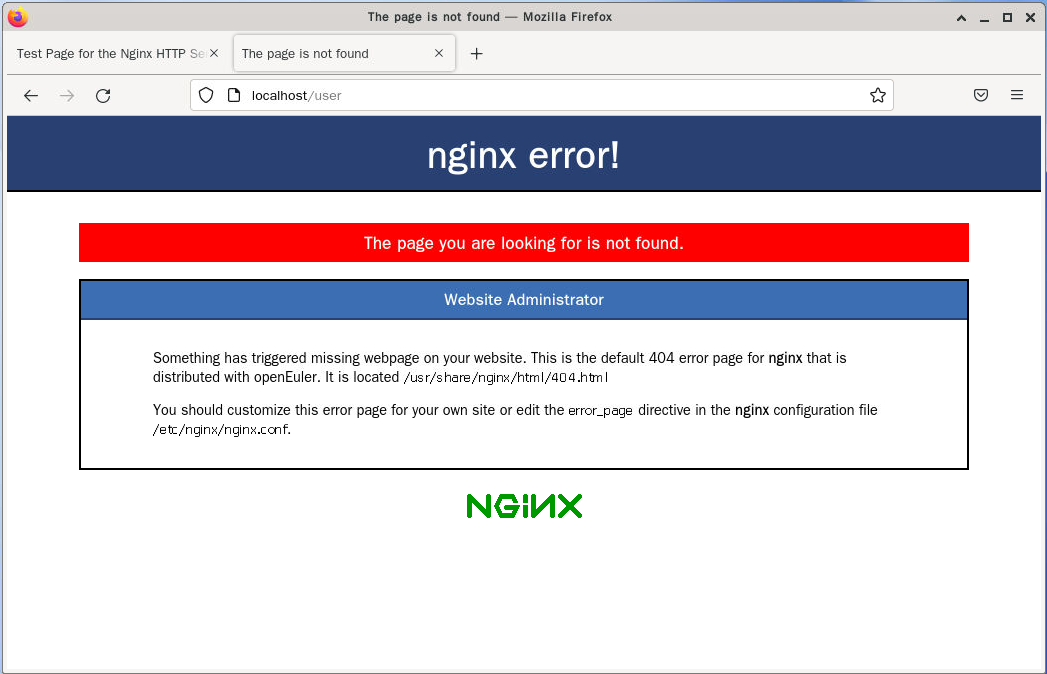

3.2.1.2. 浏览器访问：http://localhost/user

请求头：

GET /user HTTP/1.1
Host: localhost
User-Agent: Mozilla/5.0 (X11; Linux aarch64; rv:102.0) Gecko/20100101 Firefox/102.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
Accept-Language: zh-CN,zh;q=0.8,zh-TW;q=0.7,zh-HK;q=0.5,en-US;q=0.3,en;q=0.2
Accept-Encoding: gzip, deflate, br
Connection: keep-alive
Upgrade-Insecure-Requests: 1
Sec-Fetch-Dest: document
Sec-Fetch-Mode: navigate
Sec-Fetch-Site: none
Sec-Fetch-User: ?1

响应头：

HTTP/1.1 404 Not Found
Server: nginx/1.21.5
Date: Sun, 14 Jun 2026 07:27:20 GMT
Content-Type: text/html
Content-Length: 3454
Connection: keep-alive
ETag: "61812aab-d7e"

3.2.2. 全量配置文件记录

# For more information on configuration, see:
#   * Official English Documentation: http://nginx.org/en/docs/
#   * Official Russian Documentation: http://nginx.org/ru/docs/

user nginx;
worker_processes auto;
error_log /var/log/nginx/error.log;
pid /run/nginx.pid;

# Load dynamic modules. See /usr/share/doc/nginx/README.dynamic.
include /usr/share/nginx/modules/*.conf;

events {
    worker_connections 1024;
}

http {
    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';

    access_log  /var/log/nginx/access.log  main;

    sendfile            on;
    tcp_nopush          on;
    tcp_nodelay         on;
    keepalive_timeout   65;
    types_hash_max_size 4096;

    include             /etc/nginx/mime.types;
    default_type        application/octet-stream;

    # Load modular configuration files from the /etc/nginx/conf.d directory.
    # See http://nginx.org/en/docs/ngx_core_module.html#include
    # for more information.
    include /etc/nginx/conf.d/*.conf;

    server {
        listen       80;
        listen       [::]:80;
        server_name  _;
        root         /usr/share/nginx/html;

        # Load configuration files for the default server block.
        include /etc/nginx/default.d/*.conf;

        error_page 404 /404.html;
            location = /40x.html {
        }

        error_page 500 502 503 504 /50x.html;
            location = /50x.html {
        }
    }

# Settings for a TLS enabled server.
#
#    server {
#        listen       443 ssl http2;
#        listen       [::]:443 ssl http2;
#        server_name  _;
#        root         /usr/share/nginx/html;
#
#        ssl_certificate "/etc/pki/nginx/server.crt";
#        ssl_certificate_key "/etc/pki/nginx/private/server.key";
#        ssl_session_cache shared:SSL:1m;
#        ssl_session_timeout  10m;
#        ssl_ciphers PROFILE=SYSTEM;
#        ssl_prefer_server_ciphers on;
#
#        # Load configuration files for the default server block.
#        include /etc/nginx/default.d/*.conf;
#
#        error_page 404 /404.html;
#            location = /40x.html {
#        }
#
#        error_page 500 502 503 504 /50x.html;
#            location = /50x.html {
#        }
#    }

}

3.3. 基础反向代理

我们先从最简单的反向代理配置开始，将 所有请求 都转发到运行在 8080 端口的后端服务。

3.3.1. 核心配置

        location / {
            proxy_pass http://localhost:8080;
        }

通过 vim 编辑器修改配置文件，修改完成后，保存配置文件并退出vim编辑器。

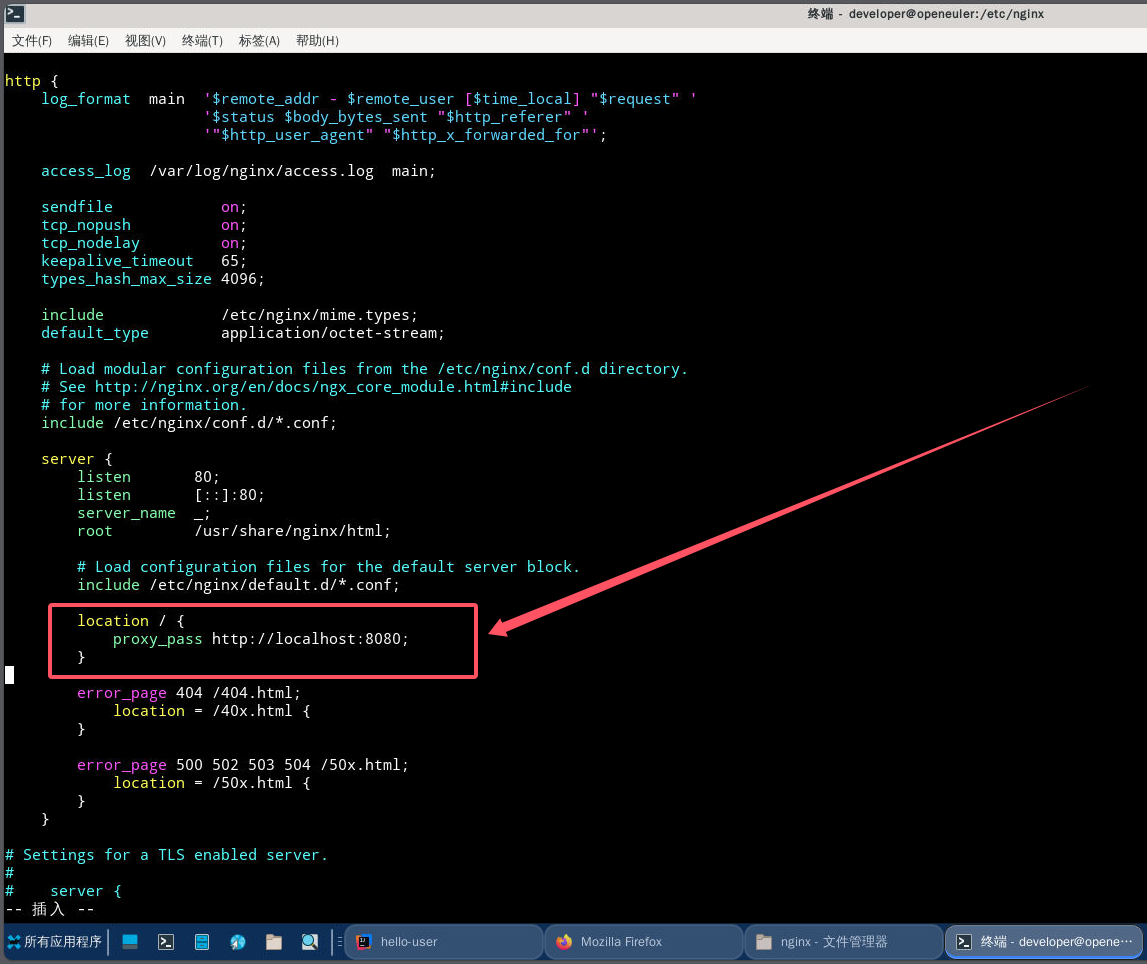

配置文件修改示例：

3.3.2. 配置验证与生效

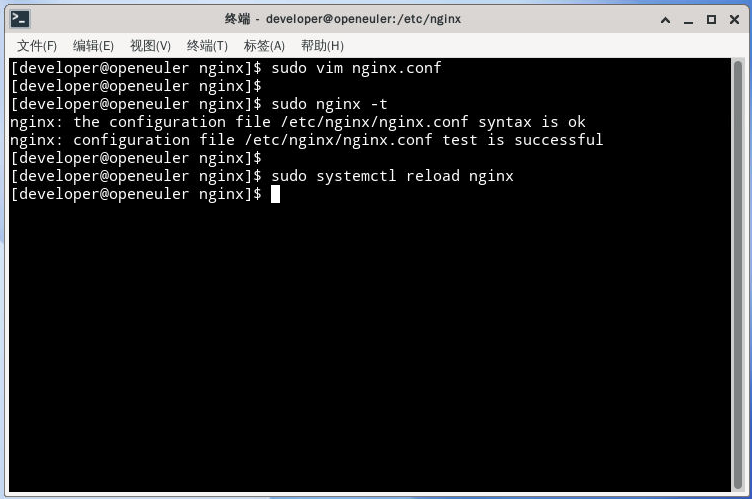

检查配置语法没问题，重新启动nginx。

[developer@openeuler nginx]$ sudo nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
[developer@openeuler nginx]$
[developer@openeuler nginx]$ sudo systemctl reload nginx

3.3.3. 测试反向代理功能

现在我们可以通过访问http://localhost/user来测试反向代理是否正常工作。我们应该看到与直接访问http://localhost:8080/user相同的页面内容。

注意到Server头显示的是nginx/1.21.5，这说明请求确实经过了Nginx的反向代理。

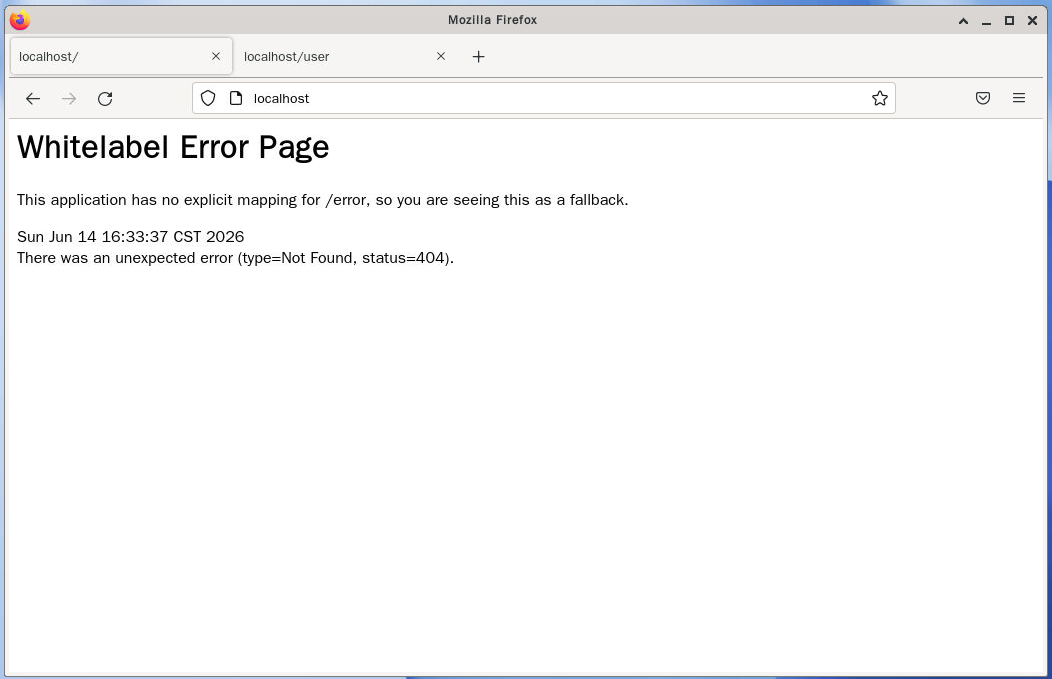

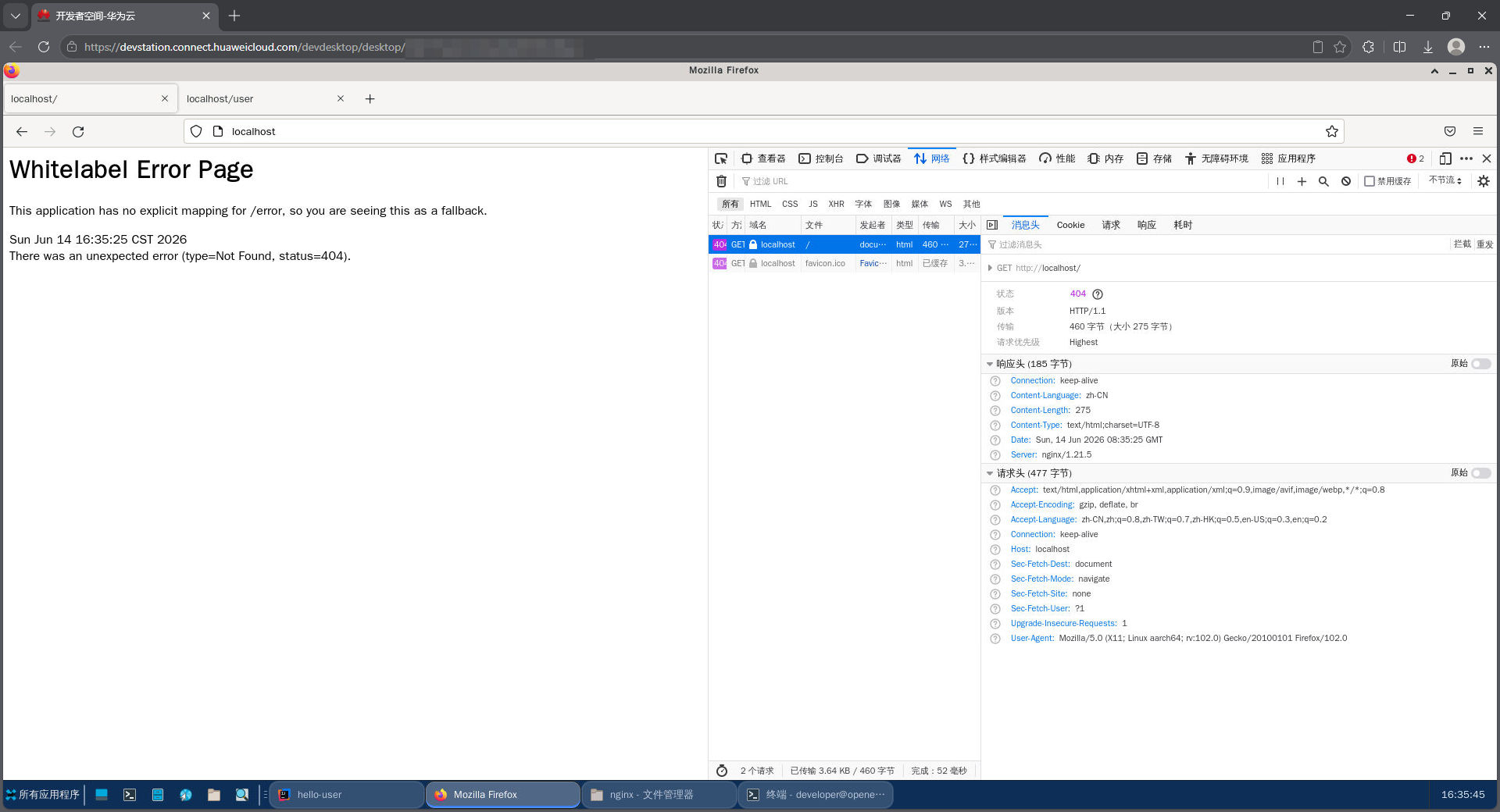

3.3.3.1. 浏览器访问：http://localhost/

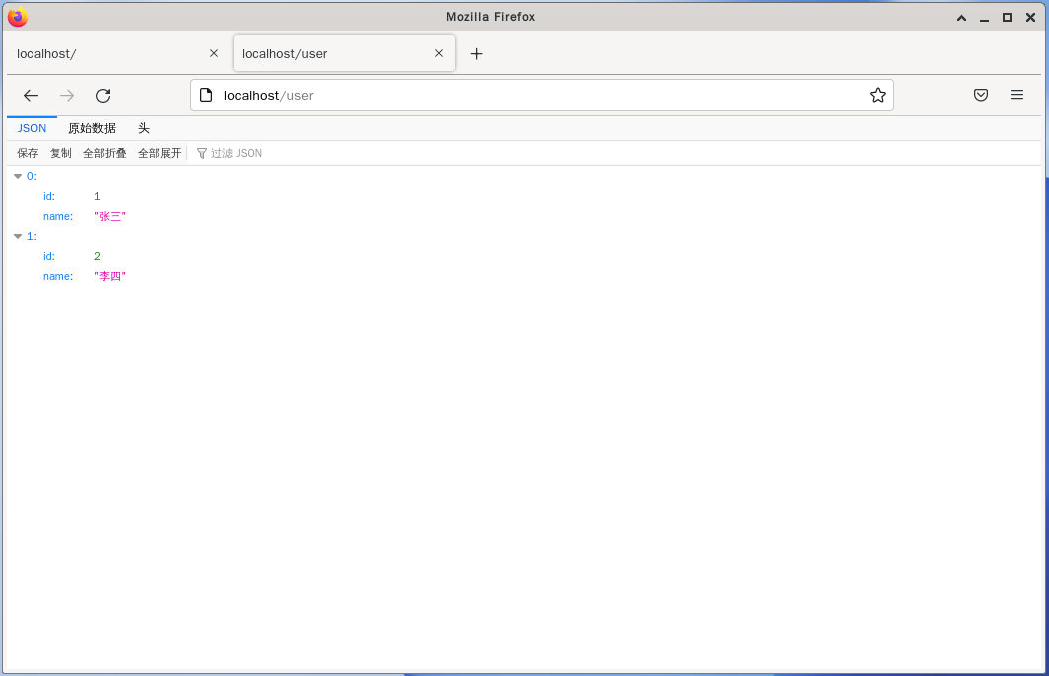

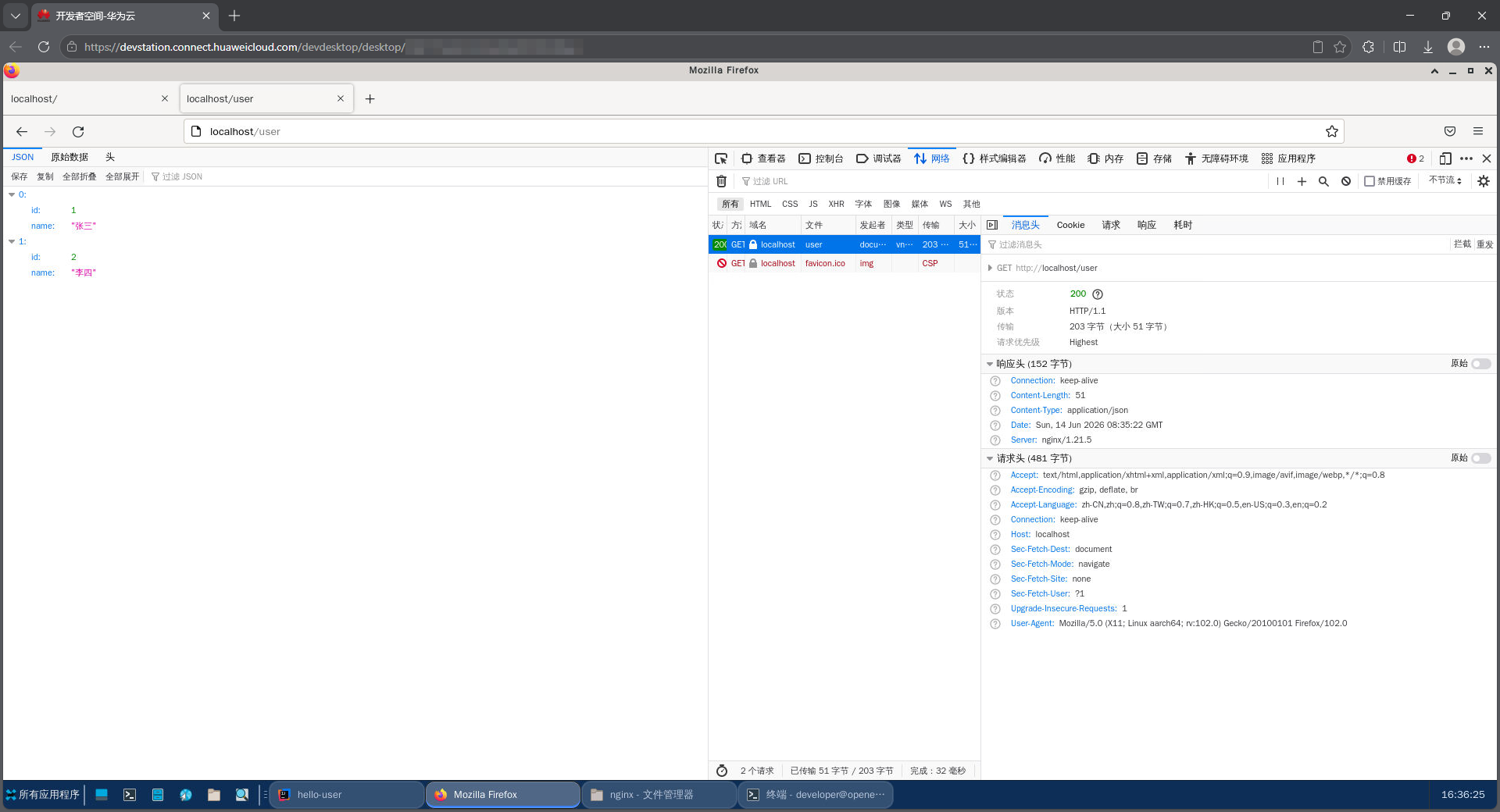

3.3.3.2. 浏览器访问：http://localhost/user

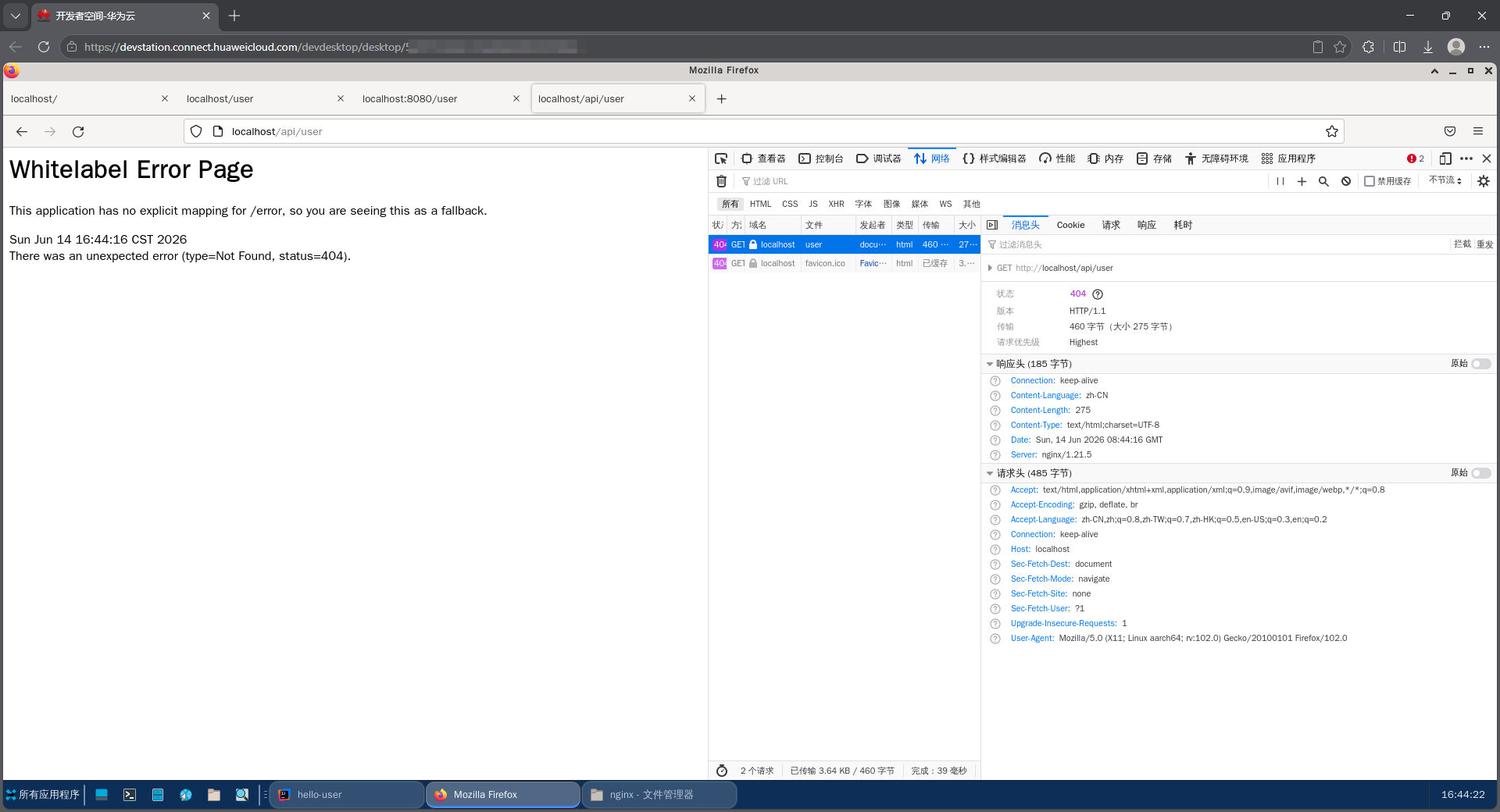

3.3.3.3. 浏览器访问：http://localhost/api/user

3.3.4. 全量配置文件记录

# For more information on configuration, see:
#   * Official English Documentation: http://nginx.org/en/docs/
#   * Official Russian Documentation: http://nginx.org/ru/docs/

user nginx;
worker_processes auto;
error_log /var/log/nginx/error.log;
pid /run/nginx.pid;

# Load dynamic modules. See /usr/share/doc/nginx/README.dynamic.
include /usr/share/nginx/modules/*.conf;

events {
    worker_connections 1024;
}

http {
    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';

    access_log  /var/log/nginx/access.log  main;

    sendfile            on;
    tcp_nopush          on;
    tcp_nodelay         on;
    keepalive_timeout   65;
    types_hash_max_size 4096;

    include             /etc/nginx/mime.types;
    default_type        application/octet-stream;

    # Load modular configuration files from the /etc/nginx/conf.d directory.
    # See http://nginx.org/en/docs/ngx_core_module.html#include
    # for more information.
    include /etc/nginx/conf.d/*.conf;

    server {
        listen       80;
        listen       [::]:80;
        server_name  _;
        root         /usr/share/nginx/html;

        # Load configuration files for the default server block.
        include /etc/nginx/default.d/*.conf;

        location / {
            proxy_pass http://localhost:8080;
        }

        error_page 404 /404.html;
            location = /40x.html {
        }

        error_page 500 502 503 504 /50x.html;
            location = /50x.html {
        }
    }

# Settings for a TLS enabled server.
#
#    server {
#        listen       443 ssl http2;
#        listen       [::]:443 ssl http2;
#        server_name  _;
#        root         /usr/share/nginx/html;
#
#        ssl_certificate "/etc/pki/nginx/server.crt";
#        ssl_certificate_key "/etc/pki/nginx/private/server.key";
#        ssl_session_cache shared:SSL:1m;
#        ssl_session_timeout  10m;
#        ssl_ciphers PROFILE=SYSTEM;
#        ssl_prefer_server_ciphers on;
#
#        # Load configuration files for the default server block.
#        include /etc/nginx/default.d/*.conf;
#
#        error_page 404 /404.html;
#            location = /40x.html {
#        }
#
#        error_page 500 502 503 504 /50x.html;
#            location = /50x.html {
#        }
#    }

}

3.4. 进阶反向代理：基于路径的反向代理

在实际应用中，我们经常需要根据不同的请求路径将请求转发到不同的后端服务。

本例中，Nginx 将 /api 路径前缀的请求转发到指定服务（本示例中为本地 8080 端口），并且去掉 /api 路径前缀。

3.4.1. 核心配置

        location /api/ {
            proxy_pass http://localhost:8080/;
        }

通过 vim 编辑器修改配置文件，修改完成后，保存配置文件并退出vim编辑器。

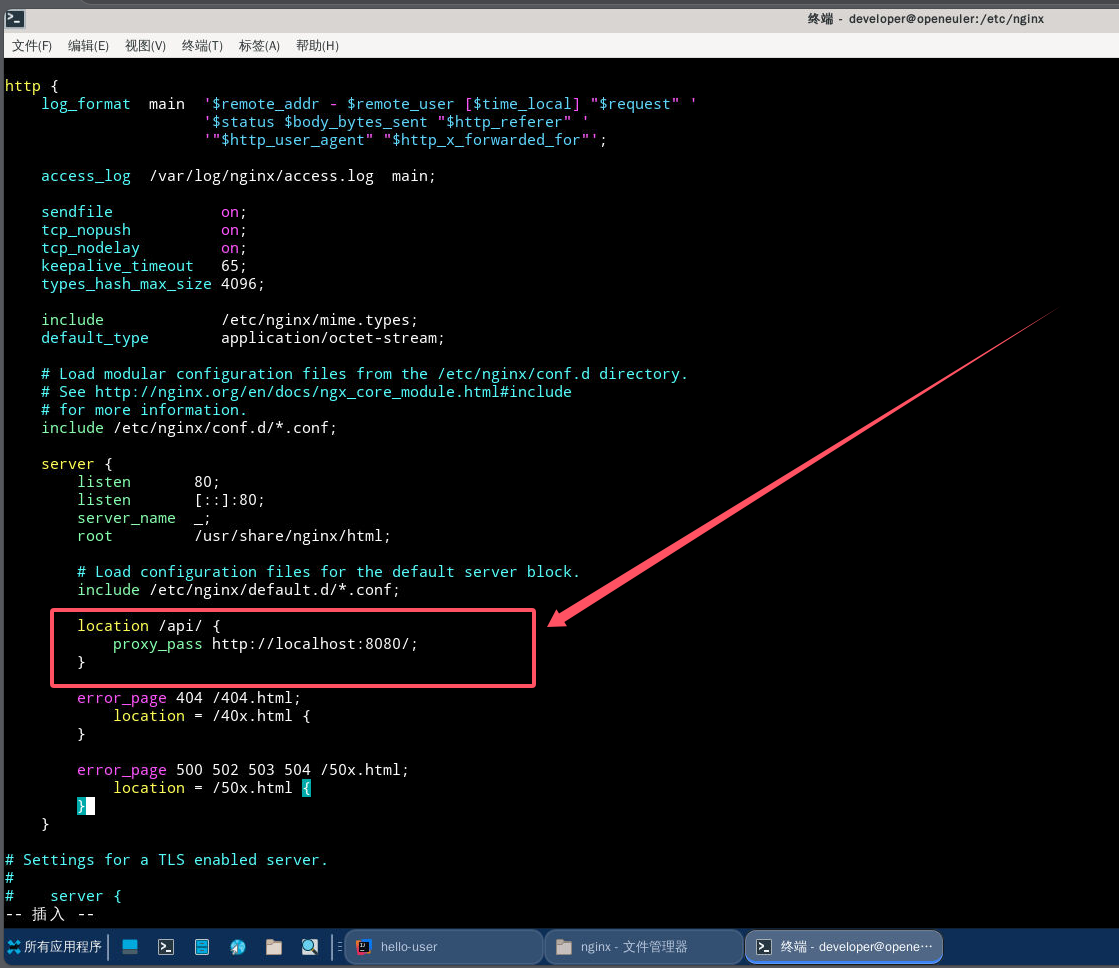

配置文件修改示例：

3.4.2. 配置验证与生效

检查配置语法没问题，重新启动nginx。

3.4.3. 测试反向代理功能

3.4.3.1. 浏览器访问：http://localhost/

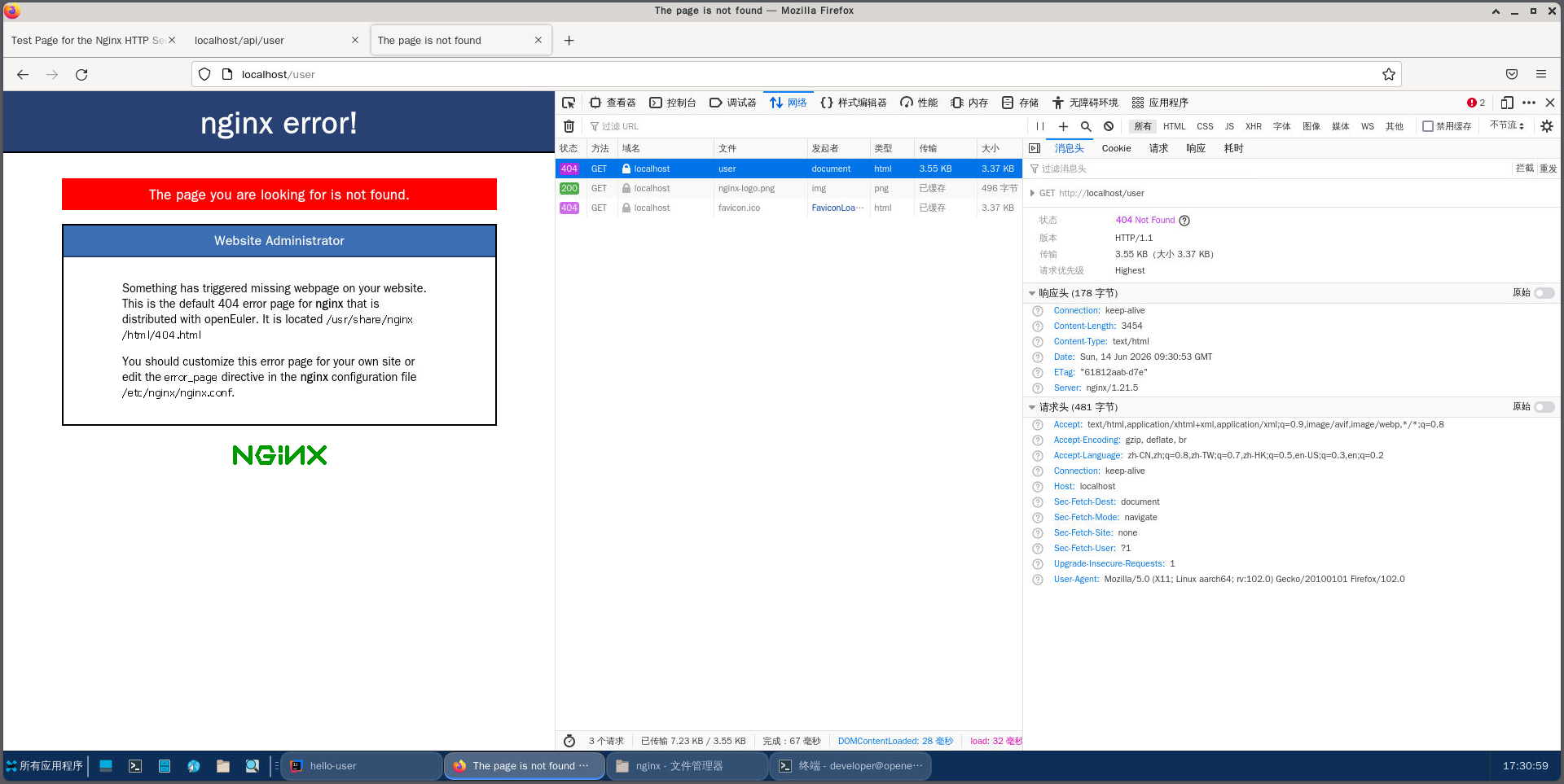

3.4.3.2. 浏览器访问：http://localhost/user

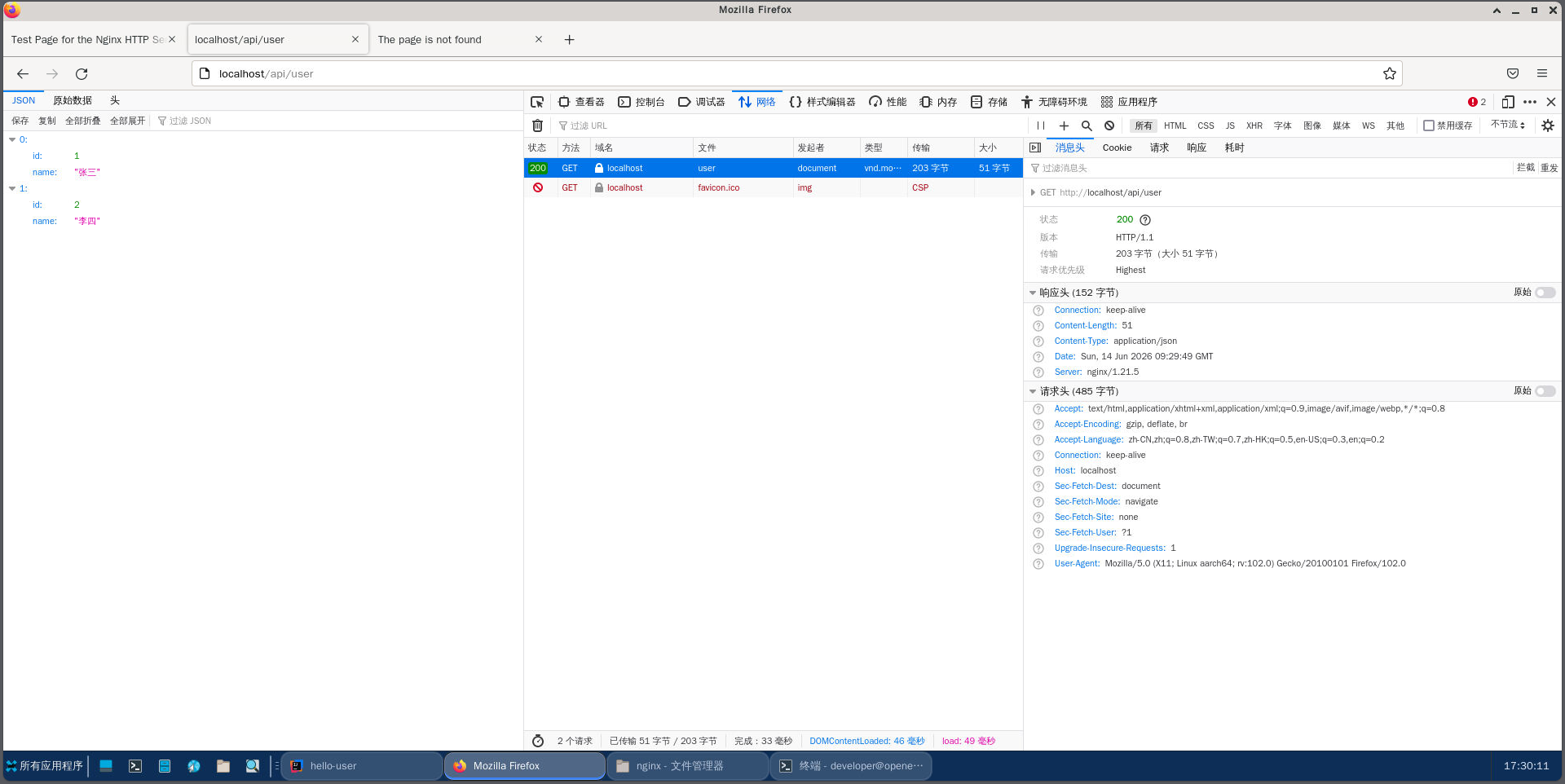

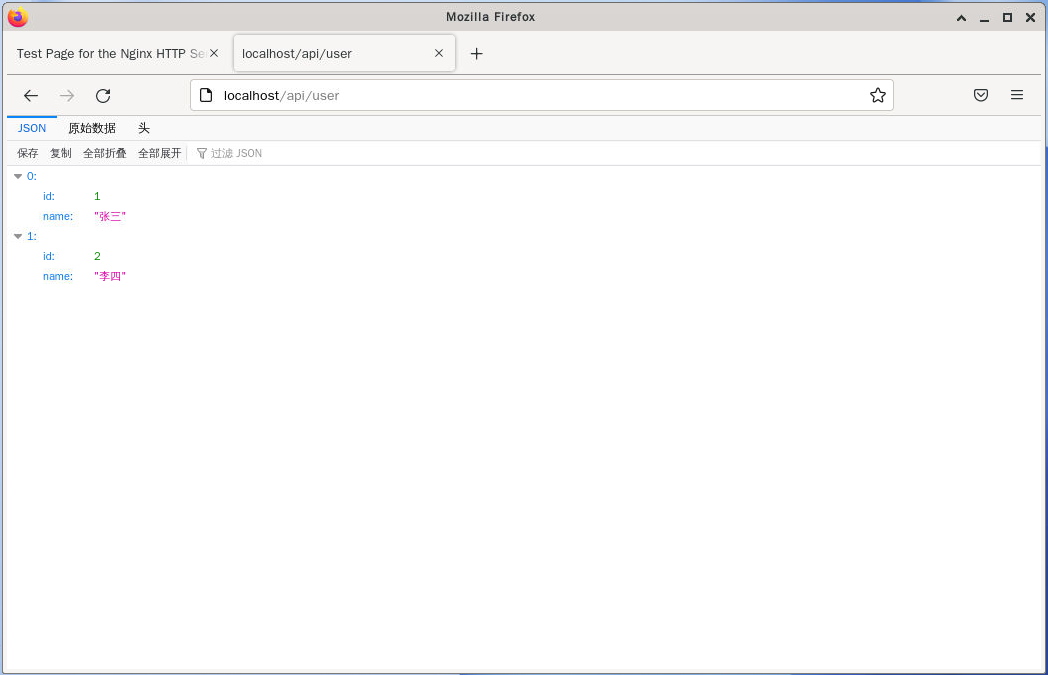

3.4.3.3. 浏览器访问：http://localhost/api/user

3.4.4. 注意事项：proxy_pass末尾的斜杠

在使用基于路径的反向代理时，proxy_pass指令末尾的斜杠非常重要，它会影响Nginx对请求URI的处理方式：

  • 如果proxy_pass末尾 有斜杠，Nginx会将location匹配到的部分从请求URI中去掉，然后将剩余部分附加到proxy_pass指定的URL后面
  • 如果proxy_pass末尾 没有斜杠，Nginx会将完整的请求URI附加到proxy_pass指定的URL后面

例如，对于上面的配置：

  • 当请求http://localhost/api/user时，Nginx会将请求转发到http://localhost:8080/user
  • 如果我们去掉proxy_pass末尾的斜杠，Nginx会将请求转发到http://localhost:8080/api/user

3.4.5. 全量配置文件记录（去掉 /api 路径前缀）

# For more information on configuration, see:
#   * Official English Documentation: http://nginx.org/en/docs/
#   * Official Russian Documentation: http://nginx.org/ru/docs/

user nginx;
worker_processes auto;
error_log /var/log/nginx/error.log;
pid /run/nginx.pid;

# Load dynamic modules. See /usr/share/doc/nginx/README.dynamic.
include /usr/share/nginx/modules/*.conf;

events {
    worker_connections 1024;
}

http {
    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';

    access_log  /var/log/nginx/access.log  main;

    sendfile            on;
    tcp_nopush          on;
    tcp_nodelay         on;
    keepalive_timeout   65;
    types_hash_max_size 4096;

    include             /etc/nginx/mime.types;
    default_type        application/octet-stream;

    # Load modular configuration files from the /etc/nginx/conf.d directory.
    # See http://nginx.org/en/docs/ngx_core_module.html#include
    # for more information.
    include /etc/nginx/conf.d/*.conf;

    server {
        listen       80;
        listen       [::]:80;
        server_name  _;
        root         /usr/share/nginx/html;

        # Load configuration files for the default server block.
        include /etc/nginx/default.d/*.conf;

        location /api/ {
            proxy_pass http://localhost:8080/;
        }

        error_page 404 /404.html;
            location = /40x.html {
        }

        error_page 500 502 503 504 /50x.html;
            location = /50x.html {
        }
    }

# Settings for a TLS enabled server.
#
#    server {
#        listen       443 ssl http2;
#        listen       [::]:443 ssl http2;
#        server_name  _;
#        root         /usr/share/nginx/html;
#
#        ssl_certificate "/etc/pki/nginx/server.crt";
#        ssl_certificate_key "/etc/pki/nginx/private/server.key";
#        ssl_session_cache shared:SSL:1m;
#        ssl_session_timeout  10m;
#        ssl_ciphers PROFILE=SYSTEM;
#        ssl_prefer_server_ciphers on;
#
#        # Load configuration files for the default server block.
#        include /etc/nginx/default.d/*.conf;
#
#        error_page 404 /404.html;
#            location = /40x.html {
#        }
#
#        error_page 500 502 503 504 /50x.html;
#            location = /50x.html {
#        }
#    }

}
# nginx # 运维
Logo
openEuler 社区

openEuler 是由开放原子开源基金会孵化的全场景开源操作系统项目，面向数字基础设施四大核心场景（服务器、云计算、边缘计算、嵌入式），全面支持 ARM、x86、RISC-V、loongArch、PowerPC、SW-64 等多样性计算架构

更多推荐

cover

Electron 打印原理深度解析-Day07

avatar openEuler 社区

vLLM 与 SGLang 推理框架性能横评

核心创新：PagedAttention 机制，类比操作系统虚拟内存管理，解决 KV Cache 内存碎片化问题。设计目标：最大化吞吐量，优化多用户、高并发场景下的服务效率。主要特性：连续批处理（Continuous Batching）、高效的内存管理、与 OpenAI API 兼容。技术趋势：注意力机制优化、计算与通信重叠、量化与稀疏化推理。框架演进方向：vLLM 对更复杂工作流的支持；SGLan

avatar openEuler 社区

Linux 系统基础框架详解：从零看懂操作系统的完整架构

本文阐述了Linux系统的分层架构及其重要性。Linux采用四层架构：硬件层提供基础资源；内核层统一管理硬件，负责进程、内存、文件系统和设备网络四大核心功能；工具依赖层将用户指令转化为内核请求；应用层运行各类业务程序。这种分层设计使Linux兼具稳定性和灵活性，配合用户权限体系形成完整安全机制。理解这一架构能帮助用户从根本上定位和解决系统问题，如进程异常、权限错误等，提升运维效率。掌握系统运行逻辑

avatar openEuler 社区
