一、kubekey方式

文章参考链接：

GitHub：https://github.com/kubesphere/kubekey

kubesphere：https://get-images.kubesphere.io

微信公众号：https://mp.weixin.qq.com/s/HacD-QPS-7TzlQsDlKnj8Q（云原生测试补给站）

下载kubekey

curl -sfL https://get-kk.kubesphere.io | VERSION=vx.xx.xx sh -	# x.xx.xx为版本号

由于下载网站再国外，国内网络下载可能会很慢或者下载不成功，可以采用下面方式下载：

① 官方方案（个人感觉不好用）

export KKZONE=cn 	# 设置变量
curl -sfL https://get-kk.kubesphere.io | VERSION=vx.xx.xx sh -	# x.xx.xx为版本号

② 个人推荐方案（手动下载后上传到服务器）

kubekey下载地址：https://github.com/kubesphere/kubekey/releases

tar zxvf kubekey-vx.xx.xx-*.tar.gz		# 解压软件包
./kk version		# 查看版本

生成配置信息

kubekey版本低于4.0

./kk version --show-supported-k8s

./kk create config --with-kubernetes vx.xx.xx		# x.xx.xx替换为你需要安装的k8s版本

生成 config-sample.yaml 文件，文件内容大致如下：(重点修改标颜色部分内容，name、ip地址、用户名和密码)

apiVersion: kubekey.kubesphere.io/v1alpha2
kind: Cluster
metadata:
  name: sample
spec:
  hosts:
  - {name: Master01, address: 192.168.0.6, internalAddress: 192.168.0.6, user: root, password: "QAZ@2wsx"}
  - {name: node01, address: 192.168.0.144, internalAddress: 192.168.0.144, user: root, password: "QAZ@2wsx"}
  - {name: node02, address: 192.168.0.121, internalAddress: 192.168.0.121, user: root, password: "QAZ@2wsx"}
  roleGroups:
    etcd:
    - Master01
    control-plane:
    - Master01
    worker:
    - node01
    - node02
  controlPlaneEndpoint:
    ## Internal loadbalancer for apiservers
    # internalLoadbalancer: haproxy

    domain: lb.kubesphere.local
    address: ""
    port: 6443
  kubernetes:
    version: v1.33.4
    clusterName: cluster.local
    autoRenewCerts: true
    containerManager: containerd
  etcd:
    type: kubekey
  network:
    plugin: calico
    kubePodsCIDR: 10.233.64.0/18
    kubeServiceCIDR: 10.233.0.0/18
    ## multus support. https://github.com/k8snetworkplumbingwg/multus-cni
    multusCNI:
      enabled: false
  registry:
    privateRegistry: ""
    namespaceOverride: ""
    registryMirrors: []
    insecureRegistries: []
  addons: []

kubekey版本高于4.0

./kk create inventory -o .

会生成 inventory.yaml ，文件内容如下：(重点修改标颜色部分内容)

apiVersion: kubekey.kubesphere.io/v1
kind: Inventory
metadata:
  name: default
spec:
  hosts: # your can set all nodes here. or set nodes on special groups.
    master01:			# 主机名
      connector:
        tyep: ssh
        host: 192.168.0.6
        port: 22
        user: root
        password: QAZ@2wsx
      internal_ipv4: 192.168.0.6
    node01:				# 主机名
      connector:
        type: ssh
        host: 192.168.0.144
        port: 22
        user: root
        password: QAZ@2wsx
      internal_ipv4: 192.168.0.144
    node02:			  # 主机名
      connector:
        type: ssh
        host: 192.168.0.121
        port: 22
        user: root
        password: QAZ@2wsx
      internal_ipv4: 192.168.0.121
  groups:
    # all kubernetes nodes.
    k8s_cluster:
      groups:
        - kube_control_plane
        - kube_worker
    # control_plane nodes
    kube_control_plane:
      hosts:
        - master01
    # worker nodes
    kube_worker:
      hosts:
        - master01
        - node01
        - node02
    # etcd nodes when etcd_deployment_type is external
    etcd:
      hosts:
        - master01
#    image_registry:
#      hosts:
#        - localhost
    # nfs nodes for registry storage. and kubernetes nfs storage
#    nfs:
#      hosts:
#        - localhost

./kk create config --with-kubernetes <Kubernetes version> -o .

会生成 config-.yaml ，文件内容如下:

apiVersion: kubekey.kubesphere.io/v1
kind: Config
spec:
  # If set to "cn", online downloads will prioritize domestic sources when available.
  zone: "cn"			## 此处很重要，如果填会导致你的镜像下载不成功
  kubernetes:
    # Specify the Kubernetes version to be installed.
    kube_version: v1.34.3
    # Specify the Helm version to be installed.
    helm_version: v3.18.5
    # Tag for the sandbox (pause) image used by pods.
    sandbox_image:
      tag: "3.10.1"
    control_plane_endpoint:
      # Supported HA types: local, kube-vip, haproxy.
      # If set to local, configure local hostname resolution as follows:
      #   - Control-plane nodes: 127.0.0.1  .kubernetes.control_plane_endpoint.host
      #   - Worker nodes:  .init_kubernetes_node  .kubernetes.control_plane_endpoint.host
      type: local
      # Kube-vip image tag used for static pod deployment (when type is kube-vip).
      kube_vip:
        image:
          tag: v0.7.2
      # HAProxy image tag used for static pod deployment (when type is haproxy).
      haproxy:
        image:
          tag: 2.9.6-alpine
  etcd:
    # Specify the etcd version to be installed.
    etcd_version: v3.6.5
  image_registry:
    # Image registry type to install. Supported: harbor, docker-registry.
    # Leave empty to skip installation (assuming an existing registry is available).
    type: ""
    # auth:
    #   # Address of the private image registry. Format: host:port/project
    #   # The port (if present) is used as http_port when plain_http=true,
    #   # or as https_port when plain_http=false.
    #   registry: "dockerhub.kubekey.local"
    #   # Use plain HTTP (no TLS). Default is false.
    #   plain_http: false
    #   username: admin
    #   password: Harbor12345
    # Specify a VIP for image registry high availability. If set, enables HA.
    ha_vip: ""
    # ========== Image Registry - High Availability ==========
    # keepalived image tag for load balancing when multiple registry nodes exist.
    # keepalived_version: 2.3.4
    # ========== Image Registry - Harbor ==========
    # Image registry port settings. Usually you do not need to set them manually;
    # they are derived from image_registry.auth.registry and plain_http.
    # http_port: 80
    # https_port: 443
    # Harbor image tag (only valid if type is harbor).
    #harbor_version: v2.10.2
    # docker-compose binary
    #dockercompose_version: v2.20.3
    # ========== Image Registry - Docker Registry ==========
    # Docker Registry image tag (only valid if type is docker-registry).
    # docker_registry_version: 2.8.3
  cri:
    # Container runtime type. Supported: containerd, docker.
    container_manager: containerd
    # ========== CRI Tool ==========
    # crictl binary version.
    crictl_version: v1.34.0
    # ========== Docker Runtime ==========
    # Docker binary version.
    #docker_version: 25.0.5
    # cridockerd version (required for Kubernetes 1.24+).
    # cridockerd_version: v0.3.21
    # ========== Containerd Runtime ==========
    # containerd binary version (active only when container_manager is containerd).
    # containerd_version: v1.7.13
    # runc binary version (active only when container_manager is containerd).
    # runc_version: v1.1.12
  cni:
    # CNI plugin type. Supported: calico, cilium, flannel, hybridnet, kubeovn, other
    type: calico
    # ========== Multi-CNI ==========
    # Multi-CNI type. Supported: multus, spiderpool, none.
    multi_cni: none
    # ========== Multi-CNI - Multus ==========
    # Image tag for Multus (configure if needed).
    # multus:
    #   image:
    #    tag: v4.2.4
    # ========== Multi-CNI - Spiderpool ==========
    # Spiderpool version (configure if needed).
    # spiderpool_version: v1.1.1
    # ========== Calico CNI ==========
    # Calico version (effective only when type is calico).
    calico_version: v3.31.3
    # ========== Cilium CNI ==========
    # Cilium version (effective only when type is cilium).
    # cilium_version: 1.19.1
    # ========== Flannel CNI ==========
    # Flannel version (effective only when type is flannel).
    #flannel_version: v0.27.4
    # ========== Kube-OVN CNI ==========
    # Kube-OVN version (effective only when type is kubeovn).
    #kubeovn_version: v1.15.0
    # ========== Hybridnet CNI ==========
    # Hybridnet version (effective only when type is hybridnet).
    #hybridnet_version: 0.6.8
  storage_class:
    # ========== Storage Class Configuration ==========
    # ========== Local/OpenEBS Storage Class ==========
    # Local storage class settings.
    local:
      enabled: true   # Enable the local storage class.
      default: true   # Set as the default storage class.
    # openebs/dynamic-localpv-provisioner helm chart version.
    localpv_provisioner_version: 4.4.0
    # ========== NFS Storage Class ==========
    nfs:
      enabled: false  # Enable the NFS storage class.
    # nfs-provisioner Helm chart version.
    #nfs_provisioner_version: 4.0.18
  dns:
    # CoreDNS settings.
    coredns:
      image:
        tag: v1.12.1
    # NodeLocalDNS settings.
    nodelocaldns:
      enabled: true
      image:
        tag: 1.26.4
  # the external images will to add in packages

初始化OS依赖

kubekey版本低于4.0

./kk init os -f config-sample.yaml

kubekey版本高于4.0

./kk init os -i inventory.yaml -c config-<Kubernetes version>.yaml

创建集群

kubekey版本低于4.0

./kk create cluster -f config-sample.yaml

kubekey版本高于4.0

./kk create cluster -i inventory.yaml -c config-<Kubernetes version>.yaml

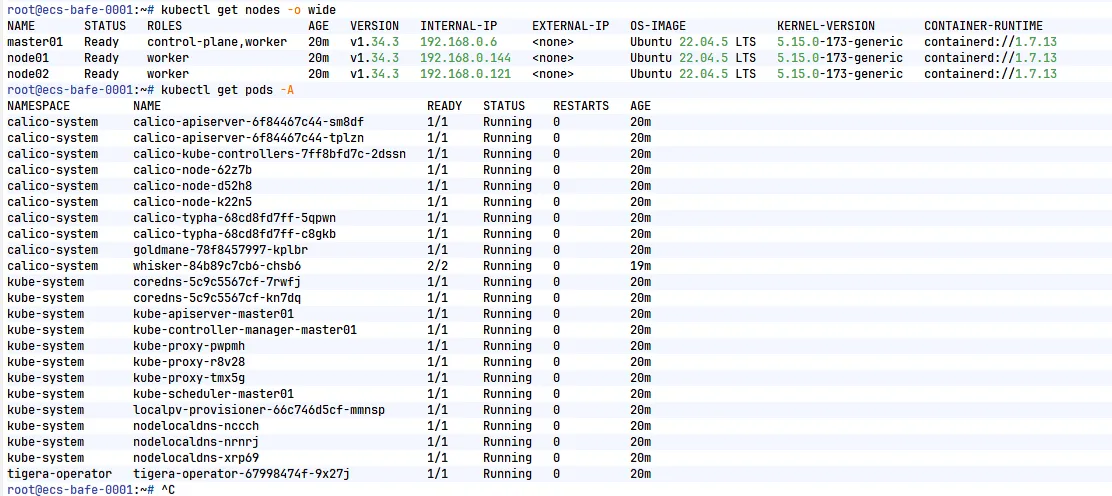

验证集群

kubectl get nodes -o wide
kubectl get pods _A

node节点状态均为Ready为正常，pod状态均为Running为正常

二、kubespray方式

文章参考链接：

roc 云原生：https://imroc.cc/kubernetes/deploy/kubespray/install

准备工作

下载kubespray

git clone --depth=1 https://github.com/kubernetes-sigs/kubespray.git

正常国内采用上面命令下载是不成功的，建议去github下载后上传到服务器

下载地址：https://github.com/kubernetes-sigs/kubespray/releases

# zip包解压
unzip kubespray-<kubespray version>.zip
# tar包解压
tra zxvf kubespray-<kubespray version>.zip

安装依赖

cd kubespray-<kubespray version>
pip3 install -r requirements.txt

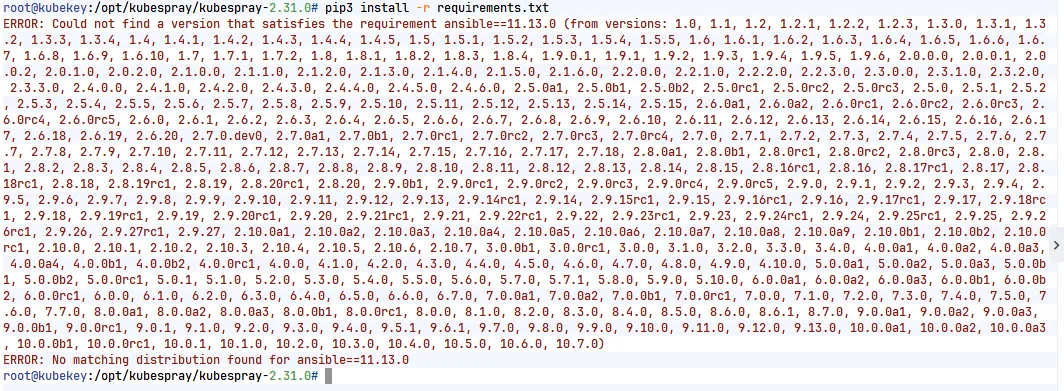

这里很容易出现下面的这种报错，这种报错原因是你的操作系统版本太低，kubespray版本太高的问题，换个高版本操作系统或者低版本kubespray就可以了

复制配置文件

cp -rfp inventory/sample inventory/mycluster

配置文件结构如下：

cd inventory
tree

.

├── local

│ ├── group_vars -> …/sample/group_vars

│ └── hosts.ini

├── mycluster

│ ├── group_vars

│ │ ├── all

│ │ │ ├── all.yml

│ │ │ ├── aws.yml

│ │ │ ├── azure.yml

│ │ │ ├── containerd.yml

│ │ │ ├── coreos.yml

│ │ │ ├── cri-o.yml

│ │ │ ├── docker.yml

│ │ │ ├── etcd.yml

│ │ │ ├── gcp.yml

│ │ │ ├── hcloud.yml

│ │ │ ├── huaweicloud.yml

│ │ │ ├── oci.yml

│ │ │ ├── offline.yml

│ │ │ ├── openstack.yml

│ │ │ ├── upcloud.yml

│ │ │ └── vsphere.yml

│ │ └── k8s_cluster

│ │ ├── addons.yml

│ │ ├── k8s-cluster.yml

│ │ ├── k8s-net-calico.yml

│ │ ├── k8s-net-cilium.yml

│ │ ├── k8s-net-custom-cni.yml

│ │ ├── k8s-net-flannel.yml

│ │ ├── k8s-net-kube-ovn.yml

│ │ ├── k8s-net-kube-router.yml

│ │ ├── k8s-net-macvlan.yml

│ │ └── kube_control_plane.yml

│ └── inventory.ini

└── sample

├── group_vars

│   ├── all

│   │   ├── all.yml

│   │   ├── aws.yml

│   │   ├── azure.yml

│   │   ├── containerd.yml

│   │   ├── coreos.yml

│   │   ├── cri-o.yml

│   │   ├── docker.yml

│   │   ├── etcd.yml

│   │   ├── gcp.yml

│   │   ├── hcloud.yml

│   │   ├── huaweicloud.yml

│   │   ├── oci.yml

│   │   ├── offline.yml

│   │   ├── openstack.yml

│   │   ├── upcloud.yml

│   │   └── vsphere.yml

│   └── k8s_cluster

│       ├── addons.yml

│       ├── k8s-cluster.yml

│       ├── k8s-net-calico.yml

│       ├── k8s-net-cilium.yml

│       ├── k8s-net-custom-cni.yml

│       ├── k8s-net-flannel.yml

│       ├── k8s-net-kube-ovn.yml

│       ├── k8s-net-kube-router.yml

│       ├── k8s-net-macvlan.yml

│       └── kube_control_plane.yml

└── inventory.ini

10 directories, 55 files

修改配置文件

基本配置修改

配置文件：inventory/mycluster/group_vars/k8s_cluster/k8s-cluster.yml

# 选择网络插件，支持 cilium, calico, weave 和 flannel
kube_network_plugin: calico

# 设置 Service 网段
kube_service_addresses: 10.233.0.0/18

# 设置 Pod 网段
kube_pods_subnet: 10.233.64.0/18

# 支持 docker, crio 和 containerd，推荐 containerd.
container_manager: containerd

# 是否开启 kata containers
kata_containers_enabled: false

# 是否开启自动更新证书，推荐开启。
auto_renew_certificates: true

准备机器列表

配置文件：inventory/mycluster/inventory.ini

[all]
master01 ansible_host=192.168.0.6
node01 ansible_host=192.168.0.144
node02 ansible_host=192.168.0.121

[all:vars]
ansible_user=root
ansible_password=QAZ@2wsx

[kube_control_plane]
master01

[etcd]
master01

[kube_node]
master01
node01
node02


[calico_rr]

[k8s_cluster:children]
kube_control_plane
kube_node
calico_rr

使用密码登录需要安装sshpass才能正常执行

旧版本系统：
sudo yum -y install sshpass
新版本系统：
sudo dnf -y install sshpass

sudo apt -y install sshpass

国内离线包准备（如果可以正常下载国外镜像此节点可忽略）

下载镜像及软件包

生成依赖文件和镜像列表

cd contrib/offline
bash generate_list.sh

生成之后正常可以看到下内容

files.list 是依赖文件的列表

images.list 是依赖镜像的列表

下载静态文件

wget -x -P temp/files -i temp/files.list

设置下载服务（为了方便安装的时候可以通过自己的服务进行下载）

安装nginx

  旧版本系统：
  sudo yum -y install nginx
  新版本系统：
  sudo dnf -y install nginx

设置nginx配置文件

配置文件目录：**/etc/nginx/conf.d/download.conf **没有这个文件可以创建这个文件

server {
    # 监听端口，如果 80 被占用或没有公网 IP，可以改为 8080 等高位端口
    listen       80;

    # 如果有域名填域名，没有域名填 localhost 或您的内网 IP
    server_name  localhost;

    # 定义下载路径，访问 http://IP/download/ 即可看到文件列表
    location /download/ {
        # 【核心】指定本地文件的绝对路径
        # Windows 用户注意：路径请使用正斜杠 / 或双反斜杠 \\，例如：D:/my_share_files/ 或 D:\\my_share_files\\
        # Linux 用户注意：路径末尾必须带斜杠，例如：/data/my_share_files/
        alias /root/kubespray/contrib/offline/temp/files/;

        # 【核心】开启目录浏览功能（像 FTP 一样显示文件列表）
        autoindex on;
        autoindex_exact_size off; # 显示文件大小（KB/MB），而不是精确的字节数
        autoindex_localtime on;   # 显示文件时间为服务器本地时间

        # 解决中文文件名/目录名乱码问题
        charset utf-8;

        # 大文件下载优化（防止下载大文件时内存占用过高或超时）
        sendfile on;
        tcp_nopush on;
        tcp_nodelay on;
        keepalive_timeout 300; # 增加超时时间，防止大文件下载中断
    }
}

启动nginx

nginx -t			# 检测配置文件内容是否正确
systemctl restart nginx

修改配置文件

配置文件路径：inventory/mycluster/group_vars/all/offline.yml，可以按照以下修改，具体版本不同需要的内容不通

# 可以修改成自己的镜像仓库
registry_host: "swr.cn-north-4.myhuaweicloud.com/ddn-k8s/"
# 修改成自己nginx服务器的IP地址+目录
files_repo: "http://IP/download/"
### If using CentOS, RedHat, AlmaLinux or Fedora
# yum_repo: "http://myinternalyumrepo"
### If using Debian
# debian_repo: "http://myinternaldebianrepo"
### If using Ubuntu
# ubuntu_repo: "http://myinternalubunturepo"

## Container Registry overrides
# 参考以下内容修改，如果你有镜像仓库可以略微修改下
kube_image_repo: "{{ registry_host/registry.k8s.io }}"
gcr_image_repo: "{{ registry_host/gcr.io }}"
github_image_repo: "{{ registry_host/ghcr.io }}"
docker_image_repo: "{{ registry_host/docker.io }}"
quay_image_repo: "{{ registry_host/quay.io }}"

## Kubernetes components
kubeadm_download_url: "{{ files_repo }}/dl.k8s.io/release/v{{ kube_version }}/bin/linux/{{ image_arch }}/kubeadm"
kubectl_download_url: "{{ files_repo }}/dl.k8s.io/release/v{{ kube_version }}/bin/linux/{{ image_arch }}/kubectl"
kubelet_download_url: "{{ files_repo }}/dl.k8s.io/release/v{{ kube_version }}/bin/linux/{{ image_arch }}/kubelet"


## Two options - Override entire repository or override only a single binary.

## [Optional] 1 - Override entire binary repository
# github_url: "https://my_github_proxy"
# dl_k8s_io_url: "https://my_dl_k8s_io_proxy"
# storage_googleapis_url: "https://my_storage_googleapi_proxy"
# get_helm_url: "https://my_helm_sh_proxy"

## [Optional] 2 - Override a specific binary
## CNI Plugins
cni_download_url: "{{ files_repo }}/github.com/containernetworking/plugins/releases/download/v{{ cni_version }}/cni-plugins-linux-{{ image_arch }}-v{{ cni_version }}.tgz"

## cri-tools
crictl_download_url: "{{ files_repo }}/github.com/kubernetes-sigs/cri-tools/releases/download/v{{ crictl_version }}/crictl-v{{ crictl_version }}-{{ ansible_system | lower }}-{{ image_arch }}.tar.gz"

## [Optional] etcd: only if you use etcd_deployment=host
etcd_download_url: "{{ files_repo }}/github.com/etcd-io/etcd/releases/download/v{{ etcd_version }}/etcd-v{{ etcd_version }}-linux-{{ image_arch }}.tar.gz"

# [Optional] Calico: If using Calico network plugin
calicoctl_download_url: "{{ files_repo }}/github.com/projectcalico/calico/releases/download/v{{ calico_ctl_version }}/calicoctl-linux-{{ image_arch }}"
# [Optional] Calico with kdd: If using Calico network plugin with kdd datastore
calico_crds_download_url: "{{ files_repo }}/github.com/projectcalico/calico/archive/v{{ calico_version }}.tar.gz"

# [Optional] Cilium: If using Cilium network plugin
ciliumcli_download_url: "{{ files_repo }}/github.com/cilium/cilium-cli/releases/download/v{{ cilium_cli_version }}/cilium-linux-{{ image_arch }}.tar.gz"

# [Optional] helm: only if you set helm_enabled: true
helm_download_url: "{{ files_repo }}/get.helm.sh/helm-v{{ helm_version }}-linux-{{ image_arch }}.tar.gz"

# [Optional] crun: only if you set crun_enabled: true
crun_download_url: "{{ files_repo }}/github.com/containers/crun/releases/download/{{ crun_version }}/crun-{{ crun_version }}-linux-{{ image_arch }}"

# [Optional] kata: only if you set kata_containers_enabled: true
kata_containers_download_url: "{{ files_repo }}/github.com/kata-containers/kata-containers/releases/download/{{ kata_containers_version }}/kata-static-{{ kata_containers_version }}-{{ image_arch }}.tar.xz"

# [Optional] cri-dockerd: only if you set container_manager: docker
cri_dockerd_download_url: "{{ files_repo }}/github.com/Mirantis/cri-dockerd/releases/download/v{{ cri_dockerd_version }}/cri-dockerd-{{ cri_dockerd_version }}.{{ image_arch }}.tgz"

# [Optional] runc: if you set container_manager to containerd or crio
runc_download_url: "{{ files_repo }}/github.com/opencontainers/runc/releases/download/v{{ runc_version }}/runc.{{ image_arch }}"

# [Optional] cri-o: only if you set container_manager: crio
# crio_download_base: "download.opensuse.org/repositories/devel:kubic:libcontainers:stable"
# crio_download_crio: "http://{{ crio_download_base }}:/cri-o:/"
crio_download_url: "{{ files_repo }}/storage.googleapis.com/cri-o/artifacts/cri-o.{{ image_arch }}.v{{ crio_version }}.tar.gz"
skopeo_download_url: "{{ files_repo }}/github.com/lework/skopeo-binary/releases/download/v{{ skopeo_version }}/skopeo-linux-{{ image_arch }}"

# [Optional] containerd: only if you set container_runtime: containerd
containerd_download_url: "{{ files_repo }}/github.com/containerd/containerd/releases/download/v{{ containerd_version }}/containerd-{{ containerd_version }}-linux-{{ image_arch }}.tar.gz"
nerdctl_download_url: "{{ files_repo }}/github.com/containerd/nerdctl/releases/download/v{{ nerdctl_version }}/nerdctl-{{ nerdctl_version }}-{{ ansible_system | lower }}-{{ image_arch }}.tar.gz"

# [Optional] runsc,containerd-shim-runsc: only if you set gvisor_enabled: true
gvisor_runsc_download_url: "{{ files_repo }}/storage.googleapis.com/gvisor/releases/release/{{ gvisor_version }}/{{ ansible_architecture }}/runsc"
gvisor_containerd_shim_runsc_download_url: "{{ files_repo }}/storage.googleapis.com/gvisor/releases/release/{{ gvisor_version }}/{{ ansible_architecture }}/containerd-shim-runsc-v1"

部署集群

# 回到kubespray主目录再执行下面命令
ansible-playbook \
  -i inventory/mycluster/inventory.ini \
  cluster.yml

验证集群

kubectl get nodes -o wide
kubectl get pods _A

node节点状态均为Ready为正常，pod状态均为Running为正常
