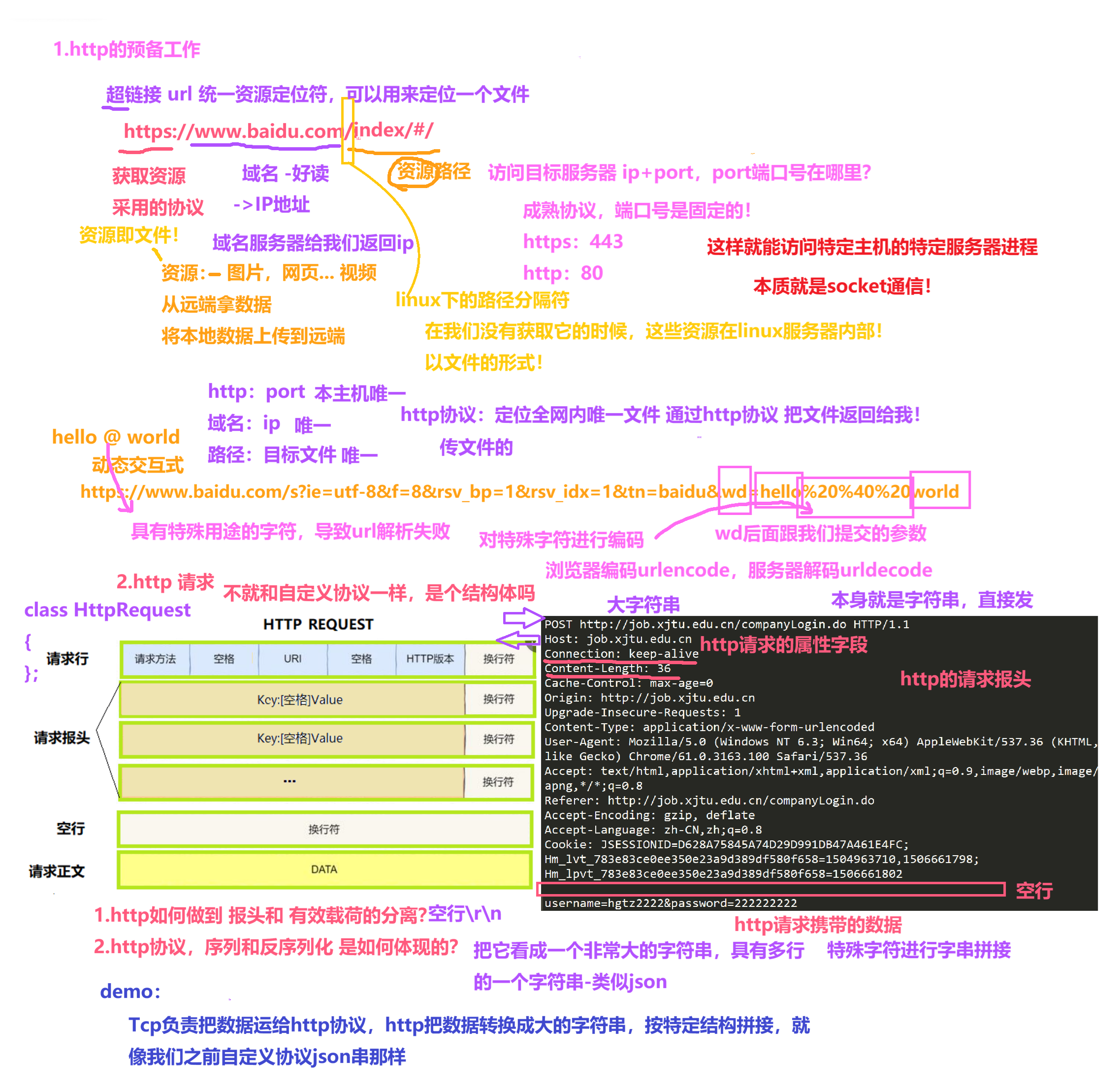

应用层协议HTTP

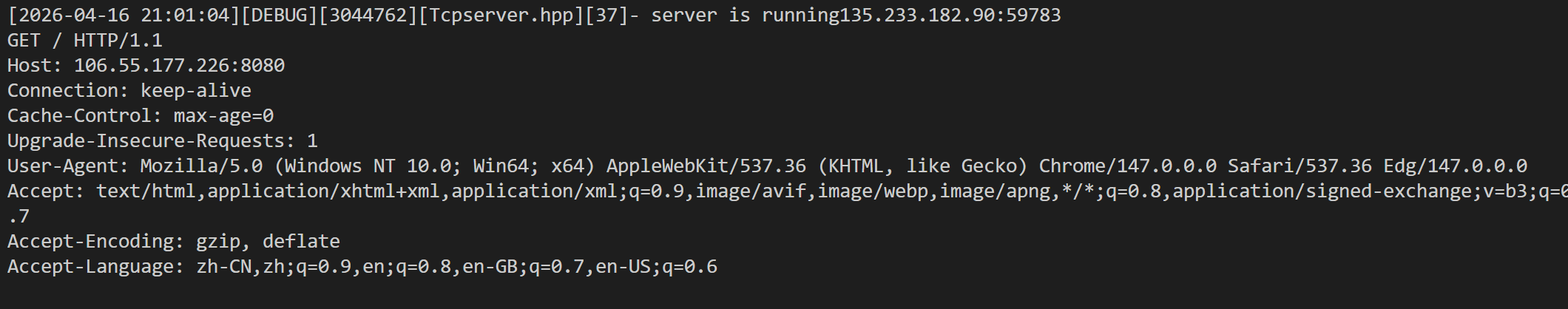

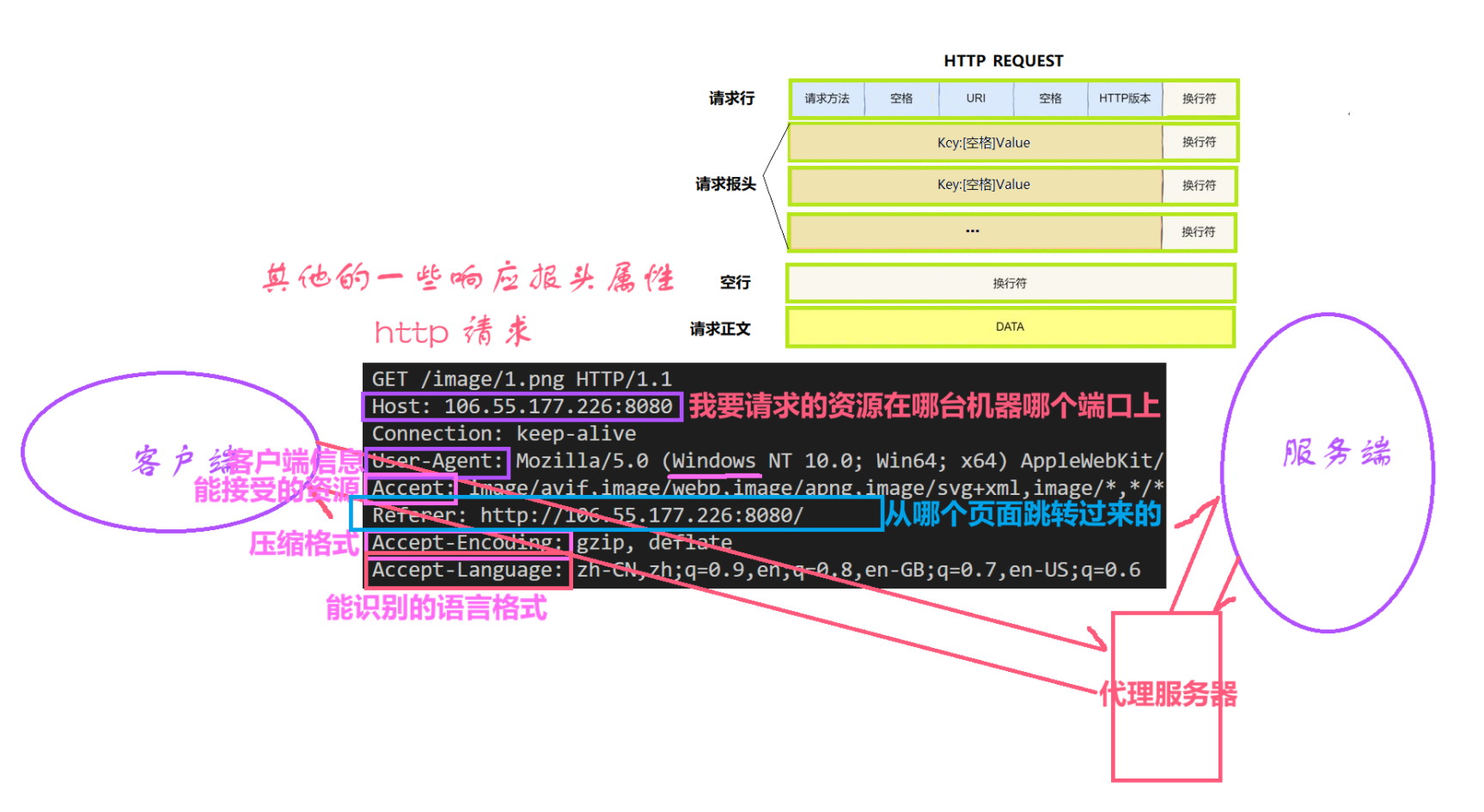

此时服务器就能看浏览器发来的请求-序列化的长字符串。
·



此时服务器就能看浏览器发来的请求-序列化的长字符串

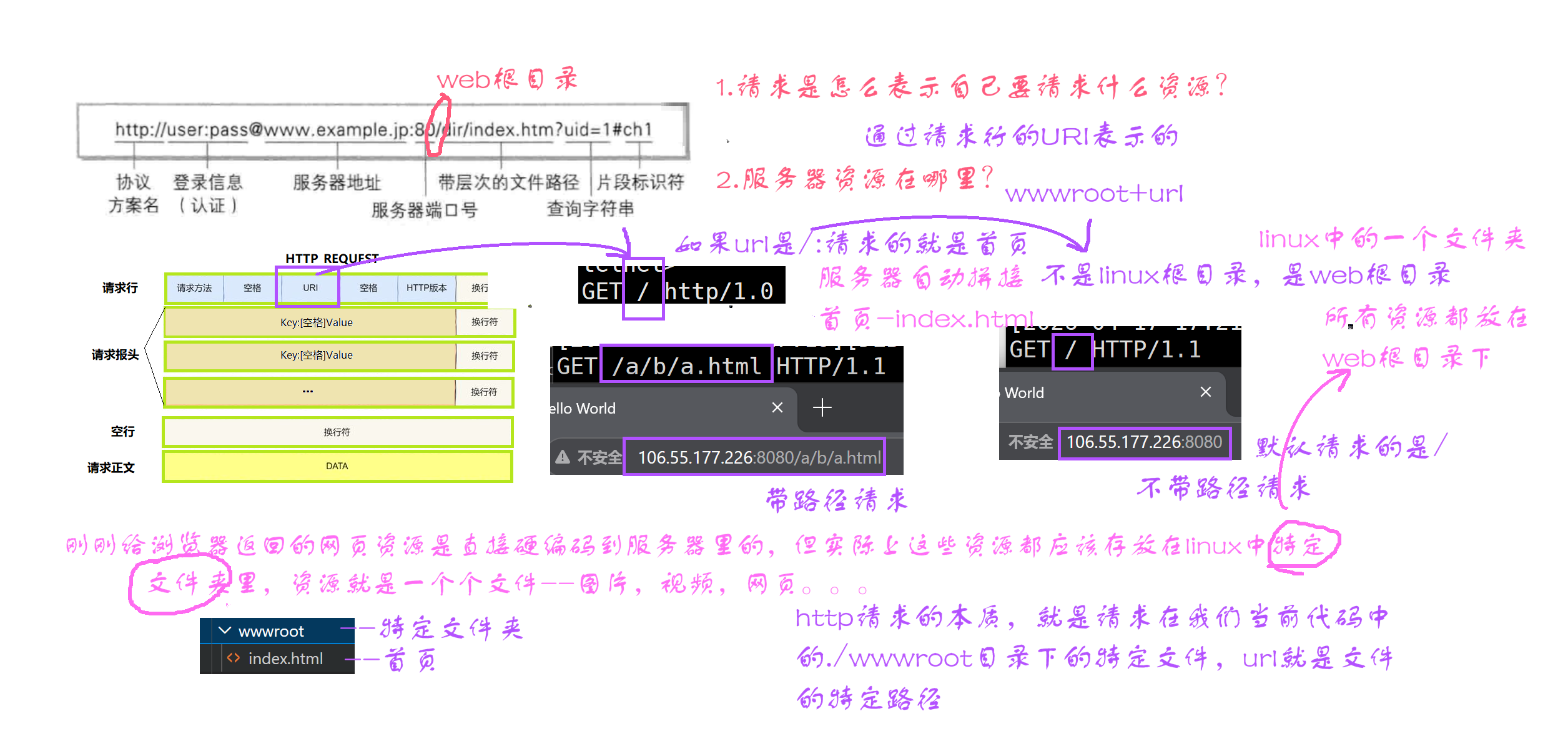

利用a标签可以进行跳转,浏览器二次发起请求,请求的资源,都是http请求的uri表示的






![]()










接下来就转移到业务处理模块了





Http.hpp
#pragma once
// 先来一个tcp服务器
#include "Tcpserver.hpp"
#include <memory>
#include <iostream>
#include "Log.hpp"
#include <string>
#include "Socket.hpp"
#include "Util.hpp"
#include <sstream>
#include <functional>
#include <unordered_map>
using namespace SocketModule;
using namespace LogModule;
const std::string gspace = " ";
const std::string glinespace = "\r\n";
const std::string glinesep = ": ";
// web根目录
const std::string webroot = "./wwwroot";
// 首页
const std::string homepage = "/index.html";
// 错误页面

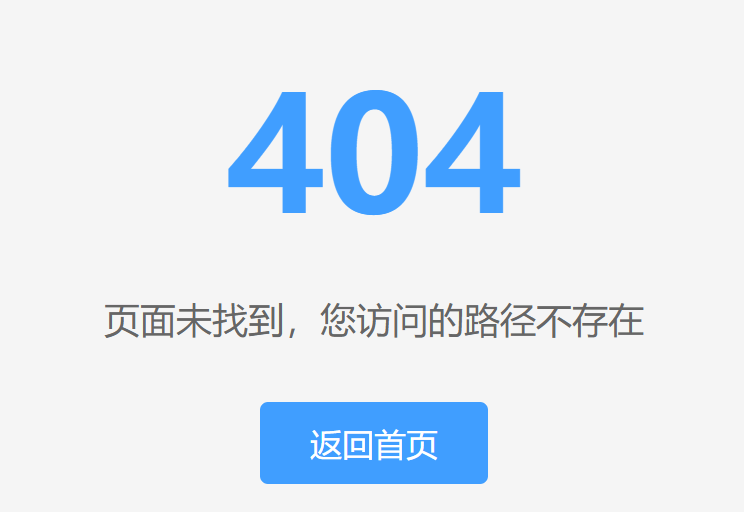

const std::string page_404 = "/page_404.html";
// http的请求协议

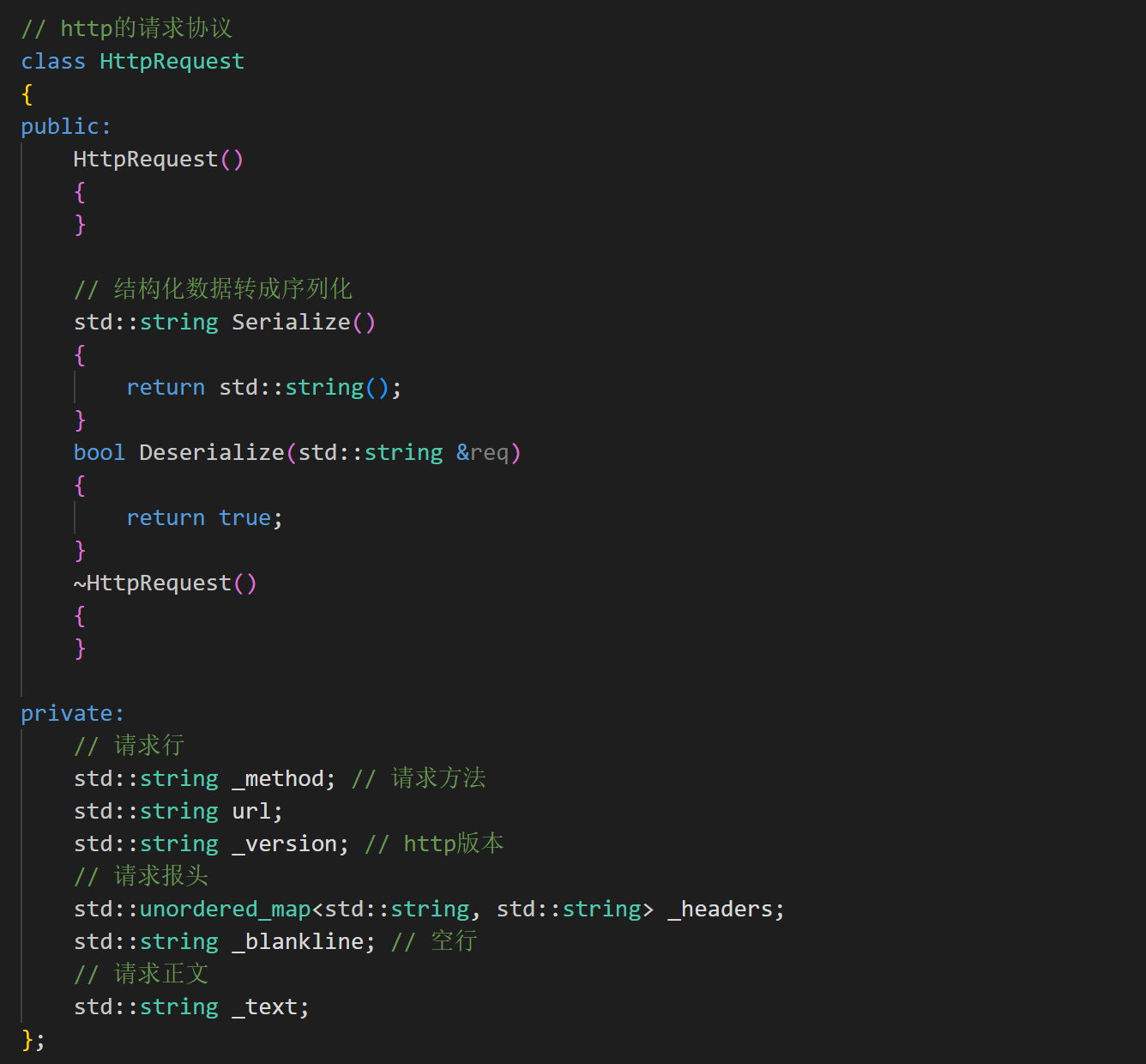

class HttpRequest
{
public:
HttpRequest() : _is_interact(false)
{
}
// 浏览器把 结构化数据转成序列化 给 我们发送--我们不写
std::string Serialize()
{
return std::string();
}

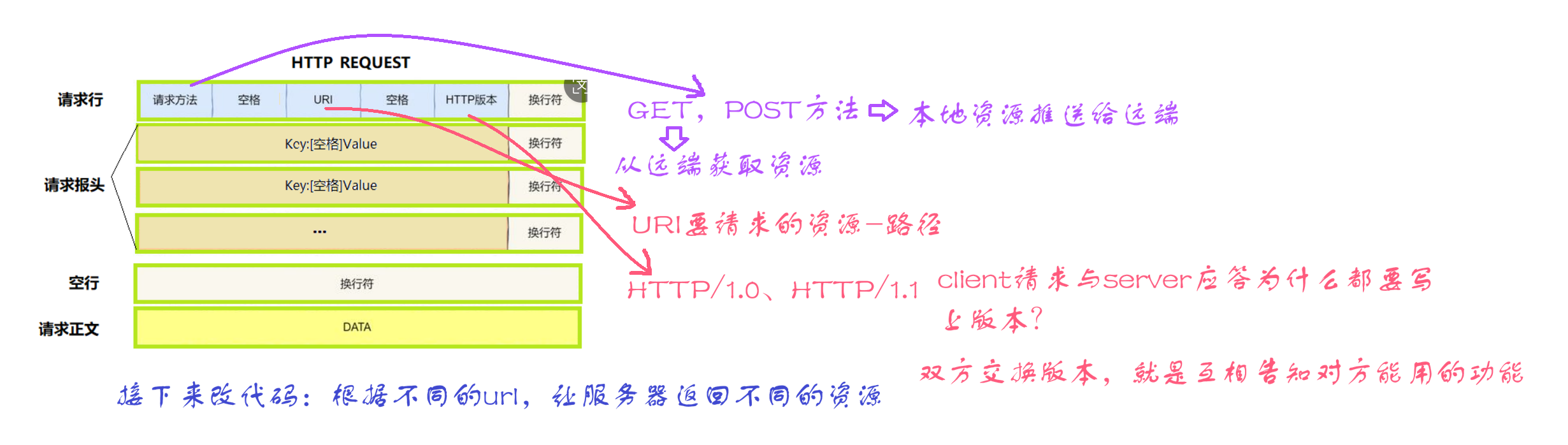

// 把请求行 反序列化 空格为单位 _method url _version
void ParseReqLine(std::string &line)
{
std::stringstream ss(line);
ss >> _method >> _url >> _version;
}
bool Deserialize(std::string &req)// 我们服务器解析 浏览器的请求,要反序列化--我们写
{
// 对完整请求报文 做反序列化
// 1.提取请求行
std::string line;
bool res = Util::ReadOneLine(req, &line, glinespace);
LOG(LogLevel::DEBUG) << "成功读取请求行";
// 2.对提取到的请求行进行反序列化
ParseReqLine(line);

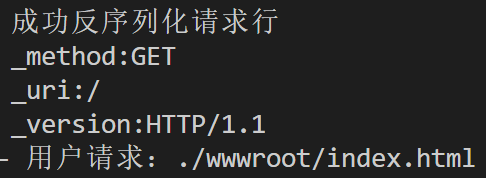

LOG(LogLevel::DEBUG) << "成功反序列化请求行";
LOG(LogLevel::DEBUG) << "_method:" << _method;
LOG(LogLevel::DEBUG) << "_uri:" << _url;
LOG(LogLevel::DEBUG) << "_version:" << _version;
if (_url == "/")
_url = webroot + homepage;
else
_url = webroot + _url;

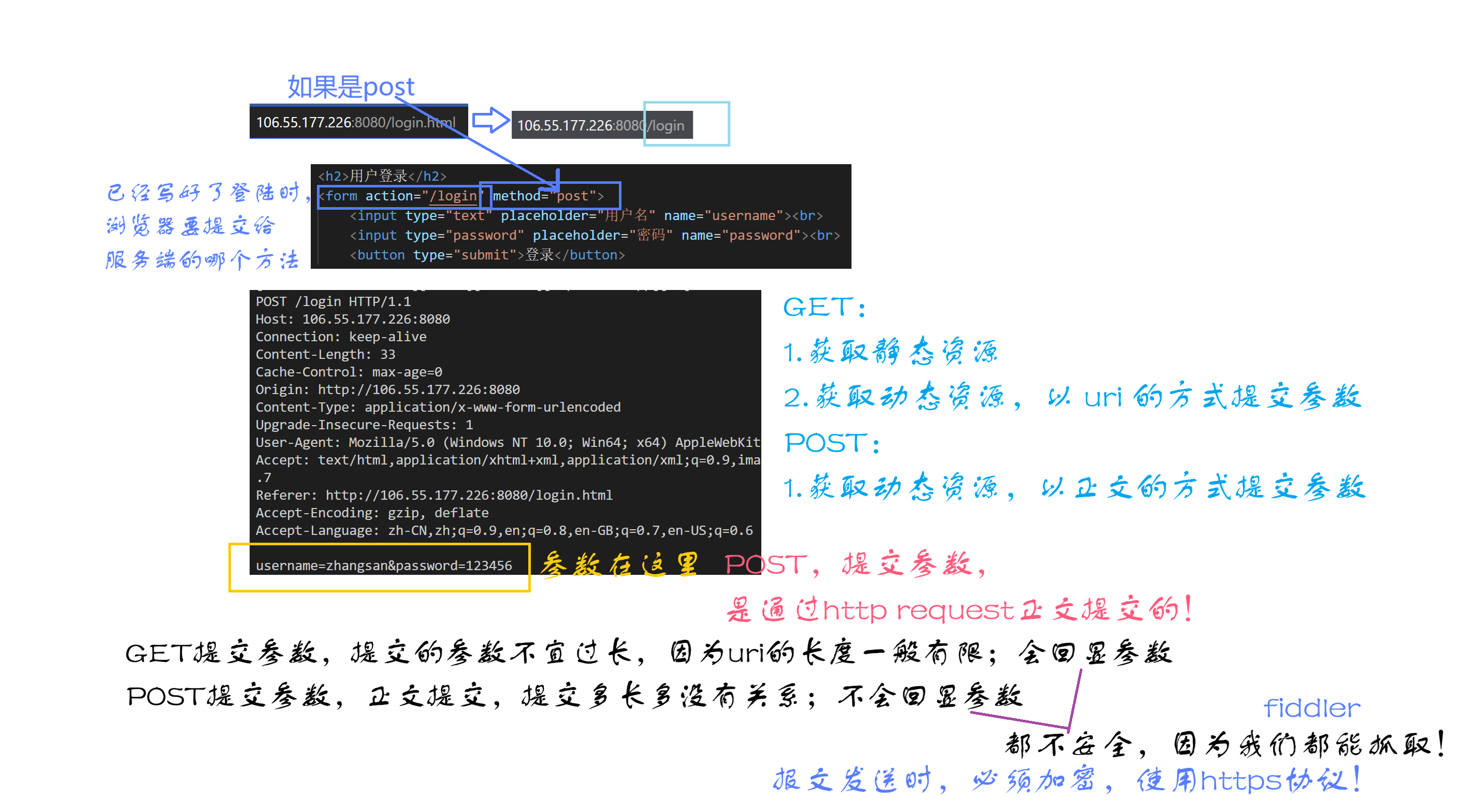

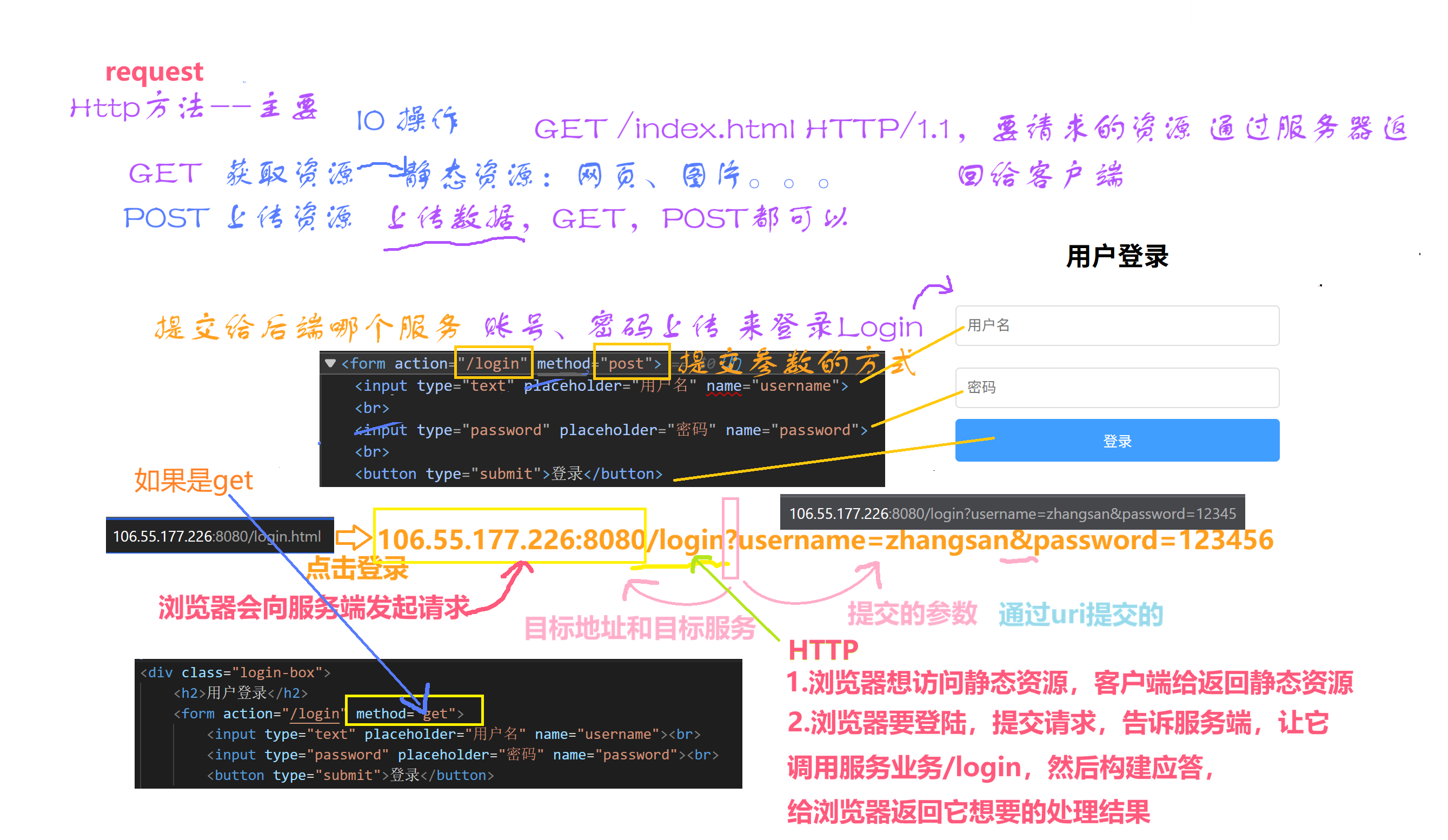

// uri可能带参数 ./wwwroot/login?username=zhangsan&password=12345
const std::string temp = "?";
auto pos = _url.find(temp);
if (pos == std::string::npos)
{
return true;
}
//走到这,说明带参数,需要动态交互,让服务端处理 /login服务
// ./wwwroot/login username=zhangsan&password=12345
_args = _url.substr(pos + temp.size());
_url = _url.substr(0, pos);
_is_interact = true;
return true;
}
std::string Uri()
{
return _url;
}
bool IsInteract()
{
return _is_interact;
}
std::string Args()
{
return _args;
}
~HttpRequest()
{
}
private:
// 请求行
std::string _method; // 请求方法
std::string _url;
std::string _version; // http版本
// 请求报头
std::unordered_map<std::string, std::string> _headers;
std::string _blankline; // 空行
// 请求正文
std::string _text;
bool _is_interact; // 是否需要交互
std::string _args;
};

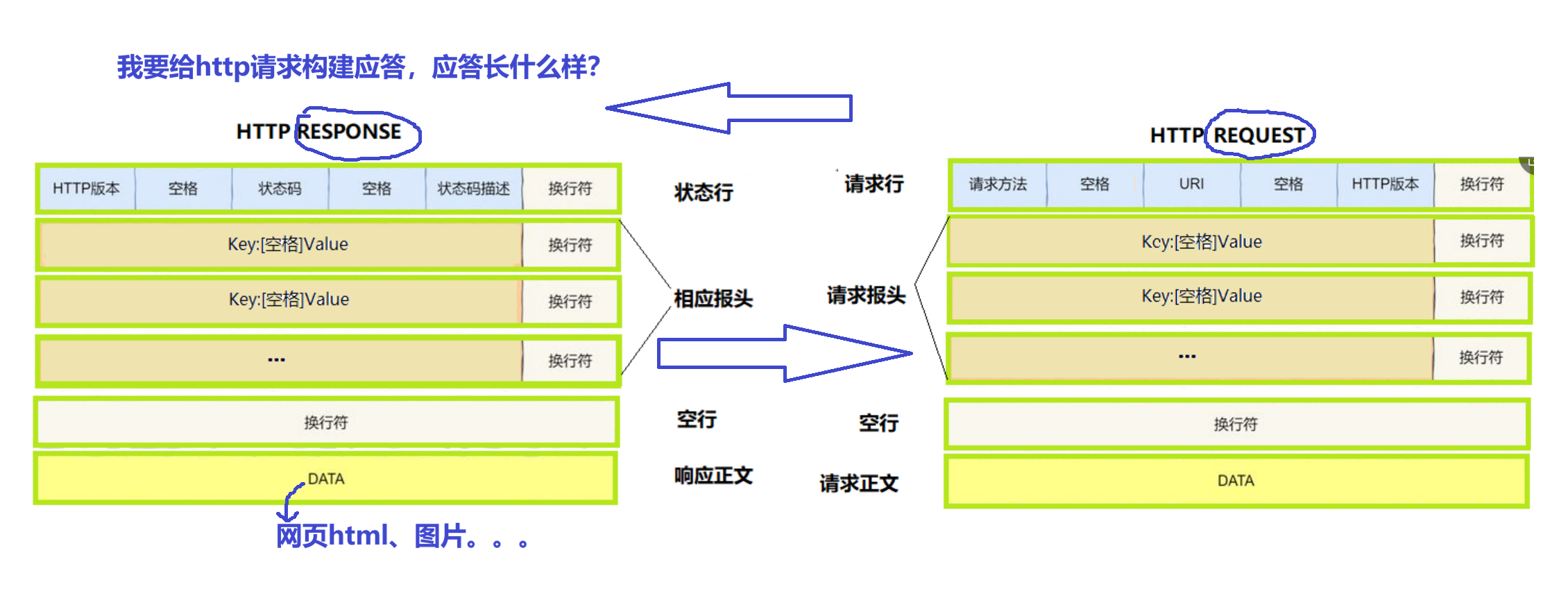

// http的应答协议--我们服务器

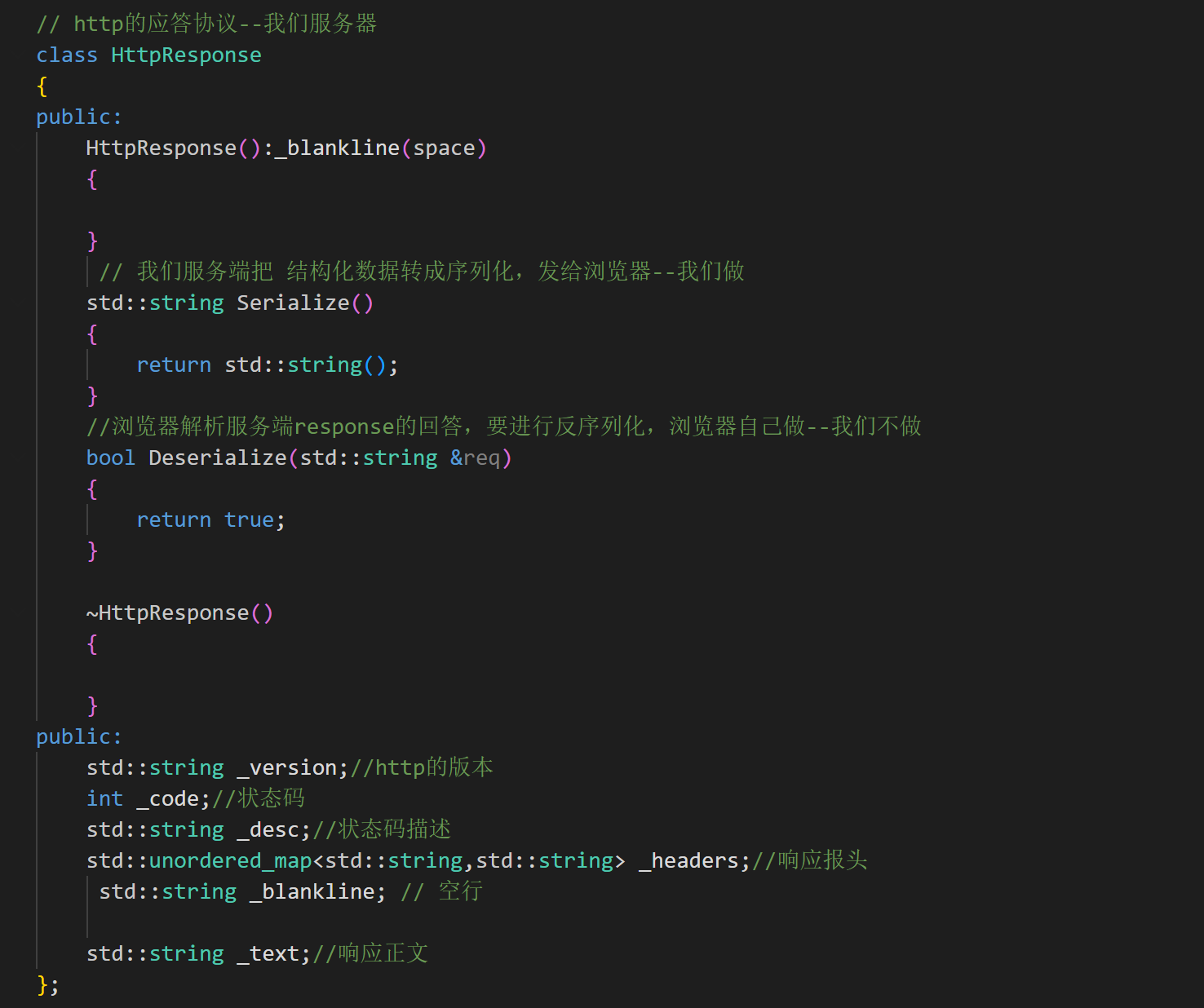

class HttpResponse
{
public:
HttpResponse() : _blankline(glinespace), _version("Http/1.0")
{
}
// 我们服务端把 结构化应答 转成序列化,发给浏览器--我们做

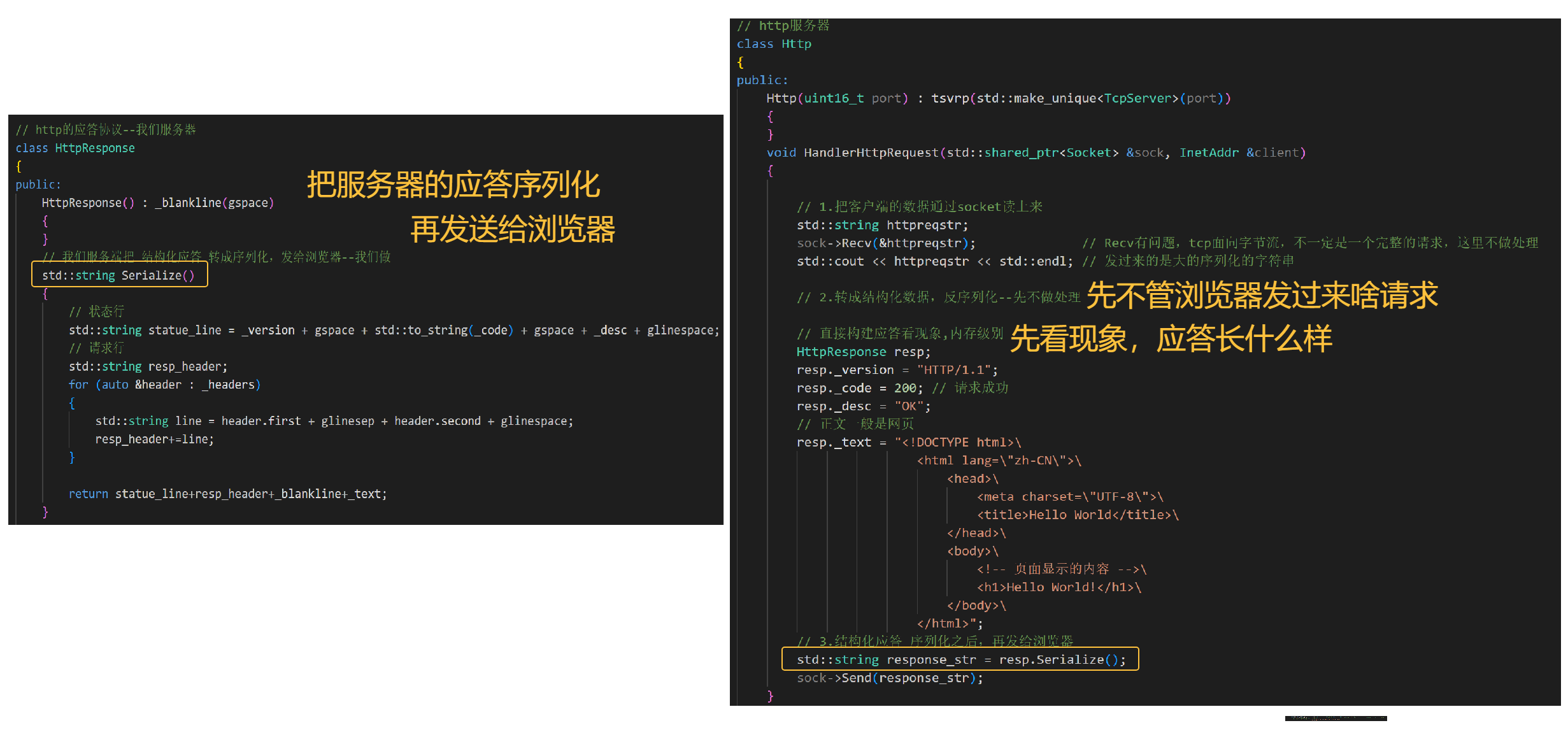

std::string Serialize()
{
// 状态行
std::string statue_line = _version + gspace + std::to_string(_code) + gspace + _desc + glinespace;
// 响应报头
std::string resp_header;
for (auto &header : _headers)
{
std::string line = header.first + glinesep + header.second + glinespace;
resp_header += line;
}
return statue_line + resp_header + _blankline + _text;
}
// 浏览器解析服务端response的回答,要进行反序列化,浏览器自己做--我们不做
bool Deserialize(std::string &req)
{
return true;
}
// 设置目标资源
void SetTargetFile(const std::string &target)
{
_targetfile = target;
}
void SetCode(int code)
{
_code = code;
switch (_code)
{
case 200:
_desc = "OK";
break;
case 404:
_desc = "not found";
break;

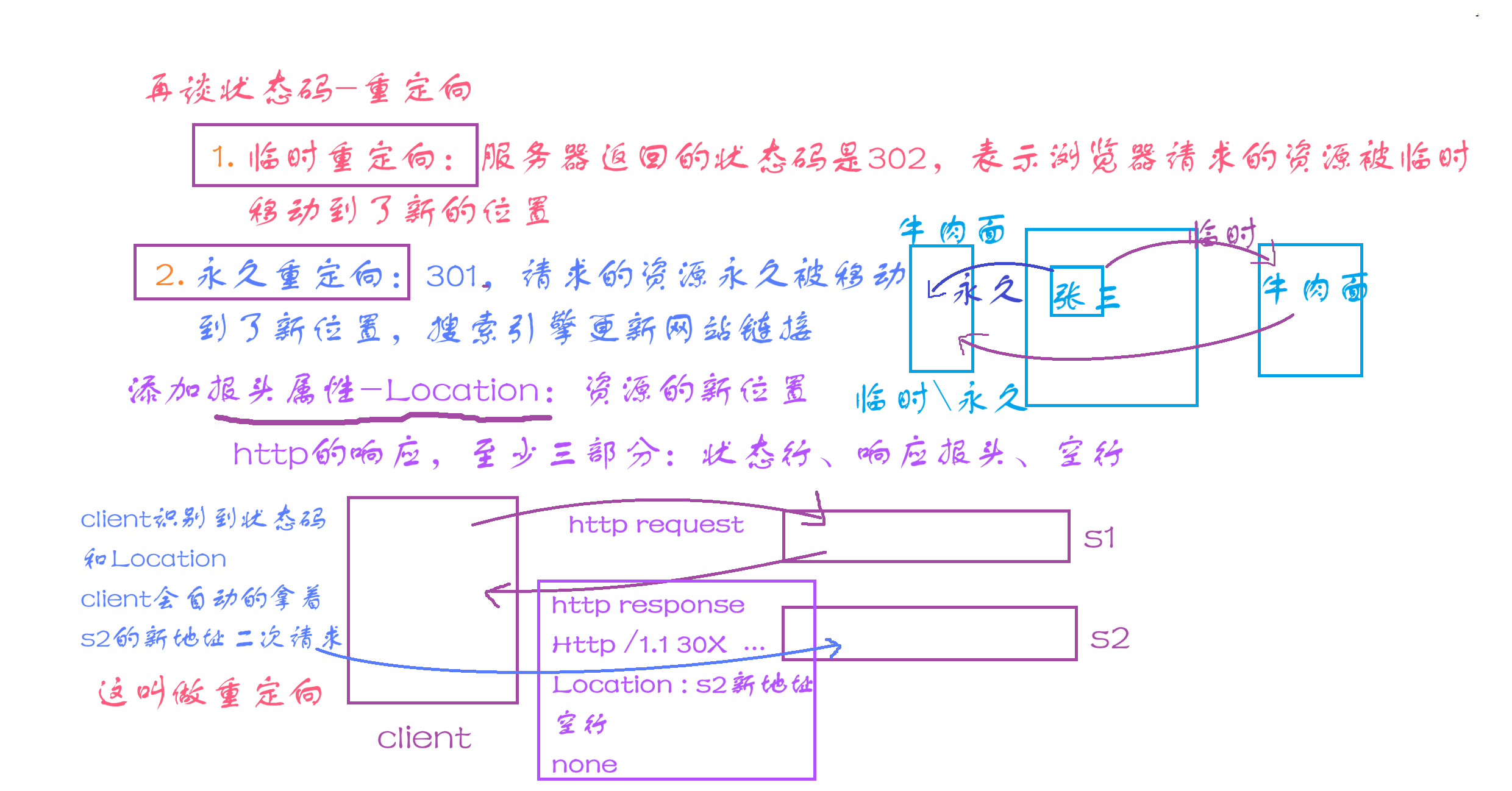

case 302:
_desc = "see other";
break;
case 301:
_desc = "临时重定向";
break;
default:
break;
}
}

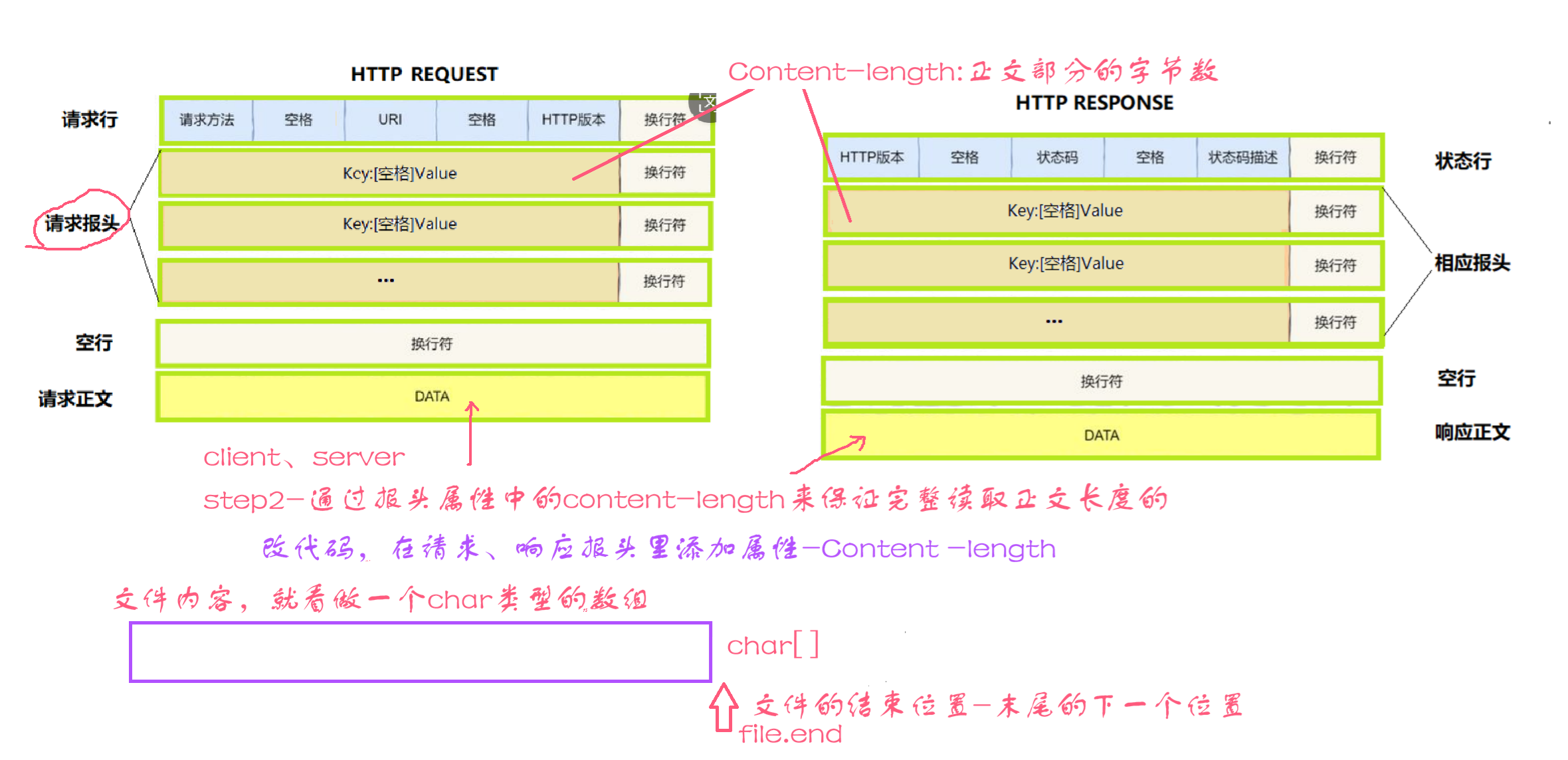

// 在响应报头 _header 里 添加content-length。。。属性
void SetHander(const std::string &key, const std::string &value)
{
auto iter = _headers.find(key);
if (iter != _headers.end())
return;
_headers.insert(std::make_pair(key, value));
}

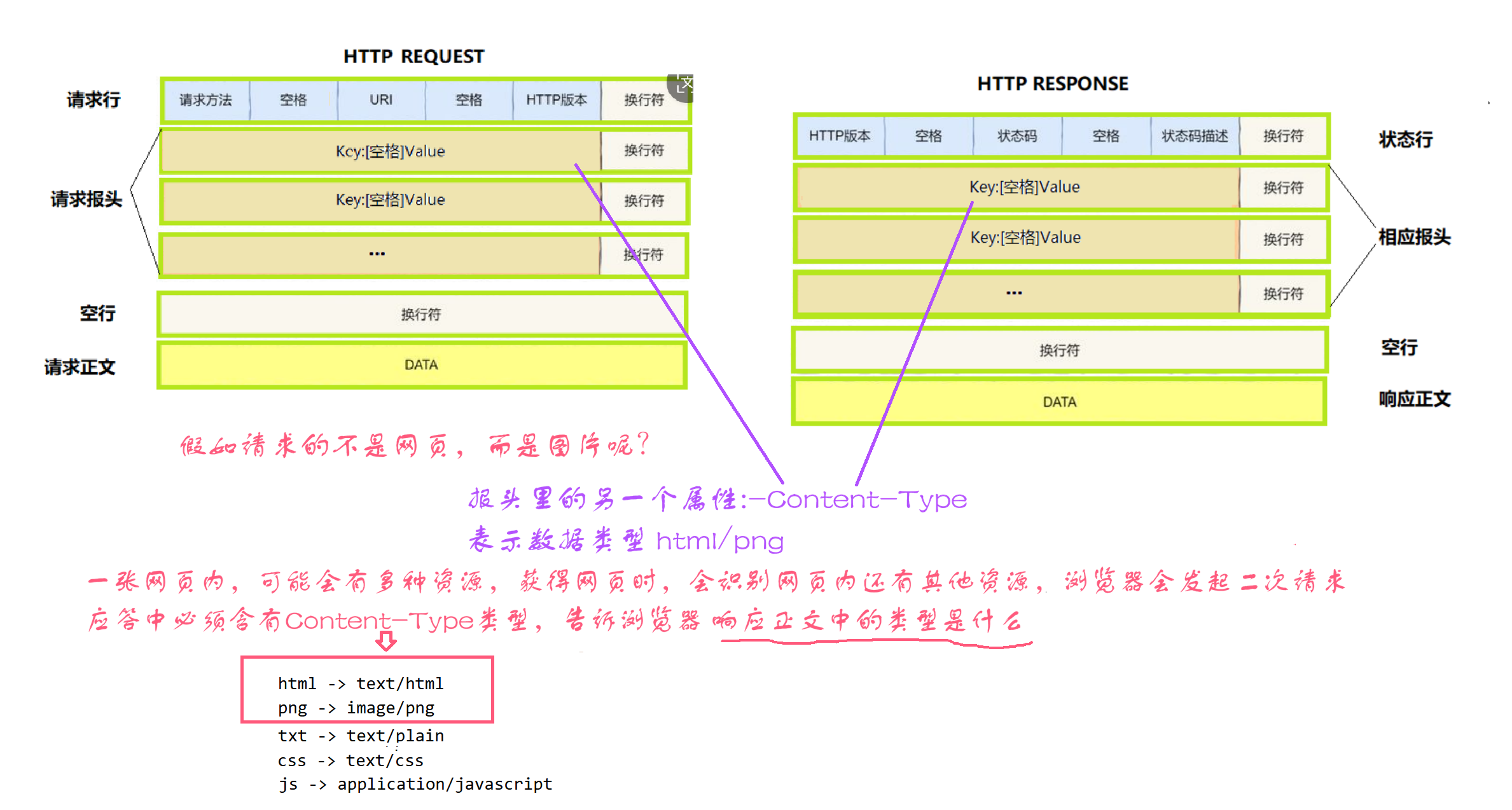

// 提取请求资源的 content-type属性
std::string SetSuffix(std::string targetfile)
{
auto pos = targetfile.rfind(".");
if (pos == std::string::npos)
{
return "text/html";
}
std::string suffix = targetfile.substr(pos);
// 后缀转化,编与构建应答报头
if (suffix == ".html")
return "text/html";
else if (suffix == ".png")
return "image/png";
else
return "";
}
// 这样要访问的资源不存在也ok

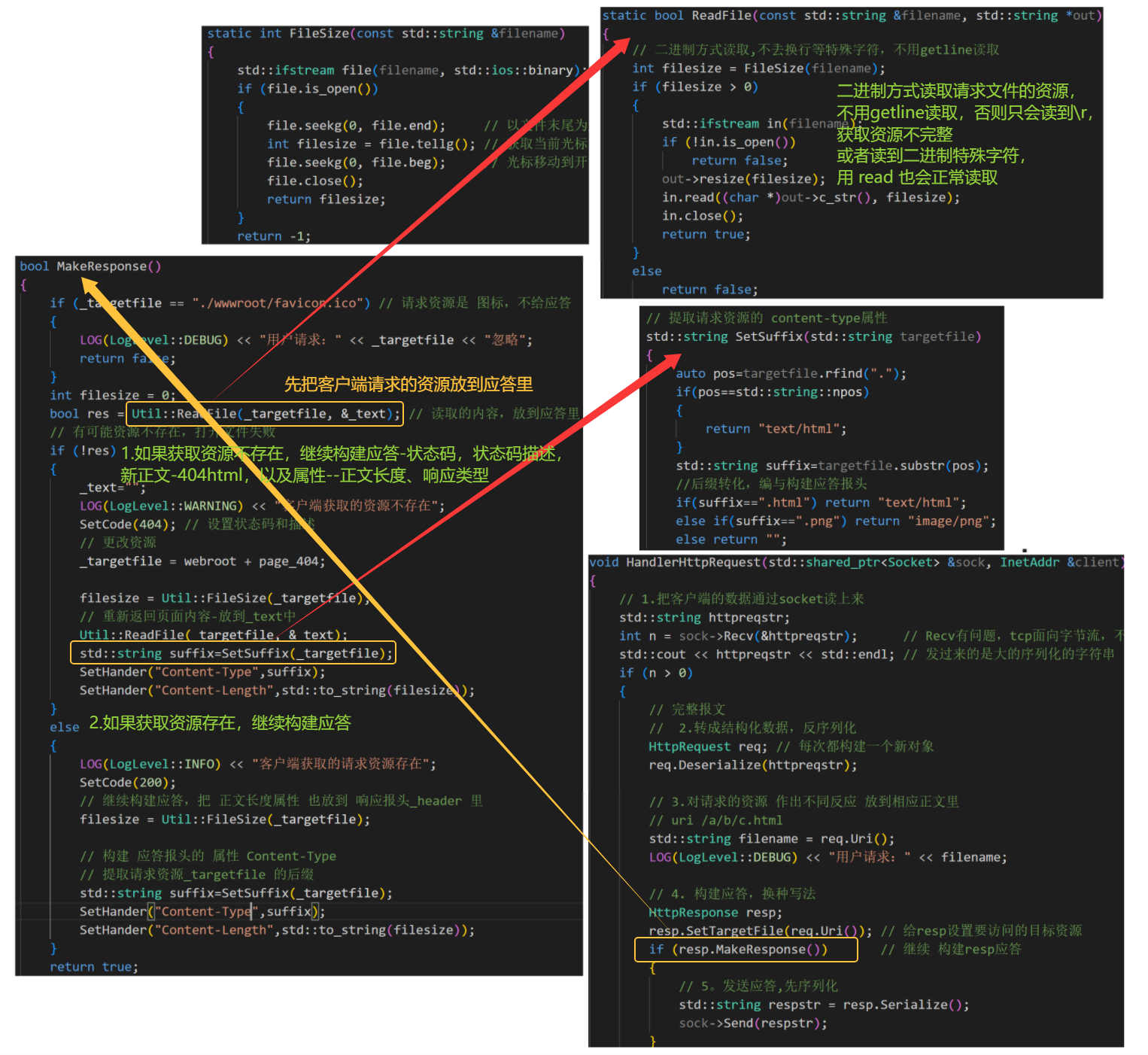

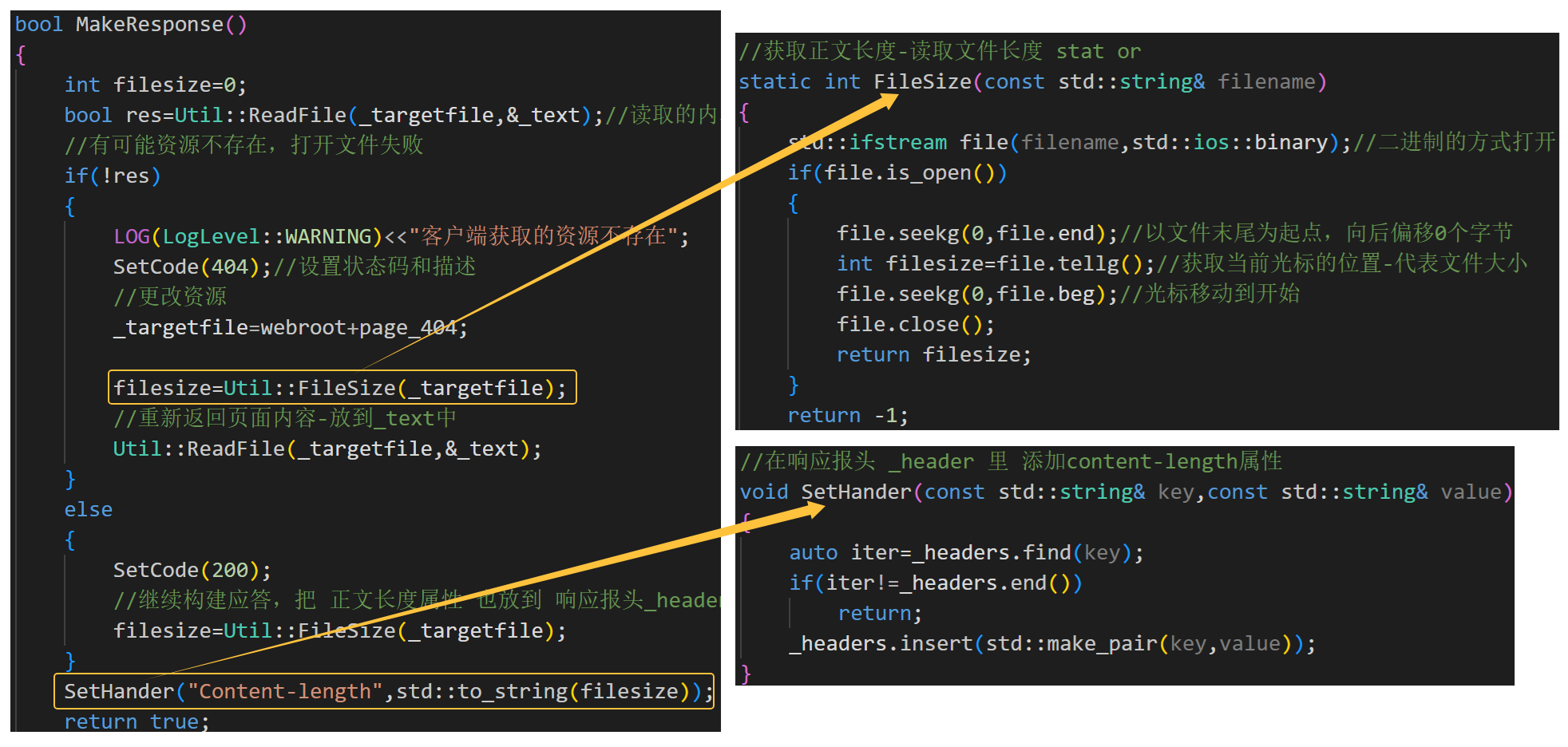

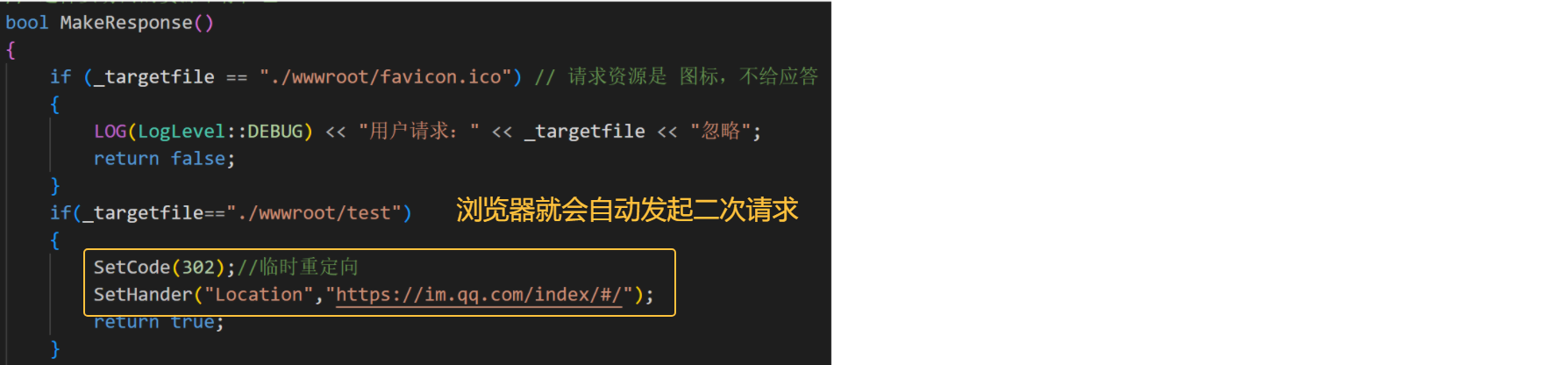

bool MakeResponse()
{
if (_targetfile == "./wwwroot/favicon.ico") // 请求资源是 图标,不给应答
{
LOG(LogLevel::DEBUG) << "用户请求:" << _targetfile << "忽略";
return false;
}

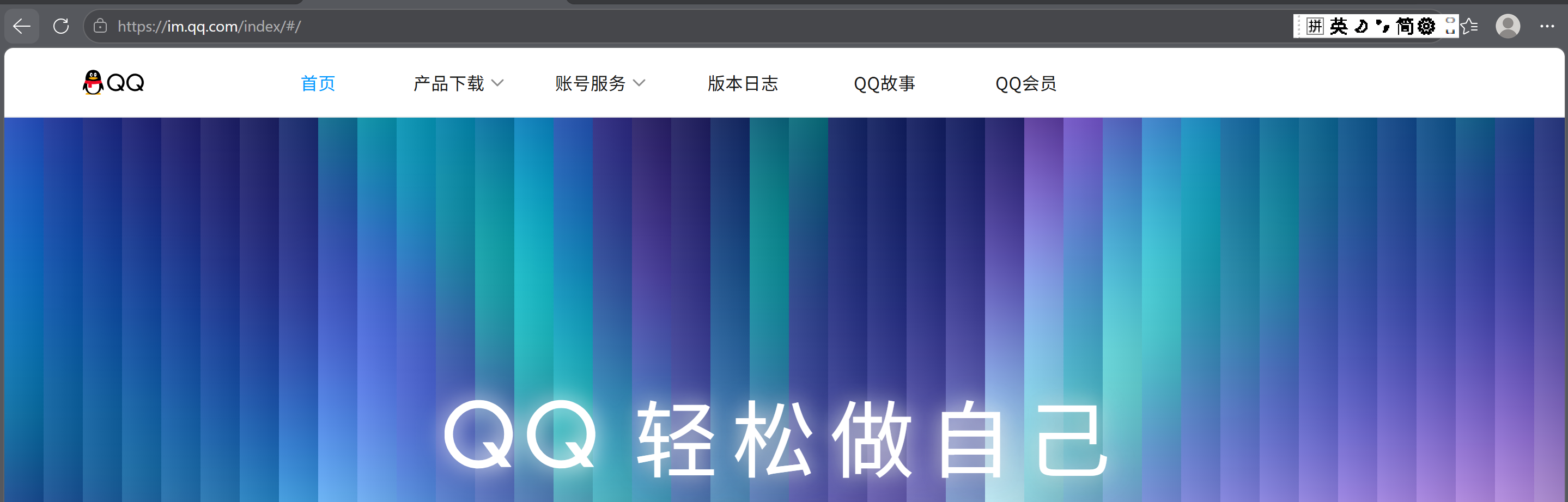

if (_targetfile == "./wwwroot/test")
{
SetCode(302); // 临时重定向
SetHander("Location", "https://im.qq.com/index/#/");
return true;
}
int filesize = 0;
bool res = Util::ReadFile(_targetfile, &_text); // 读取的内容,放到应答里

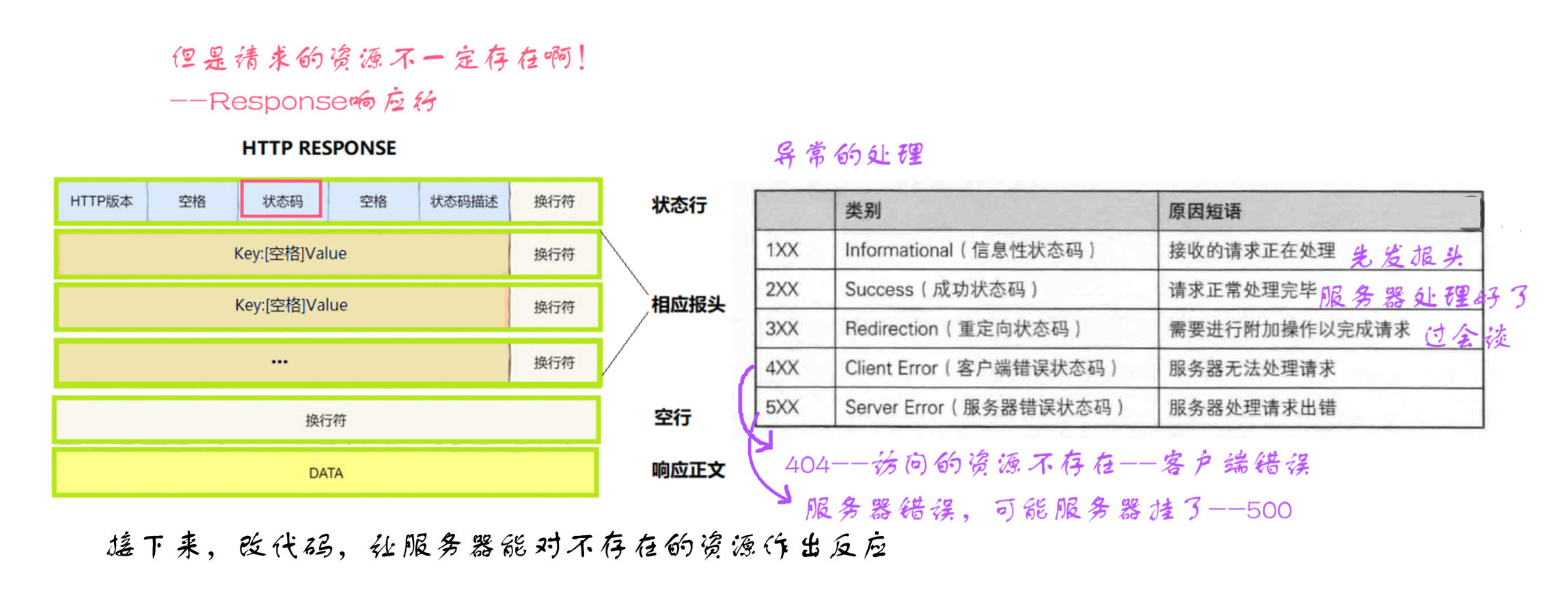

// 有可能资源不存在,打开文件失败
if (!res)
{

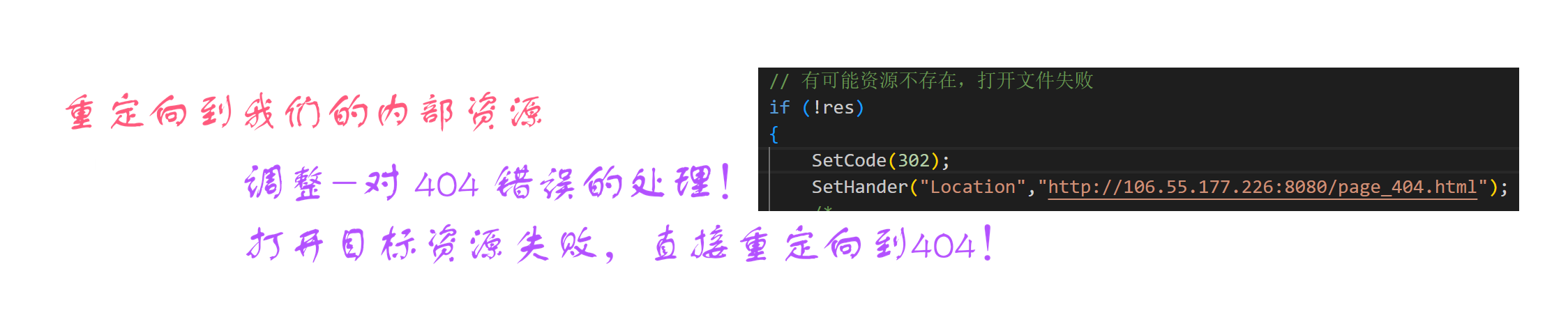

// SetCode(302);
// SetHander("Location","http://106.55.177.226:8080/page_404.html");
_text = "";
LOG(LogLevel::WARNING) << "客户端获取的资源不存在";
SetCode(404); // 设置状态码和描述
// 更改资源
_targetfile = webroot + page_404;
filesize = Util::FileSize(_targetfile);
// 重新返回页面内容-放到_text中
Util::ReadFile(_targetfile, &_text);
std::string suffix = SetSuffix(_targetfile);
SetHander("Content-Type", suffix);
SetHander("Content-Length", std::to_string(filesize));
}
else
{
LOG(LogLevel::INFO) << "客户端获取的请求资源存在";
SetCode(200);
// 继续构建应答,把 正文长度属性 也放到 响应报头_header 里
filesize = Util::FileSize(_targetfile);
// 构建 应答报头的 属性 Content-Type
// 提取请求资源_targetfile 的后缀
std::string suffix = SetSuffix(_targetfile);
SetHander("Content-Type", suffix);
SetHander("Content-Length", std::to_string(filesize));

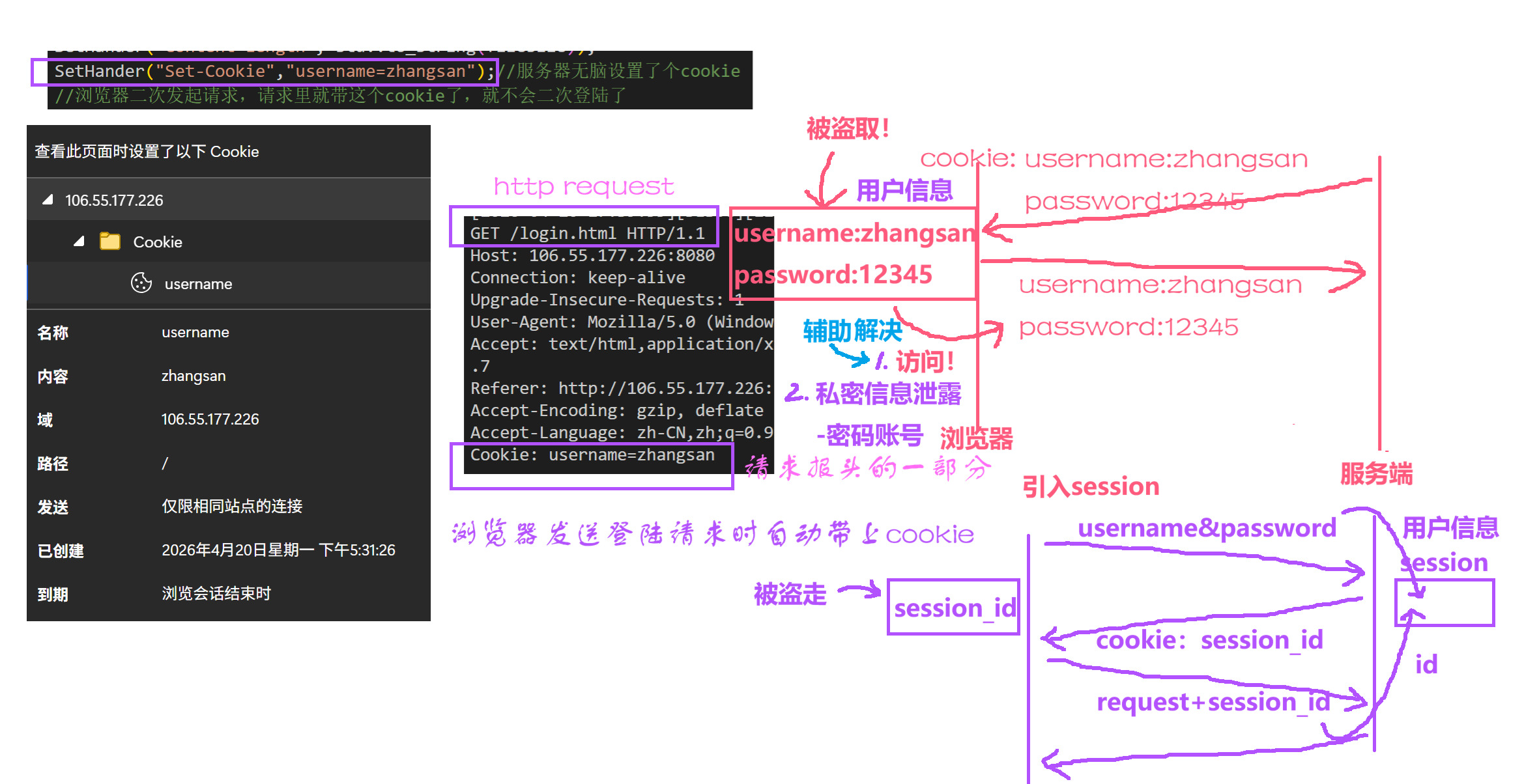

SetHander("Set-Cookie","username=zhangsan");//服务器无脑设置了个cookie
//浏览器二次发起请求,请求里就带这个cookie了,就不会二次登陆了
}
return true;
}
void SetText(const std::string& t)
{
_text=t;
}
~HttpResponse()
{
}
public:
std::string _version; // http的版本
int _code; // 状态码
std::string _desc; // 状态码描述
std::unordered_map<std::string, std::string> _headers; // 响应报头
std::string _blankline; // 空行
std::string _text; // 响应正文
// 其他属性
std::string _targetfile; // 目标要访问的资源
};
using http_func_t = std::function<void(HttpRequest &req, HttpResponse &resp)>;
// http服务器

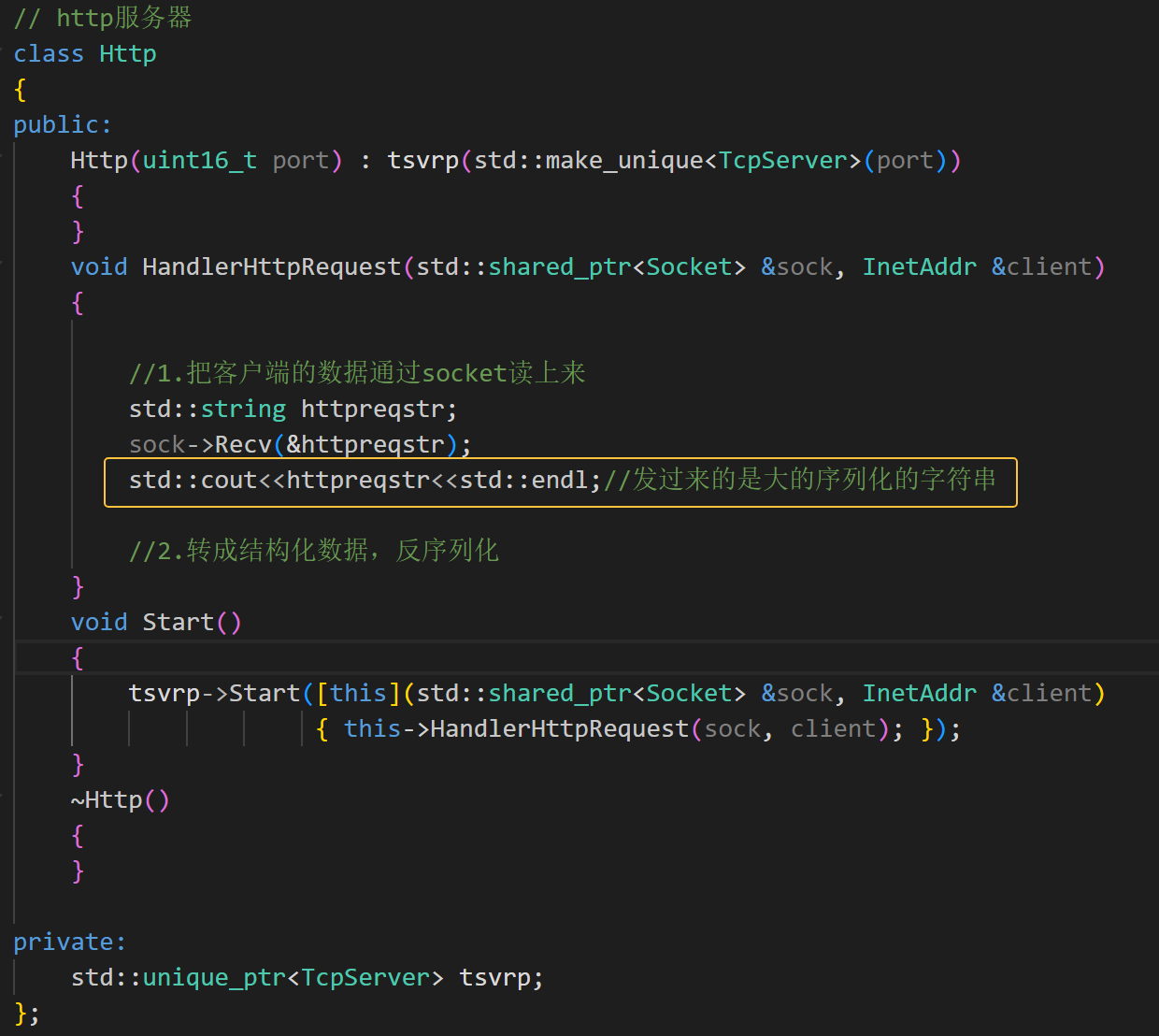

class Http
{
public:
Http(uint16_t port) : tsvrp(std::make_unique<TcpServer>(port))
{
}

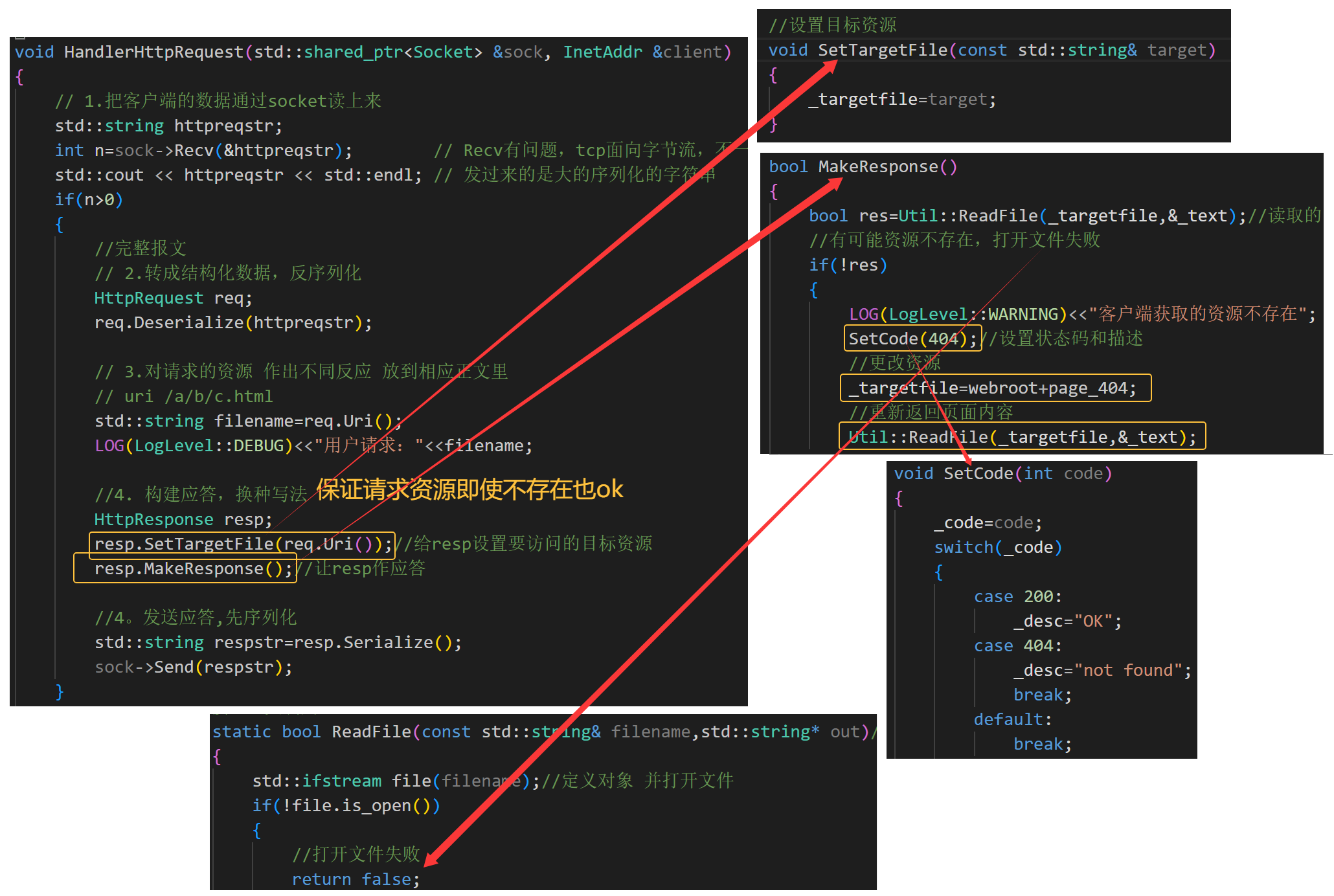

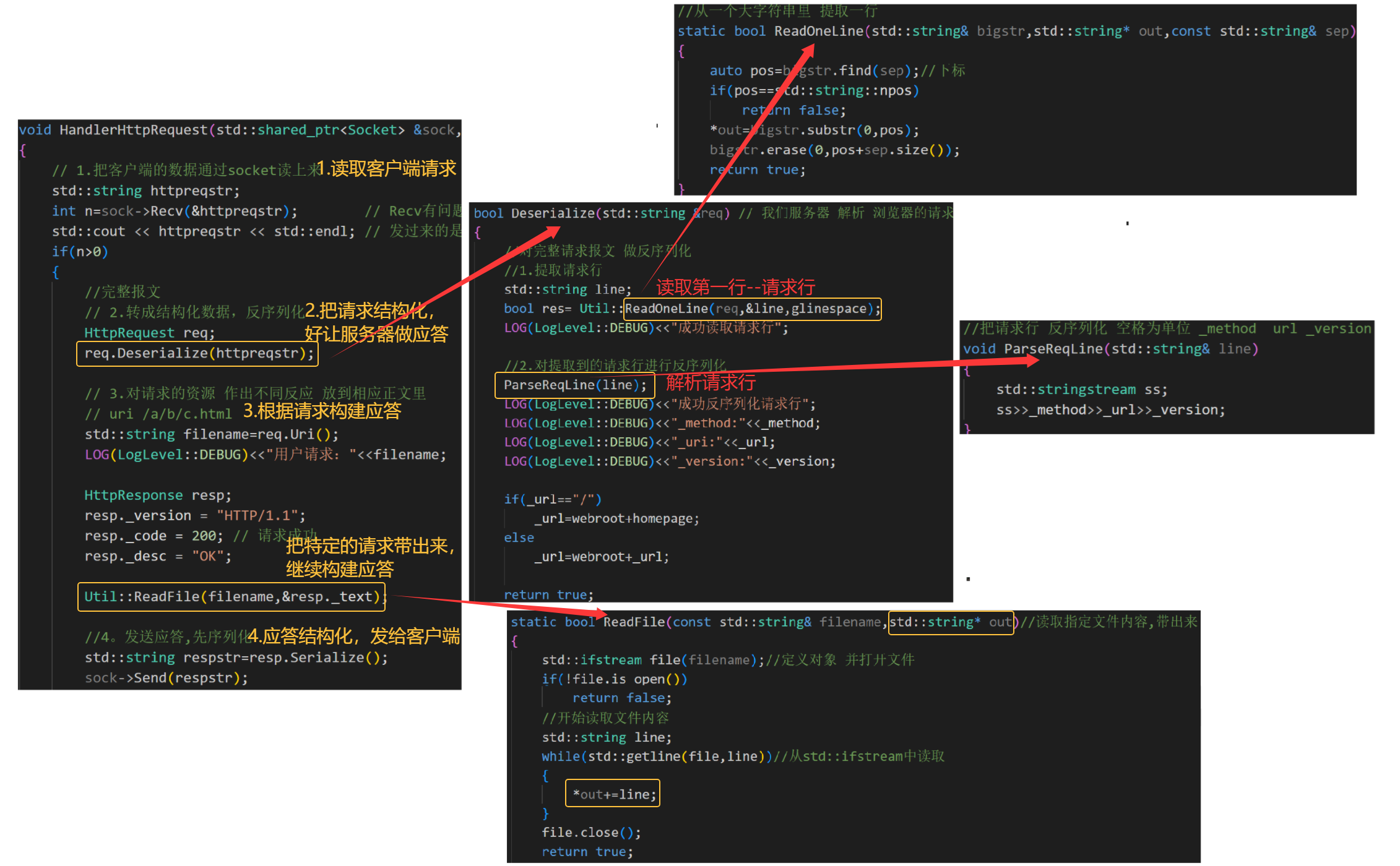

void HandlerHttpRequest(std::shared_ptr<Socket> &sock, InetAddr &client)
{
// 1.把客户端的数据通过socket读上来
std::string httpreqstr;

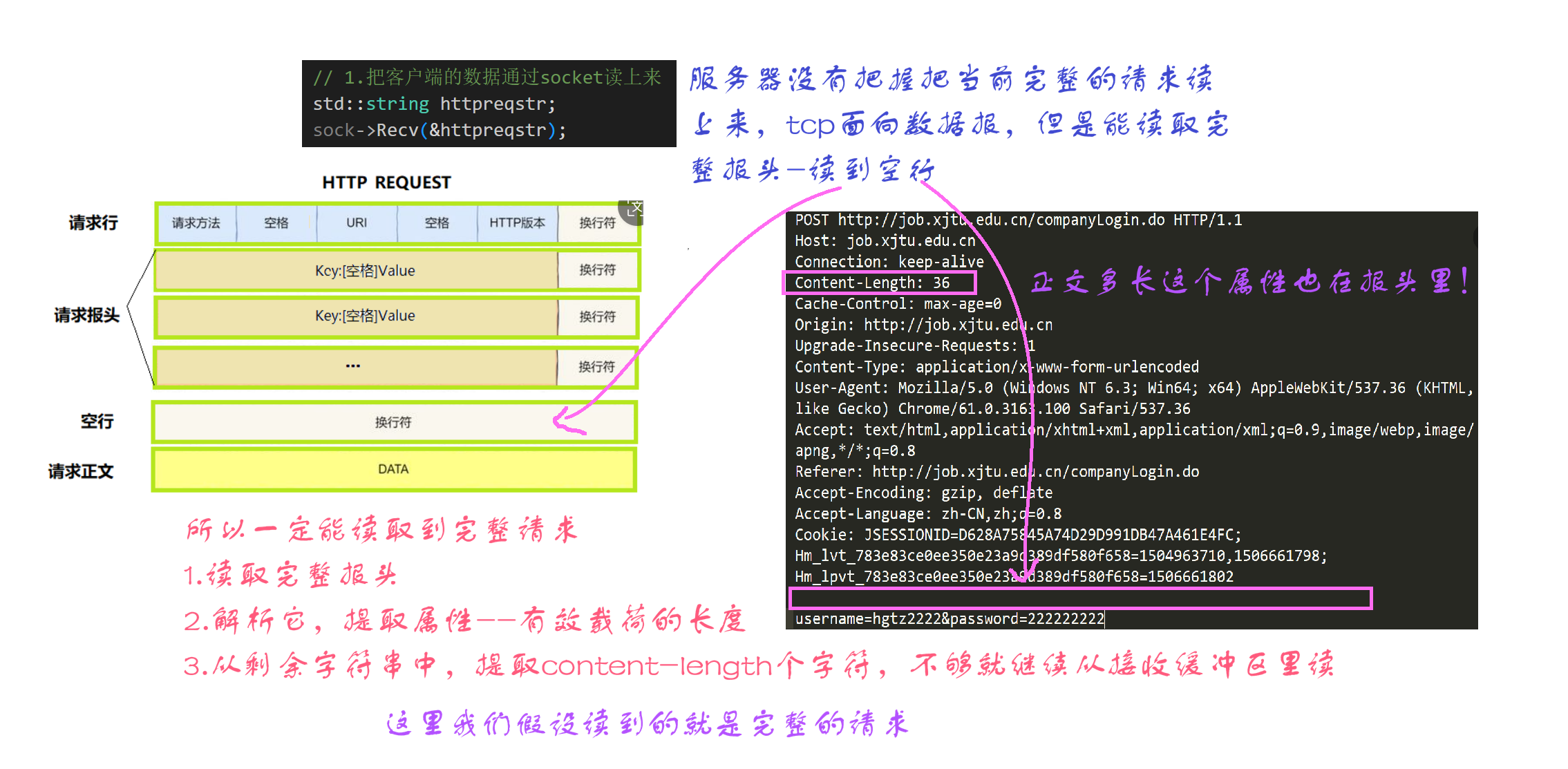

int n = sock->Recv(&httpreqstr); // Recv有问题,tcp面向字节流,不一定是一个完整的请求,这里不做处理
std::cout << httpreqstr << std::endl; // 发过来的是大的序列化的字符串
if (n > 0)
{
// 完整报文
// 2.转成结构化数据,反序列化
HttpRequest req; // 每次都构建一个新对象
req.Deserialize(httpreqstr);
// uri:./wwwroot/login
// args:username=zhangsan&password=12345
// 3.对请求的资源 作出不同反应 放到相应正文里
// uri /a/b/c.html--静态资源
std::string filename = req.Uri();
LOG(LogLevel::DEBUG) << "用户请求:" << filename;
// 4. 构建应答,换种写法
HttpResponse resp;
if (req.IsInteract()) // 需要交互
{
//uri: ./wwwroot/login
if(_handlers.find(req.Uri())==_handlers.end())
{
//setCode(404)
}
else
{
_handlers[req.Uri()](req,resp);//回调完成
//得到一个resp,序列化后发送
std::string respstr = resp.Serialize();
sock->Send(respstr);
}
}
else // 访问静态资源
{
resp.SetTargetFile(req.Uri()); // 给resp设置要访问的目标资源
if (resp.MakeResponse()) // 继续 构建resp应答
{
// 5。发送应答,先序列化
std::string respstr = resp.Serialize();
sock->Send(respstr);
}
}
}
/*
HttpResponse resp;
resp._version = "HTTP/1.1";
resp._code = 200; // 请求成功
resp._desc = "OK";
Util::ReadFile(filename,&resp._text);
*/
/*
// 直接构建应答看现象,内存级别
HttpResponse resp;
resp._version = "HTTP/1.1";
resp._code = 200; // 请求成功
resp._desc = "OK";
// 正文一般是网页

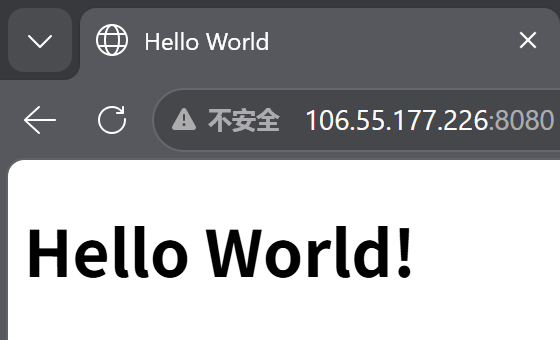

//先直接返回首页
std::string file=webroot+homepage; //访问的资源
Util::ReadFile(file,&resp._text);//把文件读取,填写正文
// 3.结构化应答 序列化之后,再发给浏览器
std::string response_str = resp.Serialize();
sock->Send(response_str);
*/
}
void Start()
{
tsvrp->Start([this](std::shared_ptr<Socket> &sock, InetAddr &client)
{ this->HandlerHttpRequest(sock, client); });
}
void Register(const std::string name, http_func_t h)
{
// ./wwwroot/login
std::string key = webroot + name;
auto iter = _handlers.find(key);
if (iter == _handlers.end())
{
_handlers.insert(std::make_pair(key, h));
}
}
~Http()
{
}
private:
std::unique_ptr<TcpServer> tsvrp;
std::unordered_map<std::string, http_func_t> _handlers;
};
Util.hpp
#pragma once
// 工具类
#include <iostream>
#include <string>
#include <fstream>
class Util
{
public:
// 直接通过类调用 Util::ReadFile,

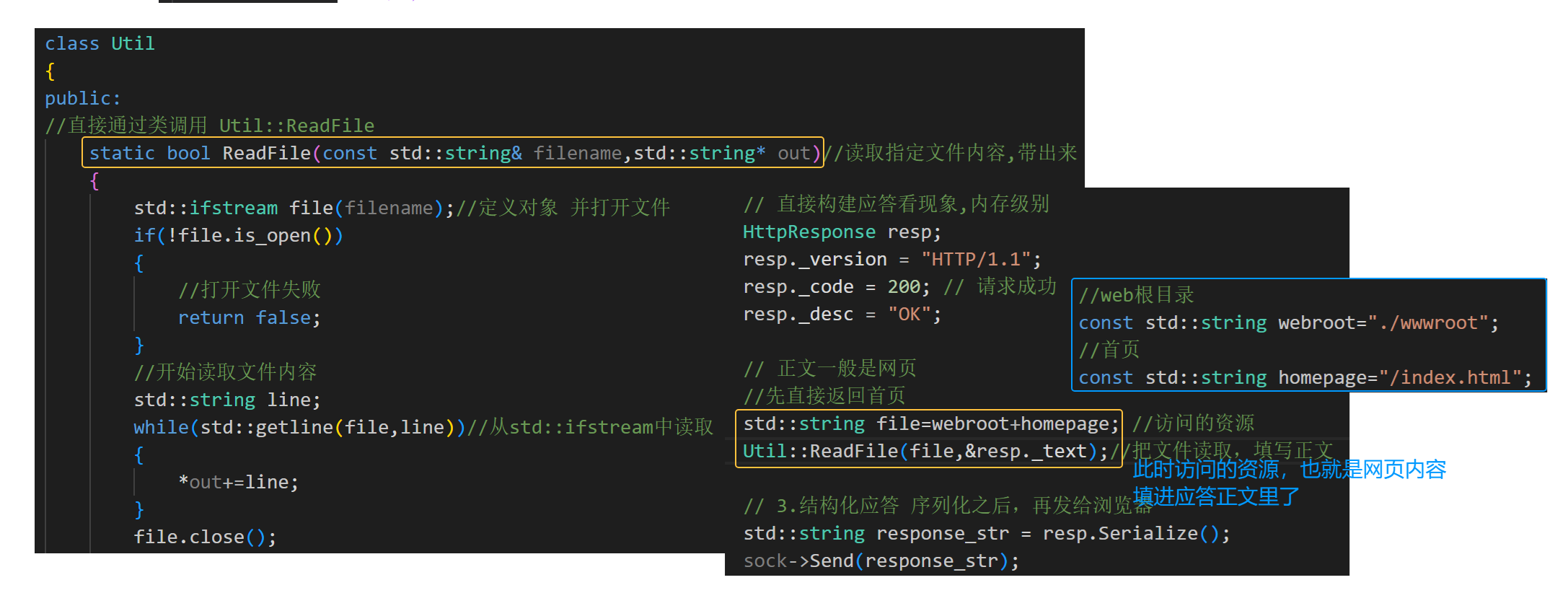

static bool ReadFile(const std::string &filename, std::string *out) // 读取指定文件内容,带出来
{
// 二进制方式读取,不丢换行等特殊字符,不用getline读取
int filesize = FileSize(filename);
if (filesize > 0)
{
std::ifstream in(filename);
if (!in.is_open())
return false;
out->resize(filesize);
in.read((char *)out->c_str(), filesize);
in.close();
return true;
}
else
return false;
/*
std::ifstream file(filename);//定义对象 并打开文件
if(!file.is_open())
{
//打开文件失败
return false;
}
//开始读取文件内容
std::string line;
while(std::getline(file,line))//从std::ifstream中读取
{
*out+=line;
}
file.close();
return true;
*/
}
// 从一个大字符串里 提取一行
static bool ReadOneLine(std::string &bigstr, std::string *out, const std::string &sep)
{
auto pos = bigstr.find(sep); // 下标
if (pos == std::string::npos)
return false;
*out = bigstr.substr(0, pos);
bigstr.erase(0, pos + sep.size());
return true;
}
// 获取正文长度-读取文件长度 stat or
static int FileSize(const std::string &filename)
{
std::ifstream file(filename, std::ios::binary); // 二进制的方式打开
if (file.is_open())
{
file.seekg(0, file.end); // 以文件末尾为起点,向后偏移0个字节
int filesize = file.tellg(); // 获取当前光标的位置-代表文件大小
file.seekg(0, file.beg); // 光标移动到开始
file.close();
return filesize;
}
return -1;
}
private:
};
Main.cc
#include "Http.hpp"
//登陆功能 login

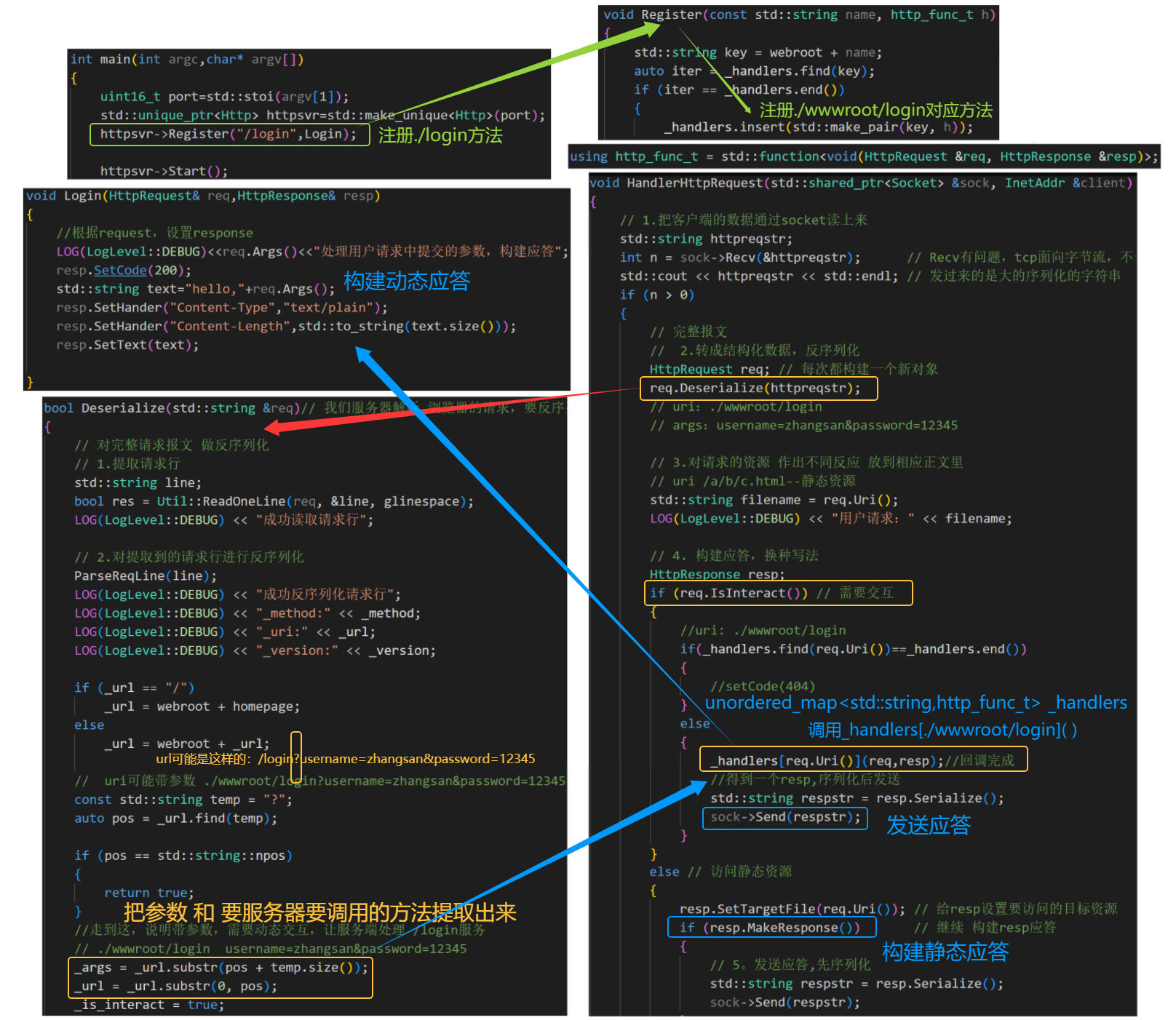

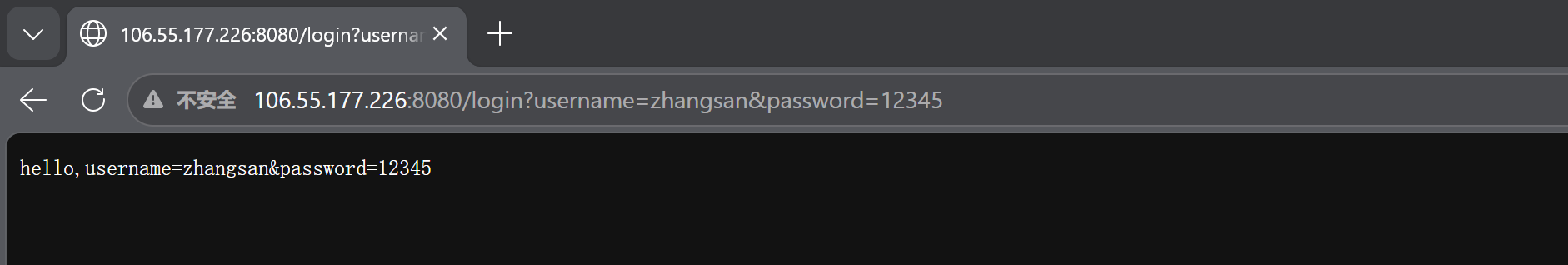

void Login(HttpRequest& req,HttpResponse& resp)
{
//根据request,设置response
LOG(LogLevel::DEBUG)<<req.Args()<<"处理用户请求中提交的参数,构建应答";
resp.SetCode(200);
std::string text="hello,"+req.Args();
resp.SetHander("Content-Type","text/plain");
resp.SetHander("Content-Length",std::to_string(text.size()));
resp.SetText(text);
}
//./httpserver port
int main(int argc,char* argv[])
{
uint16_t port=std::stoi(argv[1]);
std::unique_ptr<Http> httpsvr=std::make_unique<Http>(port);
httpsvr->Register("/login",Login);
httpsvr->Start();
}
完。
